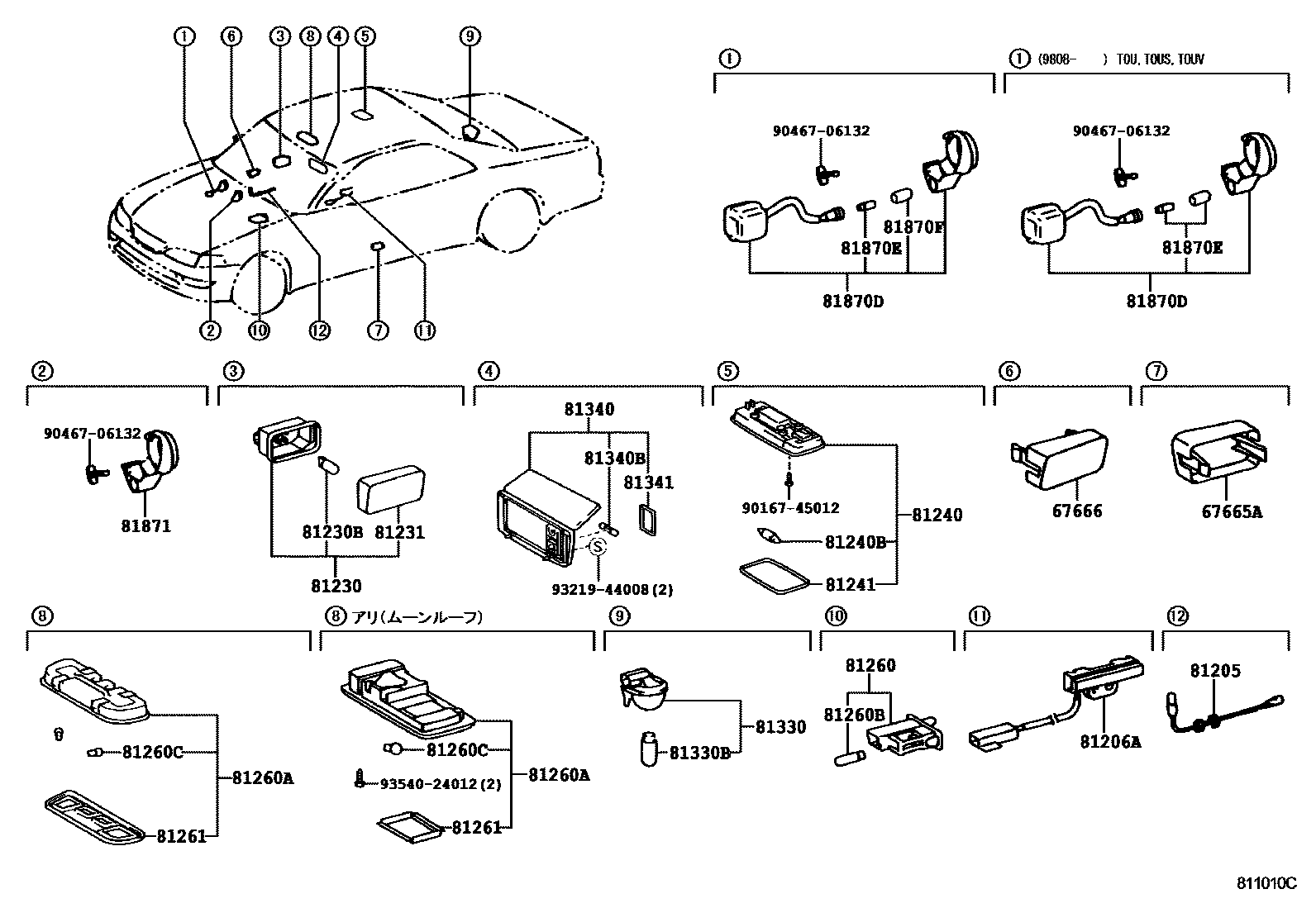

Toyota CHASER — INTERIOR LAMP
67665AREFLECTOR, FRONT DOOR TRIM, RH
67666REFLECTOR, FRONT DOOR TRIM, LH
81205LAMP SUB-ASSY, ASH RECEPTACLE
81206ALAMP SUB-ASSY, CONSOLE BOX
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
BLUE GRAY,TRIM1#
ORCHID,TRIM4#
SAGE,TRIM6#
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
BLUE GRAY,TRIM1#
ORCHID,TRIM4#
SAGE,TRIM6#
BLUE GRAY,TRIM2#
ORCHID,TRIM4#
SAGE,TRIM6#
81260BBULB(FOR GLOVE BOX)
81260CBULB(FOR MAP LAMP)
81261LENS AND COVER, MAP LAMP
BLUE GRAY,TRIM2#
ORCHID,TRIM4#
SAGE,TRIM6#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
81341LENS, VANITY LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
81870FCAP, KEY CYLINDER LAMP BULB
81871LENS, KEY ILLUMINATION
9016745012
main90167-45012
9046706132
main90467-06132
9321944008
main93219-44008
9354024012
main93540-24012
28 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota CHASER
This section contains 28 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CHASER. Key components include: REFLECTOR, FRONT DOOR TRIM, RH, REFLECTOR, FRONT DOOR TRIM, LH, LAMP SUB-ASSY, ASH RECEPTACLE, LAMP SUB-ASSY, CONSOLE BOX, LAMP ASSY, COURTESY.
