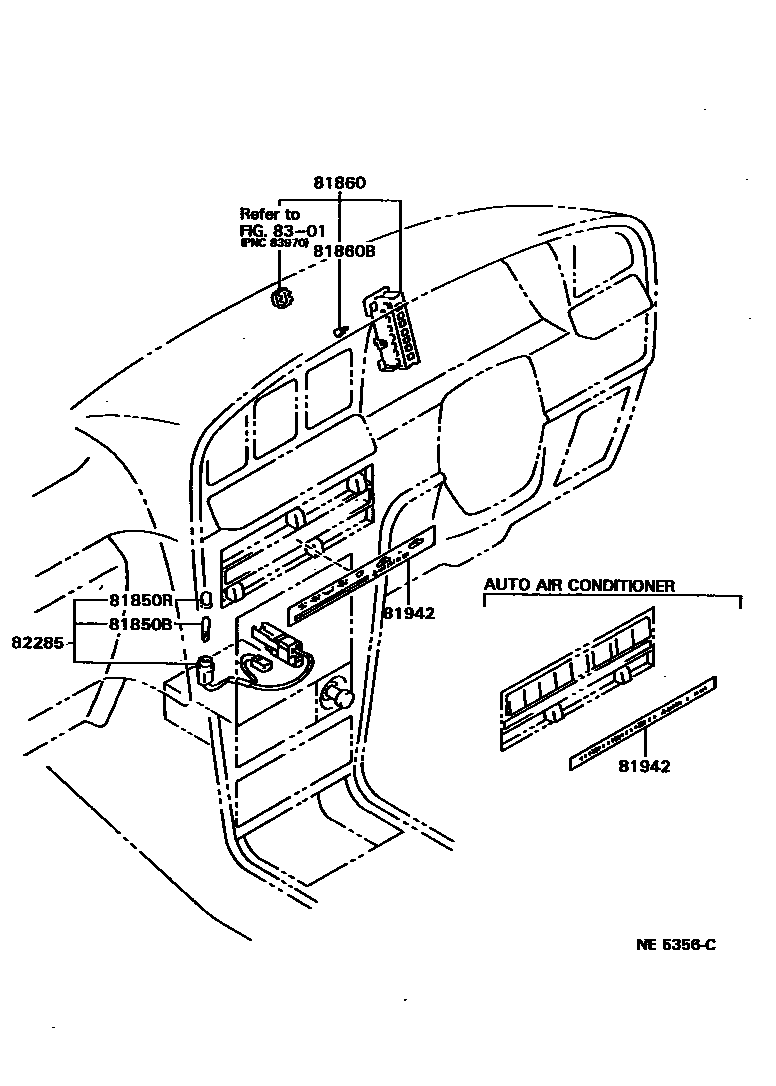

Toyota CHASER — INDICATOR

81850BBULB, INDICATOR LAMP

main90981-11014iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

81850RCAP BULB

main84998-10530iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-22020iJZX81..TWC;GX81,LX80,SX80..4FC198808-199210

sub81860-32040

main81860-22030iYX80..3FC198808-199210

main81860-22050iGX81,LX80,SX80,YX80..5F198808-199210

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-50180×7iJZX81..TWC;GX81,LX80,SX80..4FC198808-199210

main84999-50190iJZX81..TWC;GX81,LX80,SX80..4FC198808-199210

81942SHEET, HEATER CONTROL NAME

main81942-22020iGX81,LX80,SX80..SXL,XG198808-199008

main81942-22040iLX80,SX80,YX80..KYO,XL198808-199210

82285WIRE, ILLUMINATION

main82285-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

8301

7 parts on this diagram · 1 diagram in section
