Toyota CHASER — INDICATOR

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11034iGX6#,LX60,MX61,RX60,TX60..ATM198009-198208

main99132-12034iGX61,LX6#,MX61,SX60..4FC198208-198407

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-14010iGX6#,LX60,MX61,RX60,TX60..ATM198009-198208

main35906-22040iGX61,LX6#,MX61,SX60..4FC198208-198407

81931LENS, HEATER CONTROL INDICATOR

main55519-22040iGX6#,LX60,MX61,RX6#,TX60..SED..(DLX,GT,SGT,SXL,XG,XL)198009-198208

main55519-22041iGX61,LX6#,MX61,SX60..SED..(DLX,SGT,STD,SXL,XG,XL)198208-198407

main55519-22060iGX6#..SED198009-198208

W/AUTOMATIC AIR CONDITIONER

main55519-22090iGX61,MX61..HT..AVT198208-198407

W/AUTOMATIC AIR CONDITIONER

main55519-22100iGX61,MX61..SED..AVT198208-198407

W/AUTOMATIC AIR CONDITIONER

main55519-22110iGX61,LX65,MX61..SED..(SGT,SXL)198208-198407

W/AUTOMATIC AIR CONDITIONER

main81940-22010iGX6#,MX61,RX6#,TX60..HT..(GT,SGT,SXL,XG,XL)198009-198208

main81940-22011iGX61,MX61,SX60..HT..(SGT,SXL,XG,XL)198208-198407

main81940-22020iMX61..HT..AVT198110-198208

main81940-22030iGX61,MX61..HT..(SGT,SXL)198208-198407

W/AUTOMATIC AIR CONDITIONER

81931ACOVER, COOLER SWITCH HOLE

main55538-22020iGX6#,MX61,RX60,SX60,TX60..HT..(SGT,SXL,XG,XL)198009-198407

main55538-22030iGX6#,LX6#,MX61,RX60,SX60,TX60..SED..(DLX,SGT,STD,SXL,XG,XL)198009-198407

89581CLUSTER, CRUISE PILOT COMPUTER DISPLAY

main89581-22020iMX61..SED..AVT198110-198208

main89581-22021iGX61..SED..TWC198208-198407

W/*DS

main89581-22030iGX61..HT..AVT198009-198208

main89581-22031iGX61..HT..AVT..EFI198208-198407

W/*DS

main89581-22040iMX61..HT..AVT198110-198208

main89581-22041iGX61..HT..TWC198208-198407

W/*DS

main89581-22060iGX61..SED..AVT198009-198208

main89581-22061iGX61..SED..AVT..EFI198208-198407

W/*DS

89582KEYBOARD, CRUISE PILOT COMPUTER

main89582-22010iGX61,MX61..AVT198009-198208

main89582-22011iGX61..AVT198208-198407

89584COVER, CRUISE PILOT COMPUTER KEYBOARD

main89584-22010iGX61..AVT198208-198407

89670COMPUTER ASSY, TELLTALE WARNING(FOR SPEAK MONITOR)

main89670-22010iGX61..AVT198012-198208

9016750001

main90167-50001

9017906007

main90179-06007

9356054014

main93560-54014

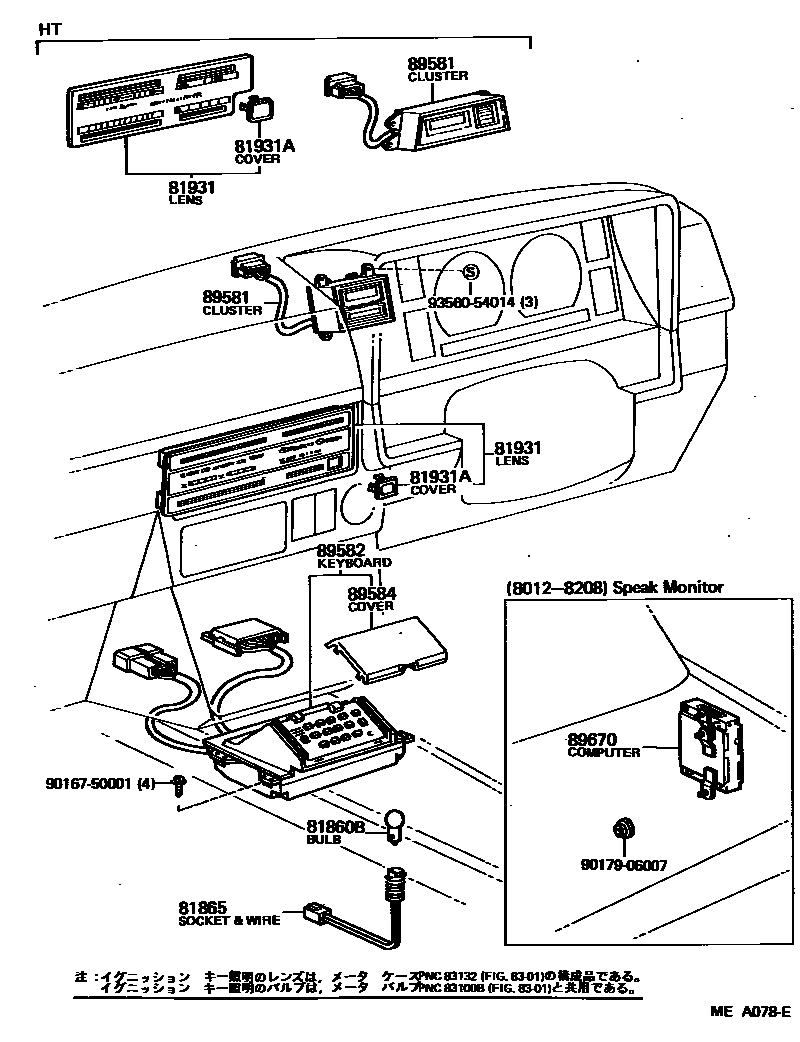

11 parts on this diagram · 1 diagram in section
