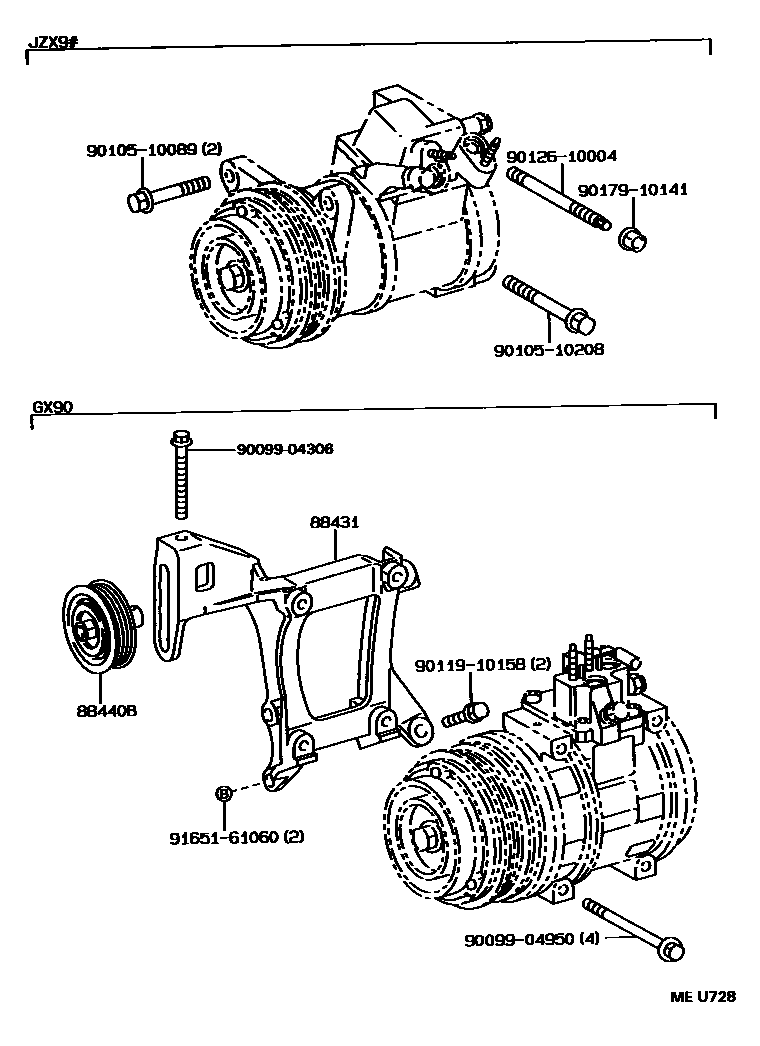

Toyota CHASER — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22260iGX90199210-199609

main88431-22331iLX90199210-199609

88440BPULLEY ASSY, IDLE

main88440-17010iGX90199210-199609

main88440-26070iLX90199210-199609

9009904306

main90099-04306

9009904950

main90099-04950

9010510089

main90105-10089

9010510208

main90105-10208

9011910158

main90119-10158

9012610004

main90126-10004

9017910141

main90179-10141

9165161060

main91651-61060

10 parts on this diagram · 3 diagrams in section
