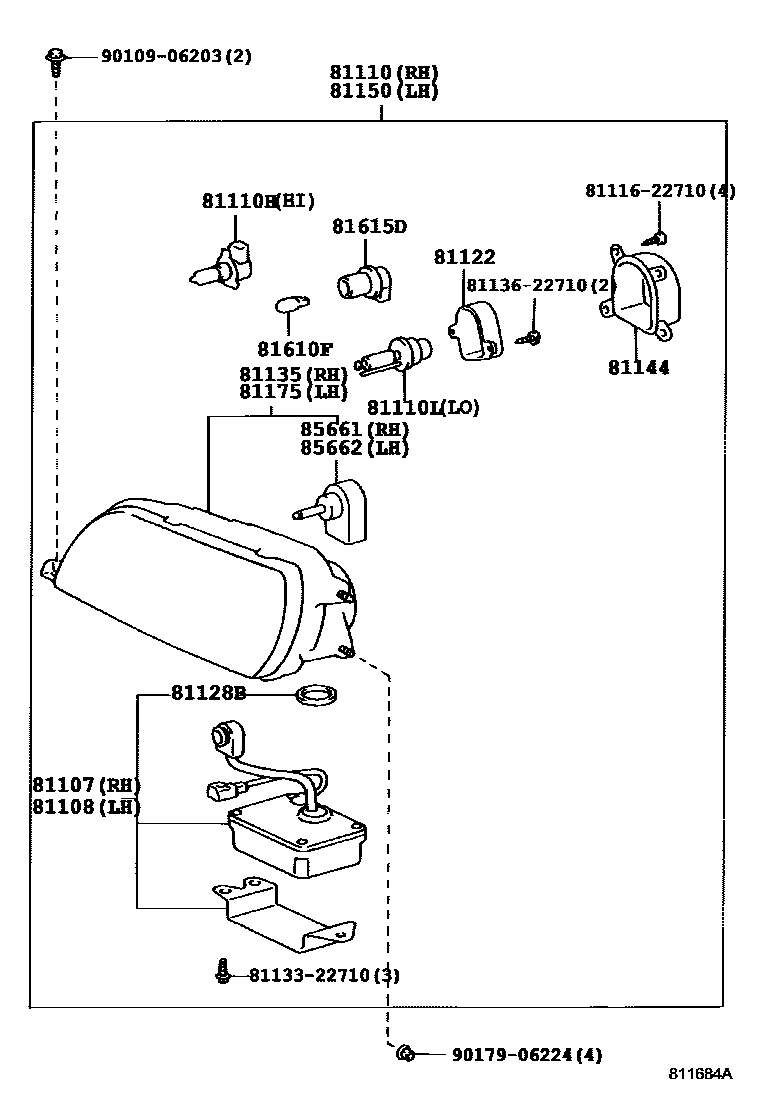

Toyota CHASER — HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110HEADLAMP ASSY, RH
81110HBULB, HEADLAMP, NO.3
81110LBULB, DISCHARGE HEADLAMP
81122HOLDER, HEADLAMP
81128BPACKING, HEADLAMP (FOR BALLAST)
81135UNIT ASSY, HEADLAMP, RH
81144COVER, HEADLAMP, NO.1
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
8111622710COVER, SEALED BEAM UNIT
main81116-22710
8113322710UNIT ASSY, FOG, RH
main81133-22710
8113622710PROTECTOR, HEADLAMP, NO.1 RH
main81136-22710
9010906203
main90109-06203
9017906224
main90179-06224
20 parts on this diagram · 3 diagrams in section
HEADLAMP for Toyota CHASER
This section contains 21 genuine Toyota parts for the HEADLAMP system of the Toyota CHASER. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB, HEADLAMP, NO.3.
