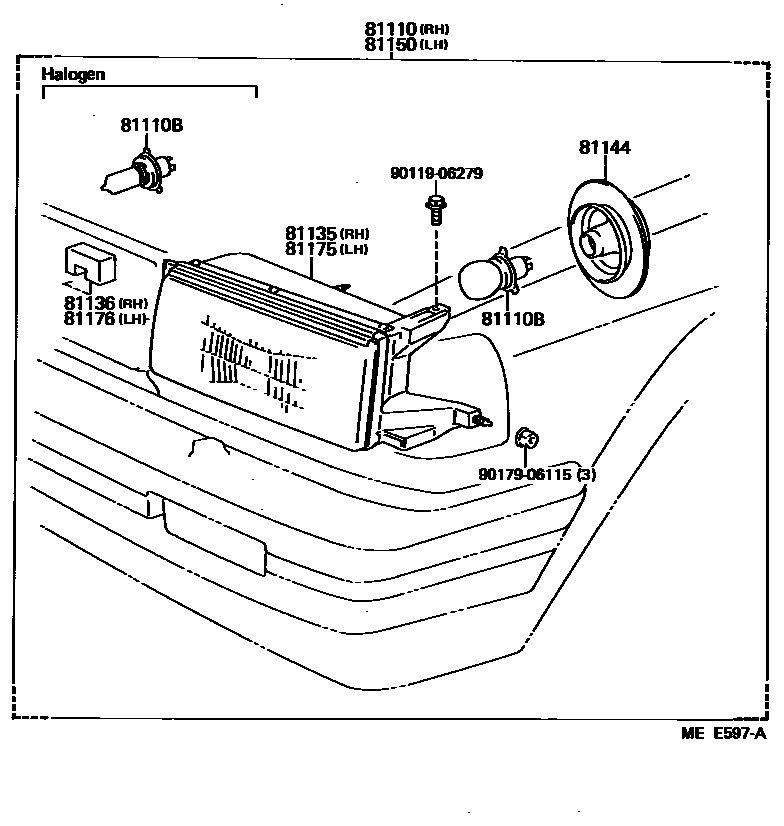

Toyota CHASER — HEADLAMP
81110HEADLAMP ASSY, RH
*30
81110BBULB(FOR HEADLAMP, NO.1)
81135UNIT ASSY, HEADLAMP, RH
*30
81136PROTECTOR, HEADLAMP, NO.1 RH
81144COVER, HEADLAMP, NO.1
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81176PROTECTOR, HEADLAMP, NO.1 LH
9011906279
main90119-06279
9017906115
main90179-06115
10 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota CHASER
This section contains 13 genuine Toyota parts for the HEADLAMP system of the Toyota CHASER. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), PACKING, HEADLAMP HOUSING, UNIT ASSY, HEADLAMP, RH, PROTECTOR, HEADLAMP, NO.1 RH.
