Toyota CHASER — HEADLAMP

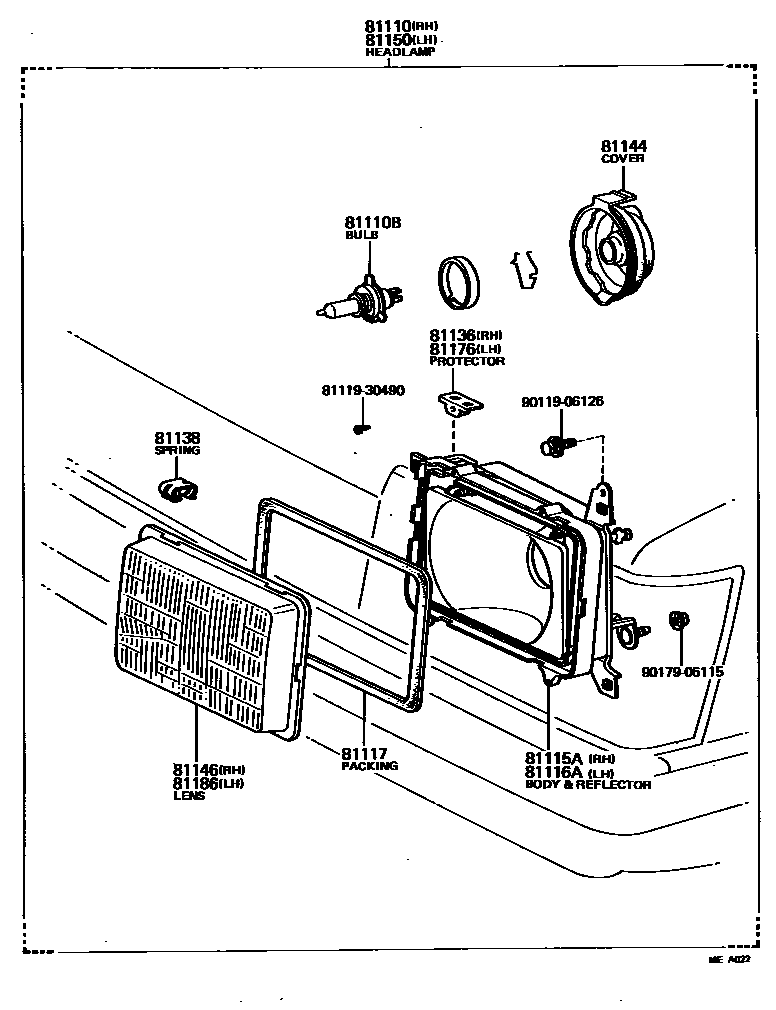

Parts diagram

81110HEADLAMP ASSY, RH

main81110-80096i198009-198208

main81110-80239i198208-198407

main81110-80241i198208-198407

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i198009-198407

81115ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH

main81115-22370i198009-198208

main81135-22411i198208-198407

main81135-95801i198208-198407

81116ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH

main81116-22370i198009-198208

main81175-22411i198208-198407

main81175-95801i198208-198407

81117PACKING, HEADLAMP HOUSING

main81147-30490×2i198009-198208

main81147-32020×2i198208-198407

main81147-95801×2i198208-198407

81136PROTECTOR, HEADLAMP, NO.1 RH

main81136-22370×2i198009-198208

81138SPRING, HEADLAMP

main81138-20550×16i198009-198407

81144COVER, HEADLAMP, NO.1

main81139-30481×2i198208-198407

main81139-30490×2i198009-198208

81146LENS, HEADLAMP, RH

main81146-30490i198009-198208

main81146-32020i198208-198407

main81146-95801i198208-198407

81150HEADLAMP ASSY, LH

main81150-80093i198009-198208

main81150-80236i198208-198407

main81150-80238i198208-198407

81176PROTECTOR, HEADLAMP, NO.1 LH

main81136-22370×2i198009-198208

81186LENS, HEADLAMP, LH

main81186-30600i198009-198208

main81186-32020i198208-198407

main81186-95801i198208-198407

8111930490SCREW, HEADLAMP

main81119-30490

9011906126

main90119-06126

9017906115

main90179-06115

15 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota CHASER

This section contains 26 genuine Toyota parts for the HEADLAMP system of the Toyota CHASER. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH, BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH, PACKING, HEADLAMP HOUSING.
