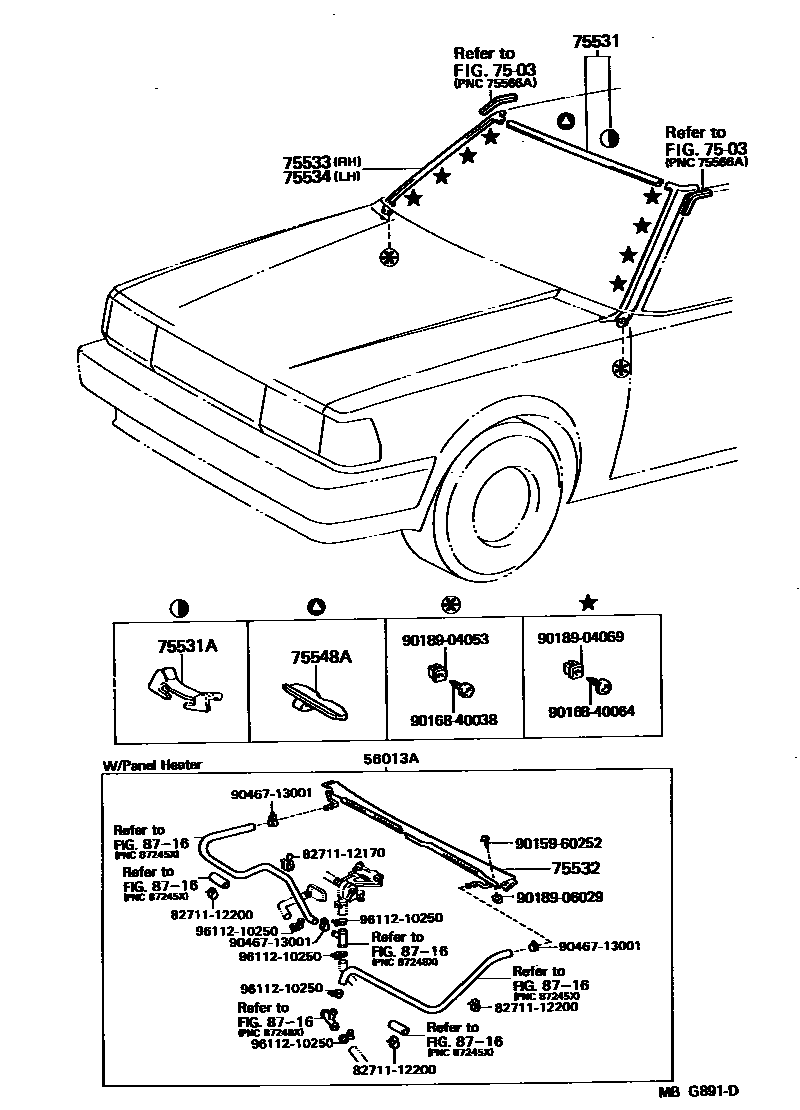

Toyota CHASER — FRONT MOULDING
56013AMOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER
7503SIDE MOULDING
75531MOULDING, WINDSHIELD, OUTER UPPER
75531ACLIP, WINDSHIELD MOULDING SET, NO.1
75532MOULDING, WINDSHIELD, LOWER
W/PANEL HEATER
75533MOULDING, WINDSHIELD, OUTSIDE RH
75534MOULDING, WINDSHIELD, OUTSIDE LH
75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
8716HEATING & AIR CONDITIONING - WATER PIPING
8271112170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12170
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9015960252
main90159-60252
9016840038
main90168-40038
9016840064
main90168-40064
9018904053
main90189-04053
9018904069
main90189-04069
9018906029
main90189-06029
9046713001
main90467-13001
9611210250
main96112-10250
19 parts on this diagram · 1 diagram in section
FRONT MOULDING for Toyota CHASER
This section contains 19 genuine Toyota parts for the FRONT MOULDING system of the Toyota CHASER. Key components include: MOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER, SIDE MOULDING, MOULDING, WINDSHIELD, OUTER UPPER, CLIP, WINDSHIELD MOULDING SET, NO.1, MOULDING, WINDSHIELD, LOWER.
