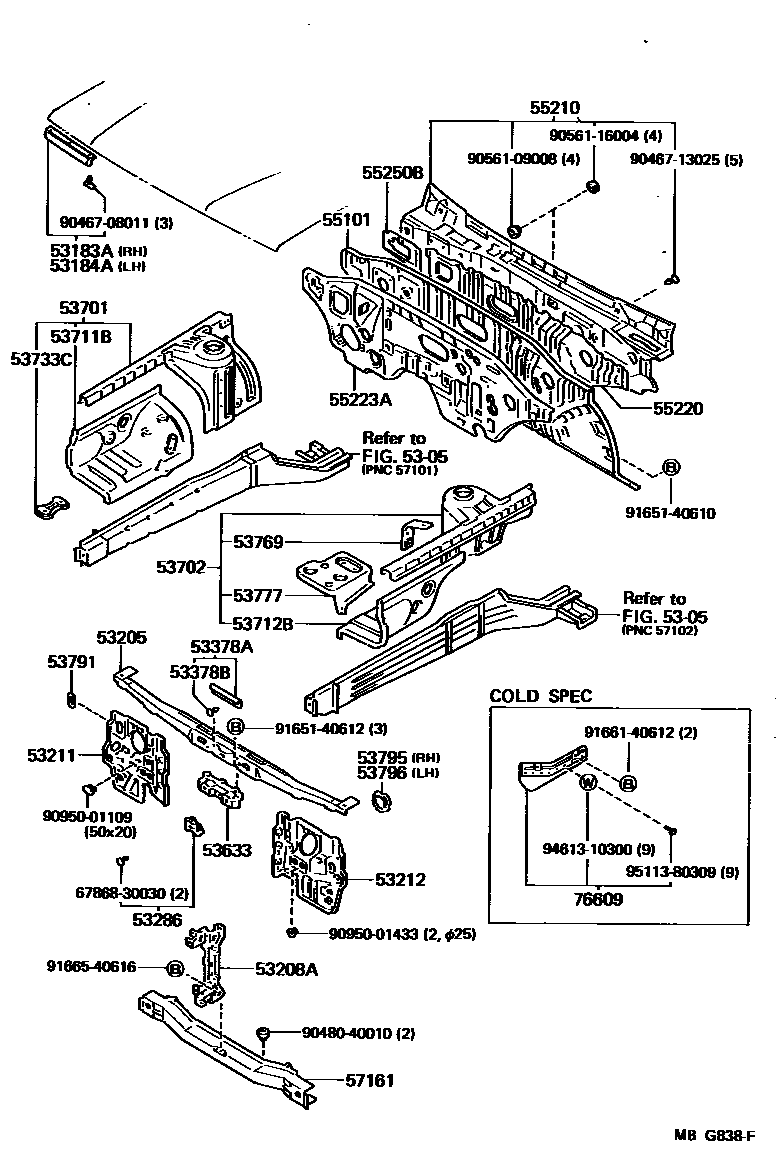

Toyota CHASER — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5305

53183ASEAL, HEADLAMP COVER, RH

main53183-91601iGX71,LX70,MX71,SX70,YX70198408-198608

main53183-91602iGX71,LX70,MX71,SX70,YX70198505-198608

COLD SPEC

main53183-91603iGX71,LX70,SX70,YX72198608-198808

main53183-91604iGX71,LX70,SX70,YX72198608-198808

COLD SPEC

53184ASEAL, HEADLAMP COVER, LH

main53183-91601iGX71,LX70,MX71,SX70,YX70198408-198608

main53183-91602iGX71,LX70,MX71,SX70,YX70198505-198608

COLD SPEC

main53183-91603iGX71,LX70,SX70,YX72198608-198808

main53183-91604iGX71,LX70,SX70,YX72198608-198808

COLD SPEC

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-22040iGX71,LX70,MX71,SX70,YX7#198408-198808

sub53205-22050

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-22080iGX71,LX70,SX70,YX72198608-198808

main53215-22010iGX71,LX70,MX71,SX70,YX70198408-198608

53211SUPPORT, RADIATOR, RH

main53211-22190iGX71,LX70,MX71,SX70,YX70198408-198608

main53211-22191iGX71,LX70,SX70,YX72198608-198808

53212SUPPORT, RADIATOR, LH

main53212-22120iGX71,LX70,MX71,SX70,YX70198408-198608

main53212-22121iGX71,LX70,SX70,YX72198608-198808

53286COVER, FRONT BUMPER ARM HOLE

main53285-22020iGX71,LX70..EFI,TD,TWC,TWT198608-198808

RH

main53286-22010iGX71,LX70..EFI,TD,TWC,TWT198608-198808

LH

53378ASEAL, HOOD AIR INTAKE DUCT

main53378-22010iLX70198408-198808

53378BCLIP(FOR HOOD AIR INTAKE DUCT SEAL)

main90467-08011×2iLX70198408-198808

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-22020iGX71,LX70,MX71,SX70,YX7#198408-198704

main53633-22030iGX71,LX70,SX70,YX72198704-198808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-22390iGX71,MX71198408-198808

sub53701-22410

main53701-22400iSX70,YX7#198408-198808

W/POWER STEERING

main53701-22470iSX70,YX70..KYO,XL198408-198808

main53701-22520iLX70198408-198808

W/POWER STEERING

sub53701-22410

main53701-22530iLX70..KYO198408-198808

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-22400iLX70..KYO198608-198808

W/POWER STEERING

main53702-22430iSX70,YX7#..KYO,XL198408-198808

main53702-22470iLX70..KYO198408-198808

main53702-22480iSX70,YX72198608-198808

W/POWER STEERING

main53702-22520iGX71..TWC198608-198808

W/QUICK HAND WARMER

53711BAPRON, FRONT FENDER, FRONT RH

main53711-22320iGX71,LX70,MX71,SX70198408-198808

main53711-22340iYX7#198408-198808

53712BAPRON, FRONT FENDER, FRONT LH

main53712-22290iGX71,MX71,SX70,YX7#198408-198808

sub53712-22291

main53712-22310iLX70..TD198608-198808

53733CPATCH, FRONT FENDER APRON

main53733-22060iGX71,SX70,YX72198801-198808

53769PLATE, IGNITION COIL MOUNTING, LH

main53769-22030iGX71,SX70198801-198808

53777SUPPORT, BATTERY CARRIER, NO.2

main53777-22030iGX71..TWC198801-198808

COLD SPEC

53791COVER, COOL AIR INTAKE HOLE

main53791-22010×2iLX70,YX70198408-198808

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-91601iGX71,LX70,SX70,YX72198608-198808

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53796-91602iGX71,LX70,SX70,YX72198608-198808

55101PANEL SUB-ASSY, DASH

main55101-22911iGX71,MX71..AVT,SXL198408-198808

main55101-22912iSX70..XG,XL198408-198808

main55101-22913iLX70..XG,XL198408-198808

main55101-22916iLX70..KYO198408-198608

main55101-22917iSX70..KYO198408-198608

main55101-22924iYX70198408-198608

main55101-22925iGX71..TWT198510-198808

main55101-22934iSX70..4FC..XL198612-198808

*30

main55101-22935iLX70..KYO198608-198808

main55101-22936iYX72198608-198808

55210INSULATOR ASSY, DASH PANEL

main55210-22180iGX71,LX70,MX71,SX70,YX7#198408-198808

sub55210-22200

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

55223AINSULATOR, DASH PANEL, OUTER

main55223-22020iLX70198408-198808

main55223-22030iGX71..AVT,GT198510-198808

55250BINSULATOR ASSY, DUSH PANEL, NO.3

main55250-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

57161CROSSMEMBER, FRONT

main57104-22100iGX71,LX70,MX71,SX70,YX7#198408-198609

main57104-22110iGX71,LX70,SX70,YX72198609-198808

76609MUDGUARD SUB-ASSY, FRONT SIDE MEMBER

main76609-22010iGX71,LX70,MX71,SX70..4FC198408-198808

6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30030

9046708011

main90467-08011

9046713025

main90467-13025

9048040010

main90480-40010

9056109008

main90561-09008

9056116004

main90561-16004

9095001109

main90950-01109

9095001433

main90950-01433

9165140610

main91651-40610

9165140612

main91651-40612

9166140612

main91661-40612

9166540616

main91665-40616

9461310300

main94613-10300

9511380309

main95113-80309

42 parts on this diagram · 2 diagrams in section
