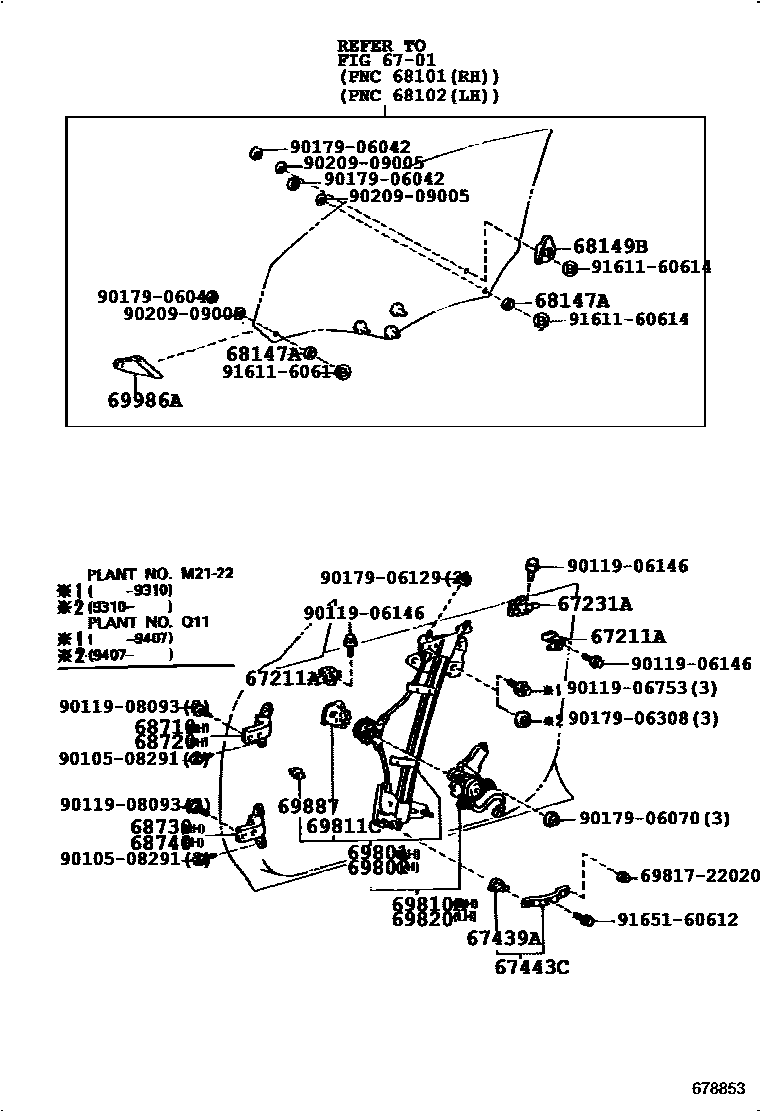

Toyota CHASER — FRONT DOOR WINDOW REGULATOR & HINGE
6701
67211ASTOP, FRONT DOOR WINDOW, UPPER
67231ASUPPORT, FRONT DOOR TRIM
67439ASNAP, FRONT DOOR WINDOW GUIDE
67443CPLATE, FRONT DOOR WINDOW GUIDE, LOWER
68147ASTOP, FRONT DOOR GLASS, UPPER
68149BSTABILIZER, FRONT DOOR GLASS MALE
68710HINGE ASSY, FRONT DOOR, UPPER RH
sub68710-22081
68720HINGE ASSY, FRONT DOOR, UPPER LH
sub68720-22071
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69887CUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.1
69986APIECE, FRONT DOOR GLASS GUIDE
6981722020PLATE, QUARTER WINDOW REGULATOR BASE, RH
main69817-22020
9010508291
main90105-08291
9011906146
main90119-06146
9011906753
main90119-06753
9011908093
main90119-08093
9017906042
main90179-06042
9017906070
main90179-06070
9017906129
main90179-06129
9017906308
main90179-06308
9020909005
main90209-09005
9161160614
main91611-60614
9165160612
main91651-60612
30 parts on this diagram · 1 diagram in section
