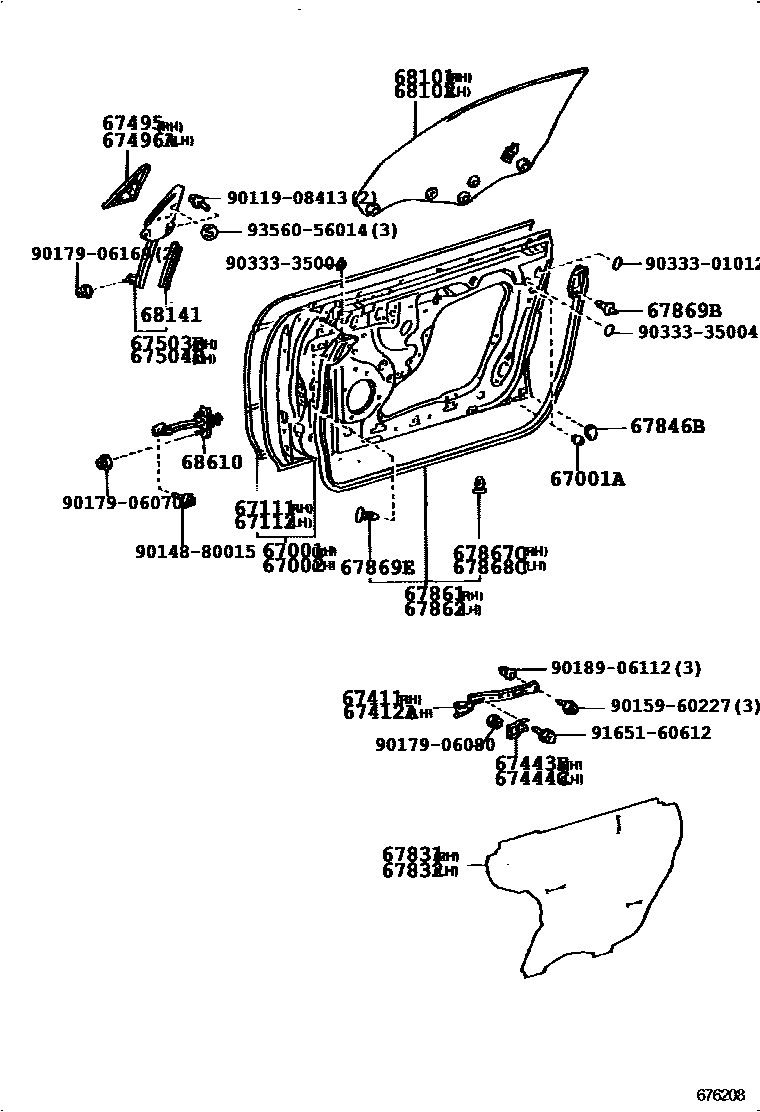

Toyota CHASER — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67411FRAME, FRONT DOOR WINDOW, FRONT UPPER RH
67412AFRAME, FRONT DOOR WINDOW, FRONT UPPER LH
67443EPLATE, FRONT DOOR INSIDE PANEL, RH
67444CPLATE, FRONT DOOR INSIDE PANEL, LH
67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67503BBRACKET SUB-ASSY, FRONT DOOR MIRROR, RH
67504BBRACKET SUB-ASSY, FRONT DOOR MIRROR, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67846BSUB-SHEET, FRONT DOOR SERVICE HOLE
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67869ECLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141RUN, FRONT DOOR GLASS
68610CHECK ASSY, FRONT DOOR
9011908413
main90119-08413
9014880015
main90148-80015
9015960227
main90159-60227
9017906070
main90179-06070
9017906080
main90179-06080
9017906169
main90179-06169
9018906112
main90189-06112
9033301012
main90333-01012
9033335004
main90333-35004
9165160612
main91651-60612
9356056014
main93560-56014
37 parts on this diagram · 2 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota CHASER
This section contains 60 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota CHASER. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH.
