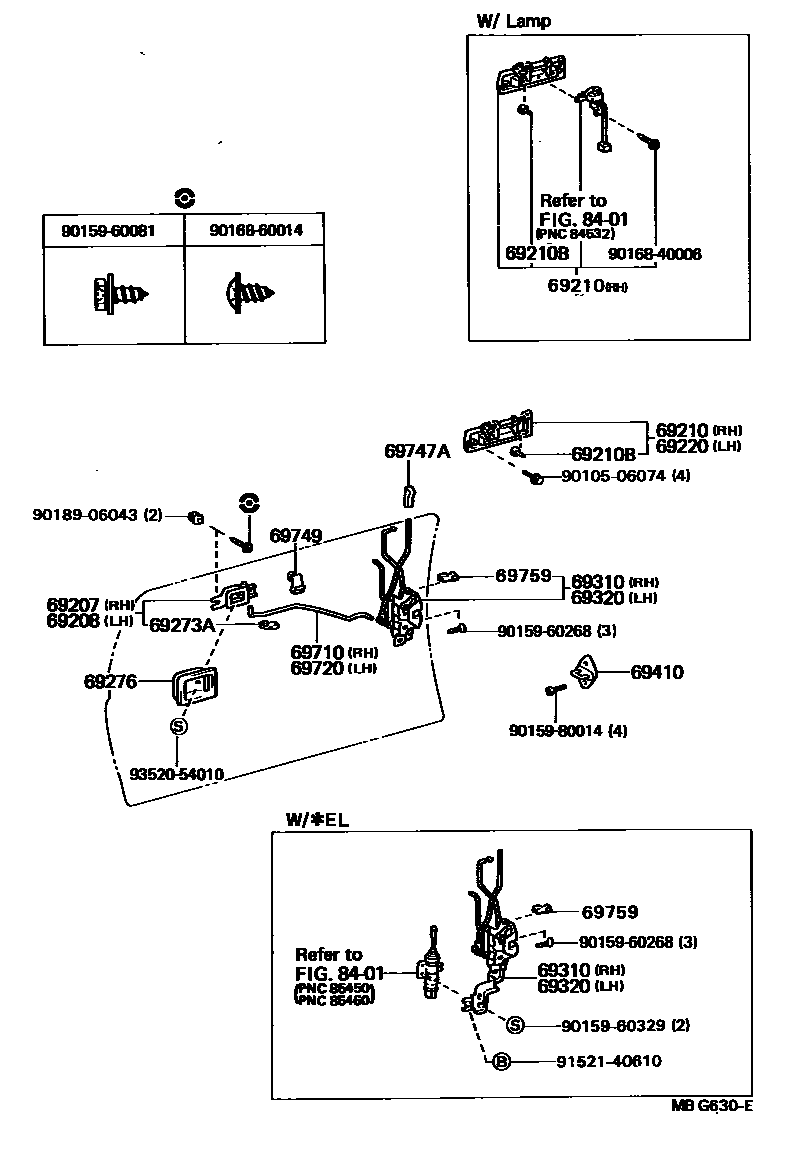

Toyota CHASER — FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22020-02iSX70..XL198510-198808

XL EXTRA,MAROON,RED,TRIM3#

main69205-22020-03iLX70,SX70,YX70..KYO,XL198408-198608

GRAY,COOL GRAY,TRIM1#

main69205-22020-04iLX70,SX70,YX72..KYO,XL198608-198808

BLUE,DARK BLUE,TRIM8#

main69205-22020-05iLX70,SX70..XL198408-198608

BEIGE,BEIGE,TRIM4#

main69205-22020-15iLX70,SX70..XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

main69205-22030iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198808

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22020-02iSX70..XL198510-198808

XL EXTRA,MAROON,RED,TRIM3#

main69206-22020-03iLX70,SX70,YX70..KYO,XL198408-198608

GRAY,COOL GRAY,TRIM1#

main69206-22020-04iLX70,SX70,YX72..KYO,XL198608-198808

BLUE,DARK BLUE,TRIM8#

main69206-22020-05iLX70,SX70..XL198408-198608

BEIGE,BEIGE,TRIM4#

main69206-22020-15iLX70,SX70..XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

main69206-22030iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198808

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22080iGX71..5F..TWT198510-198608

GT-S PACKAGE

main69210-22090iGX71,MX71..AVT,GT198408-198808

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021×4iGX71,LX70,MX71,SX70,YX7#198408-198808

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-22070iGX71,LX70,MX71,SX70,YX7#198408-198808

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69759-20060iLX70,SX70,YX70..KYO,XL198408-198410

LH

main69759-20070iLX70,SX70,YX70..KYO,XL198408-198410

RH

main69759-20100iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198410

LH

main69759-20110iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198410

RH

main69759-22040iLX70,SX70,YX7#..KYO,XL198410-198808

RH

main69759-22050iLX70,SX70,YX7#..KYO,XL198410-198808

LH

main69759-22060iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198410-198808

RH

main69759-22070iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198410-198808

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-22050-02×2iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198608

MAROON,RED,TRIM3#

main69277-22050-03×2iGX71,LX70,MX71,SX70,YX70198408-198608

GRAY,COOL GRAY,TRIM1#

main69277-22050-04×2iGX71,LX70,SX70,YX72198608-198808

BLUE,DARK BLUE,TRIM8#

main69277-22050-05×2iGX71,LX70,MX71,SX70..AVT,SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

main69277-22050-12×2iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

XL EXTRA,MAROON,MAROON,TRIM3#

main69277-22050-15×2iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

69310LOCK ASSY, FRONT DOOR, RH

main69310-22260iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198508

main69310-22261iLX70,SX70,YX7#..KYO,XL198508-198808

main69310-22270iGX71,LX70,SX70..SXL,XG198408-198508

W/*EL

main69310-22271iSX70..XL198801-198808

XL EXTRA,W/*EL

main69310-22280iGX71,MX71..AVT198408-198508

W/*EL

main69310-22281iGX71,MX71..AVT,GT198508-198808

W/*EL

69320LOCK ASSY, FRONT DOOR, LH

main69320-22250iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198508

main69320-22251iGX71..5F..TWT198510-198608

GT-S PACKAGE

main69320-22260iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198508

W/*EL

main69320-22261iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198508-198808

W/*EL

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001×2iGX71,LX70,MX71,SX70,YX7#198408-198808

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-22050iGX71,LX70,MX71,SX70,YX7#198408-198808

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-22050iGX71,LX70,MX71,SX70,YX7#198408-198808

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-22010×2iGX71,LX70,MX71,SX70,YX7#198408-198808

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20010×2iGX71,LX70,MX71,SX70,YX7#198408-198808

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iGX71,LX70,MX71,SX70,YX7#198408-198808

LH

main69759-20050iGX71,LX70,MX71,SX70,YX7#198408-198808

RH

8401

9010506074

main90105-06074

9015960081

main90159-60081

9015960268

main90159-60268

9015960329

main90159-60329

9015980014

main90159-80014

9016840006

main90168-40006

9016860014

main90168-60014

9018906043

main90189-06043

9152140610

main91521-40610

9352054010

main93520-54010

26 parts on this diagram · 1 diagram in section
