Toyota CHASER — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-22240i199210-199212

main81610-22241i199212-199609

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-13036×2i199210-199609

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-22240i199210-199212

main81611-22241i199212-199609

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-22240×2i199210-199609

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-22240i199210-199212

main81620-22241i199212-199609

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-22240i199210-199212

main81621-22241i199212-199609

81710EMARKER ASSY, FENDER, RH

main81710-22080i199210-199609

81720EMARKER ASSY, FENDER, LH

main81720-22070i199210-199609

81730CBULB (FOR SIDE TURN SIGNAL)

main99132-12050×2i199210-199609

9016440082

main90164-40082

10 parts on this diagram · 1 diagram in section

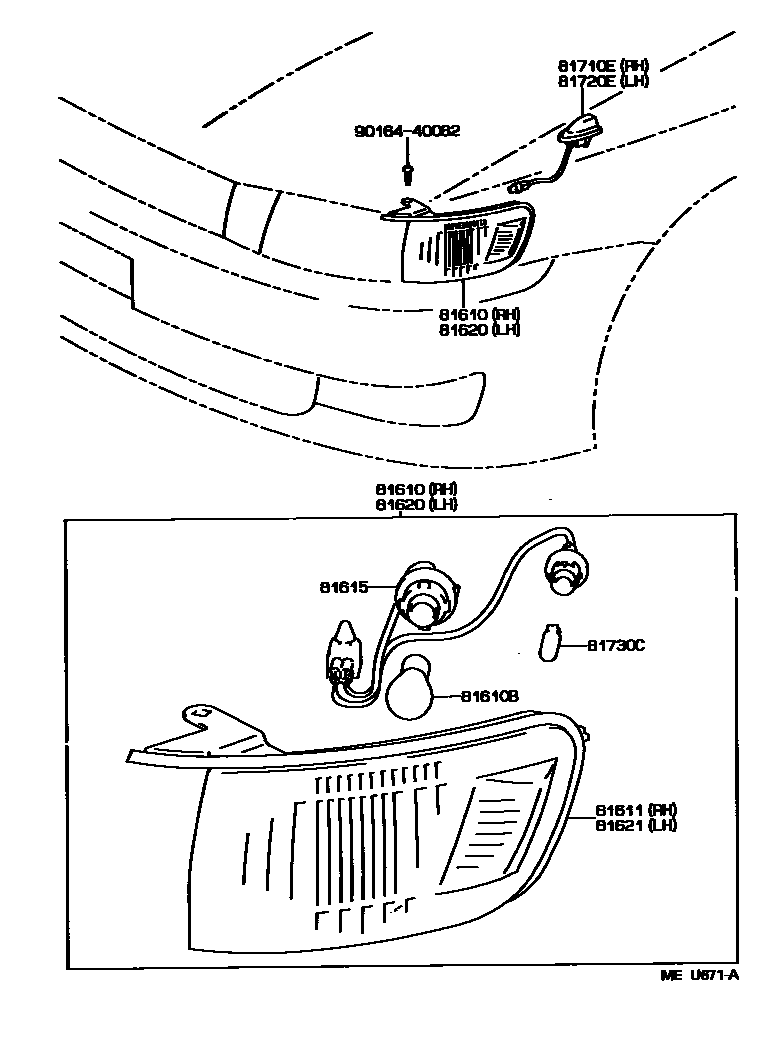

FRONT CLEARANCE LAMP for Toyota CHASER

This section contains 10 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CHASER. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, LAMP ASSY, PARKING & CLEARANCE, LH.
