Toyota CHASER — FRONT CLEARANCE LAMP

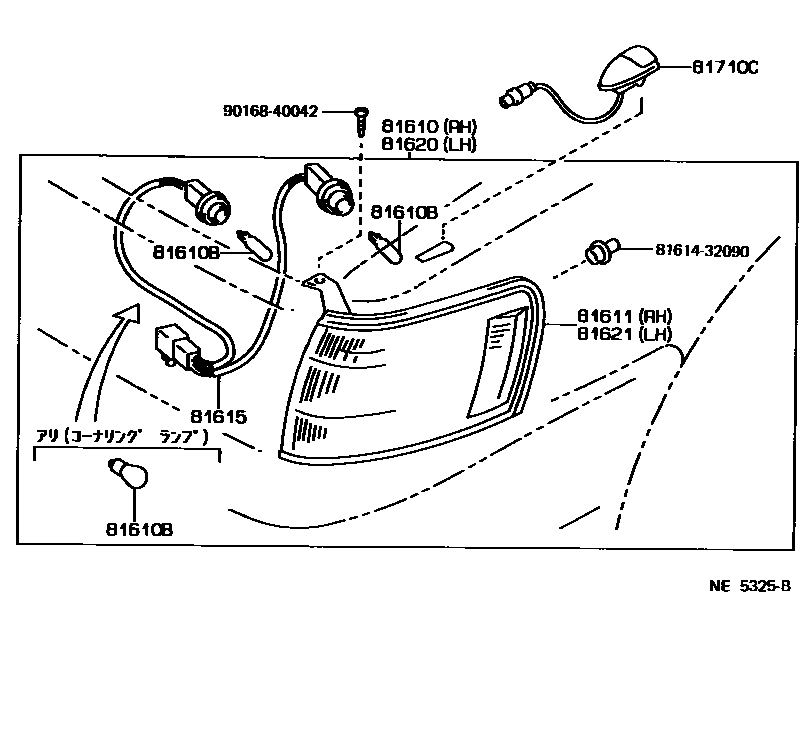

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-23010i199008-199210

main81610-23020i199008-199210

main81610-91606i198808-199008

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-11038×2i199008-199210

main90981-13036×2i199008-199210

main99132-12050×2i199008-199210

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-23010i199008-199210

main81611-91606i198808-199008

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-23010×2i199008-199210

main81615-23020×2i199008-199210

main81615-91606×2i198808-199008

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-23010i199008-199210

main81620-23020i199008-199210

main81620-91606i198808-199008

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-23010i199008-199210

main81621-91606i198808-199008

81710CMARKER ASSY, FENDER

main81710-22050i198808-199103

main81710-22060i199103-199210

main81720-22030i198808-199103

main81720-22050i199103-199210

8161432090GASKET, PARKING AND CLEARANCE LAMP BODY, RH

main81614-32090

9016840042

main90168-40042

9 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota CHASER

This section contains 9 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CHASER. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, LAMP ASSY, PARKING & CLEARANCE, LH.
