Toyota CHASER — FRONT CLEARANCE LAMP

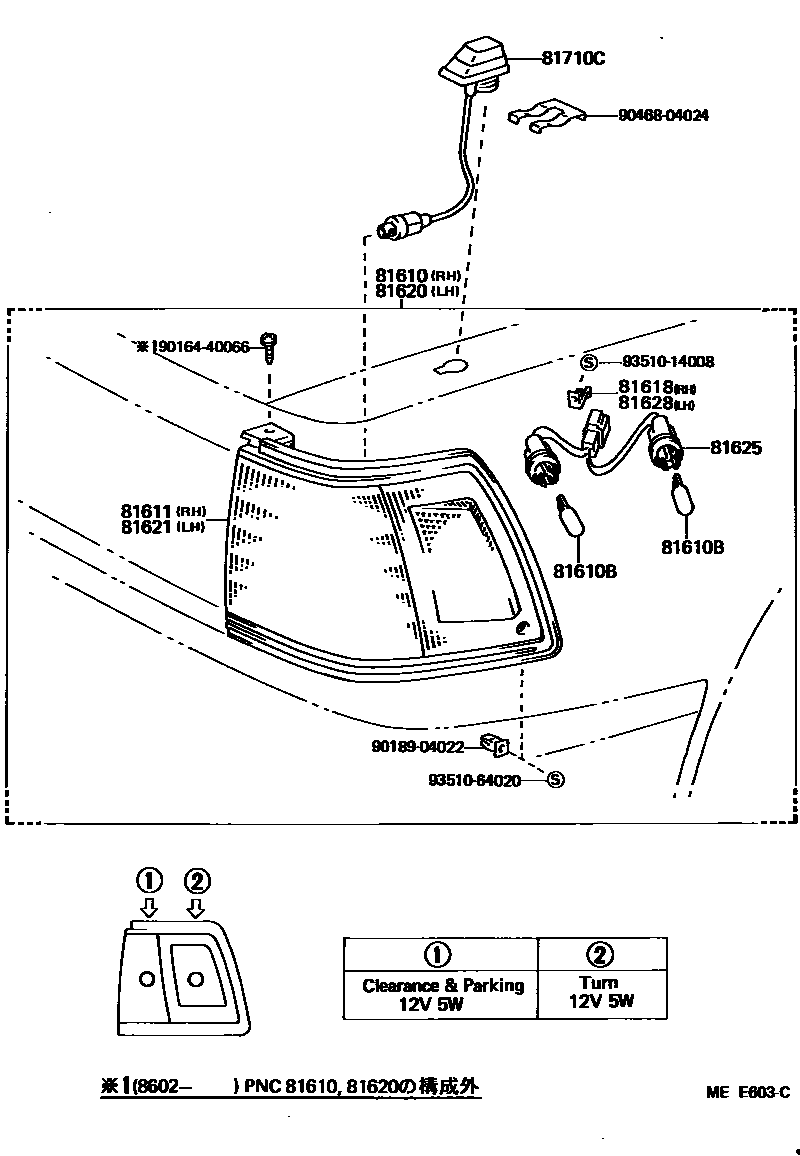

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-29465i198510-198602

GT-S PACKAGE

main81610-29475i198408-198602

main81610-91601i198602-198608

GT-S PACKAGE

main81610-91602i198602-198608

main81610-91603i198608-198808

main81610-91604i198608-198808

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4i198408-198808

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-91601i198408-198608

main81611-91602i198408-198608

main81611-91603i198701-198808

*30

main81611-91604i198608-198808

81618BRACKET, PARKING AND CLEARANCE LAMP, RH

main81618-91601i198408-198501

main81618-91602i198501-198608

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-29455i198510-198602

GT-S PACKAGE

main81620-29465i198408-198602

main81620-91601i198602-198608

GT-S PACKAGE

main81620-91602i198602-198608

main81620-91603i198608-198808

main81620-91604i198608-198808

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-91601i198510-198608

GT-S PACKAGE

main81621-91602i198408-198608

main81621-91603i198608-198808

main81621-91604i198608-198808

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-91601×2i198408-198608

main81615-91603×2i198608-198808

81628BRACKET, PARKING AND CLEARANCE LAMP, LH

main81618-91601i198408-198501

main81618-91602i198501-198608

81710CMARKER ASSY, FENDER

main81710-22020i198408-198608

RH

main81720-22020i198408-198608

LH

9016440066

main90164-40066

9018904022

main90189-04022

9046804024

main90468-04024

9351014008

main93510-14008

9351064020

main93510-64020

14 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota CHASER

This section contains 14 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CHASER. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, BRACKET, PARKING AND CLEARANCE LAMP, RH, LAMP ASSY, PARKING & CLEARANCE, LH.
