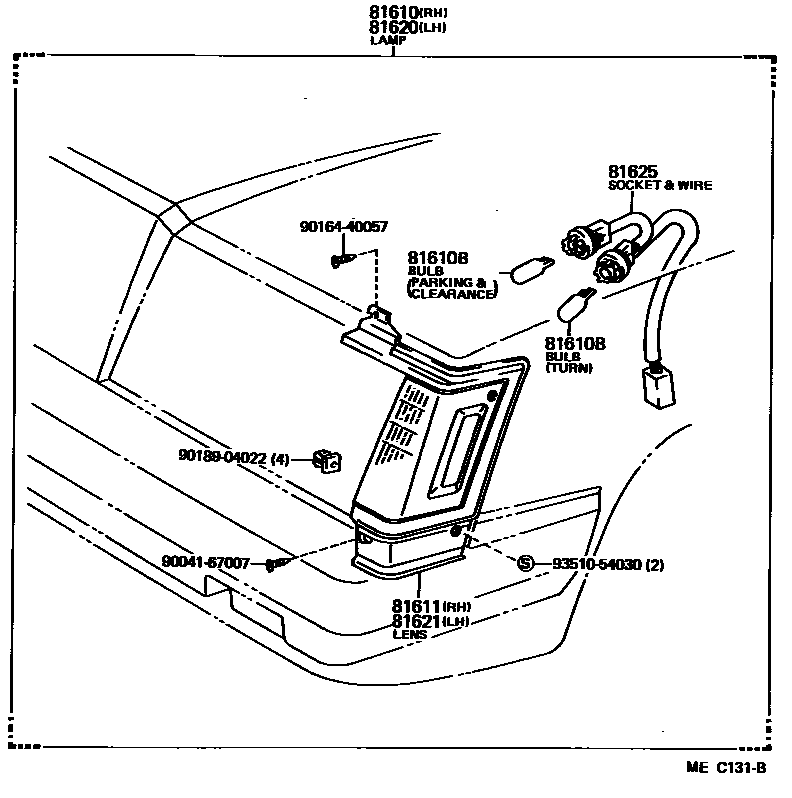

Toyota CHASER — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-29305i198208-198407

main81610-29325i198208-198407

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×2i198208-198407

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-22090i198208-198407

main81611-95801i198208-198407

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-29295i198208-198407

main81620-29315i198208-198407

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-22090i198208-198407

main81621-95801i198208-198407

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-22090×2i198208-198407

main81615-95801×2i198208-198407

9004167007

main90041-67007

9016440057

main90164-40057

9018904022

main90189-04022

9351054030

main93510-54030

10 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota CHASER

This section contains 11 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CHASER. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, LAMP ASSY, PARKING & CLEARANCE, LH, LENS, PARKING & CLEARANCE LAMP, LH.
