Toyota CHASER — FRONT AXLE HUB

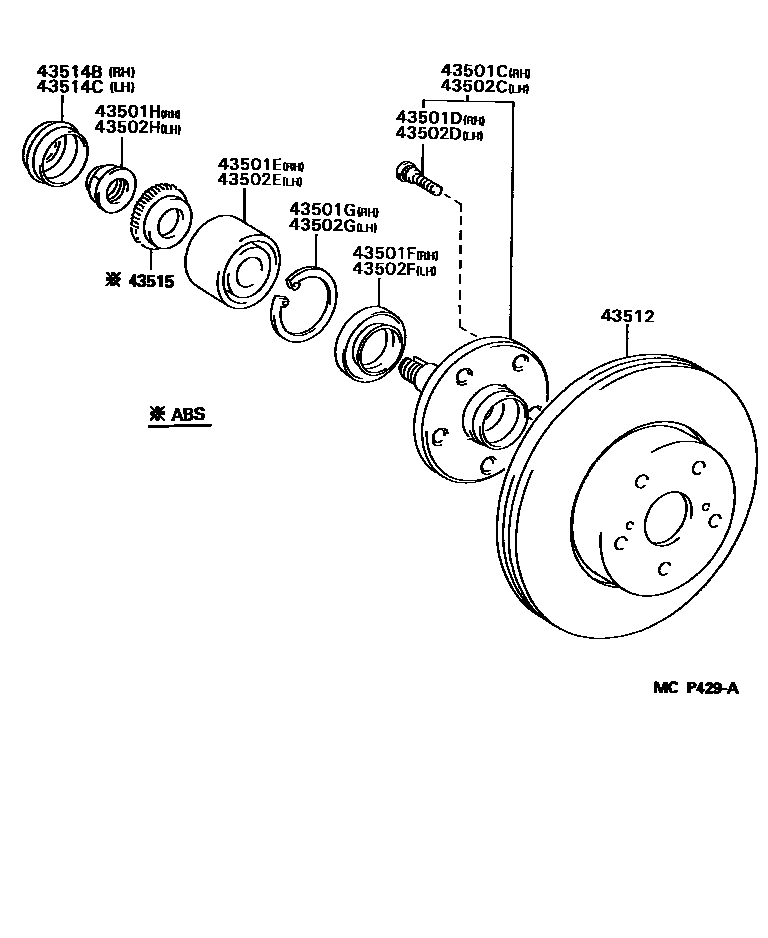

Parts diagram
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-22080i199210-199609
main43502-30150i199310-199609
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049i199210-199212
main90942-02070i199212-199609
sub90942-02049
43501EBEARING (FOR FRONT AXLE HUB RH)
main90363-32035i199210-199609
main90369-43008i199310-199609
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
main90311-48013i199210-199609
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90521-77001i199210-199609
main90521-88001i199310-199609
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90179-22020i199310-199609
main90179-22022i199210-199609
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-22080i199210-199609
main43502-30150i199310-199609
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049i199210-199212
main90942-02070i199212-199609
sub90942-02049
43502EBEARING (FOR FRONT AXLE HUB LH)
main90363-32035i199210-199609
main90369-43008i199310-199609
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
main90311-48013i199210-199609
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90521-77001i199210-199609
main90521-88001i199310-199609
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90179-22020i199310-199609
main90179-22022i199210-199609
43512DISC, FRONT
main43512-22220i199210-199310
main43512-22220i199310-199609
main43512-22230i199210-199609
sub43512-22240
main43512-22240i199210-199609
main43512-22240i199210-199609
main43512-22250i199210-199310
sub43512-22220
main43512-50100i199210-199609
43514BCAP, FRONT AXLE HUB GREASE, RH
main43514-22040i199210-199609
43514CCAP, FRONT AXLE HUB GREASE, LH
main43514-22040i199210-199609
43515ROTOR, SKID CONTROL, FRONT
main43515-22020i199210-199609
sub43515-22030

16 parts on this diagram · 2 diagrams in section
