Toyota CHASER — FOG LAMP

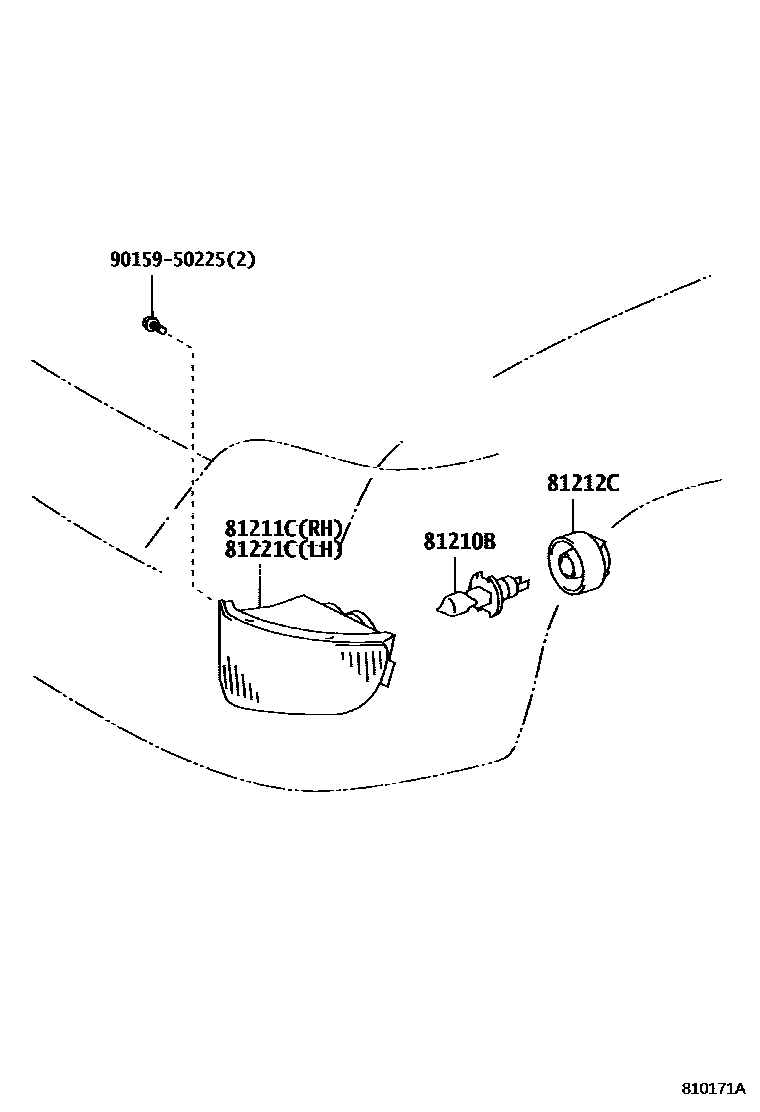

Parts diagram

81210BBULB, FOG LAMP

main90080-81040×2i199808

main90981-13070×2i199609-199808

81211CLAMP UNIT, FOG LAMP, RH

main81211-22050i199609-199808

main81211-22060i199609-199808

main81211-22070i199808

main81211-22080i199808

81212CCOVER, FOG LAMP

main90075-65003×2i199609-199808

main90075-65010×2i199808

81221CLAMP UNIT, FOG LAMP, LH

main81221-22040i199609-199808

main81221-22050i199609-199808

main81221-22060i199808

main81221-22070i199808

9015950225

main90159-50225

5 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota CHASER

This section contains 6 genuine Toyota parts for the FOG LAMP system of the Toyota CHASER. Key components include: BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, COVER, FOG LAMP, LAMP UNIT, FOG LAMP, LH.
