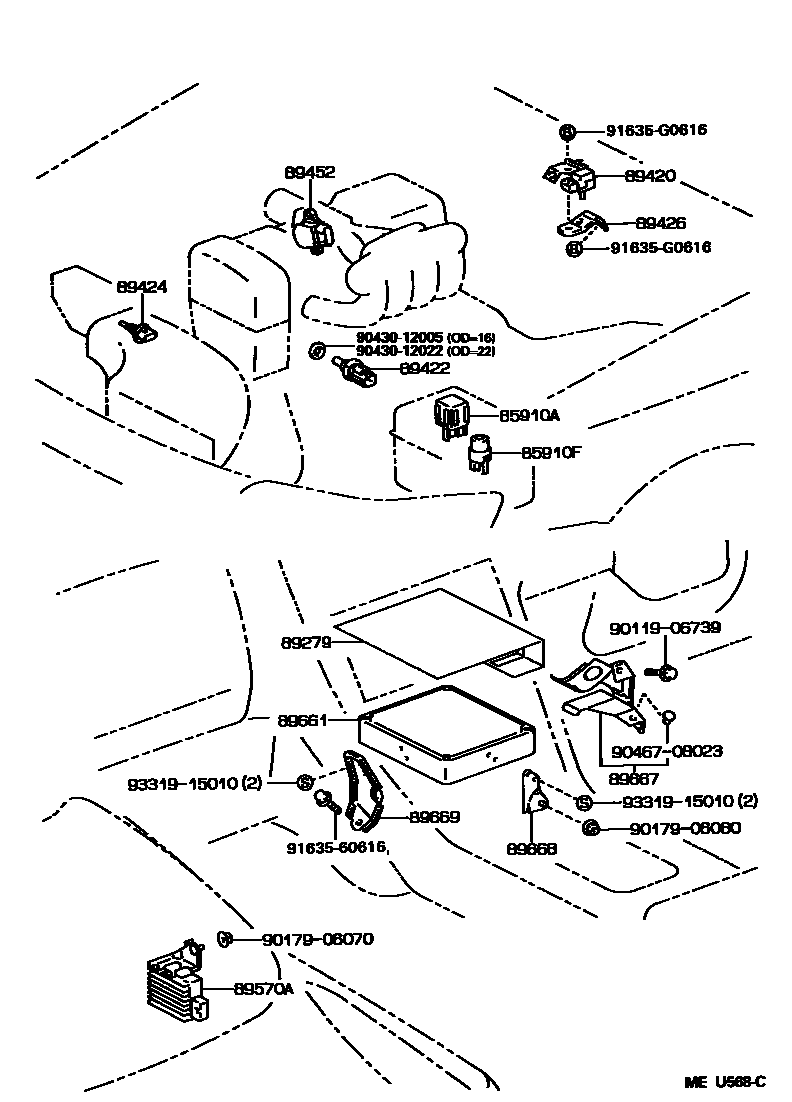

Toyota CHASER — ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-22040iGX90,JZX90,93,SX90..AVT,AVTG,RAF,TOUS,XL199210-199609

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iGX90,JZX9#,SX90199210-199609

89279COVER, ENGINE CONTROL COMPUTER

main89279-22020iJZX90..TOUV;GX90,JZX91,93,SX90199210-199609

89420SENSOR ASSY, VACUUM

main89420-22200iGX90,JZX9#..AVT,AVTG,TOUS199210-199609

main89420-22210iJZX90..TOUV199210-199609

main89420-22230iSX90199210-199609

main89420-22240iGX90,JZX9#..AVT,AVTG,TOUS199210-199609

FUJI DENKI

main89420-22250iSX90199210-199609

FUJI DENKI

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iGX90,JZX9#,SX90199210-199609

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iGX90,JZX9#,SX90..AVT,AVTG,RAF,TOUS,XL199210-199609

main89424-24010iJZX90..TOUV199210-199609

89426BRACKET, VACUUM SENSOR

main89426-22190iGX90,JZX9#199210-199609

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10010iSX90199210-199609

main89452-22080iJZX90..TOUV199210-199609

main89452-22090iJZX91199409-199410

main89452-22090iGX90,JZX90,93..AVT,AVTG,TOUS199210-199609

main89452-33010iJZX91199210-199409

sub89452-22090

sub89452-32060

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-22180iJZX91199210-199609

main89570-22190iJZX90..TOUV199210-199609

89661COMPUTER, ENGINE CONTROL

main89661-22420iJZX91199210-199409

main89661-22450iGX90..ATM199210-199409

main89661-22460iGX90..MTM199210-199409

sub89661-22600

main89661-22470iJZX90..ATM..TOUV199210-199409

main89661-22480iJZX90..MTM199210-199409

main89661-22490iSX90199210-199409

main89661-22500iJZX90..AVT,AVTG,TOUS199210-199409

main89661-22510iJZX90..AVT,AVTG,TOUS199210-199409

main89661-22520iJZX90..AVT,AVTG,TOUS199210-199409

main89661-22530iJZX90..AVT,AVTG,TOUS199210-199409

main89661-22550iJZX93199310-199409

sub89661-22650

main89661-22580iSX90199409-199609

main89661-22590iGX90..ATM199409-199609

main89661-22600iGX90..MTM199409-199609

main89661-22610iJZX90..ATM..TOUV199409-199609

main89661-22620iJZX90..MTM199409-199609

main89661-22630iJZX90..AVT,AVTG,TOUS199409-199609

main89661-22640iJZX90..AVT,AVTG,TOUS199409-199609

main89661-22650iJZX93199409-199609

main89661-22660iJZX90..AVT,AVTG,TOUS199409-199609

main89661-22670iJZX90..AVT,AVTG,TOUS199409-199609

main89661-22680iJZX91199409-199609

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-22110iGX90,JZX9#,SX90199210-199609

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-22160iJZX90..TOUV;GX90,JZX91,93,SX90199210-199609

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-22190iJZX90..TOUV;GX90,JZX91,93,SX90199210-199609

9011906739

main90119-06739

9017906060

main90179-06060

9017906070

main90179-06070

9043012005

main90430-12005

9043012022

main90430-12022

9046708023

main90467-08023

9163560616

main91635-60616

91635G0616

main91635-G0616

9331915010

main93319-15010

22 parts on this diagram · 1 diagram in section
