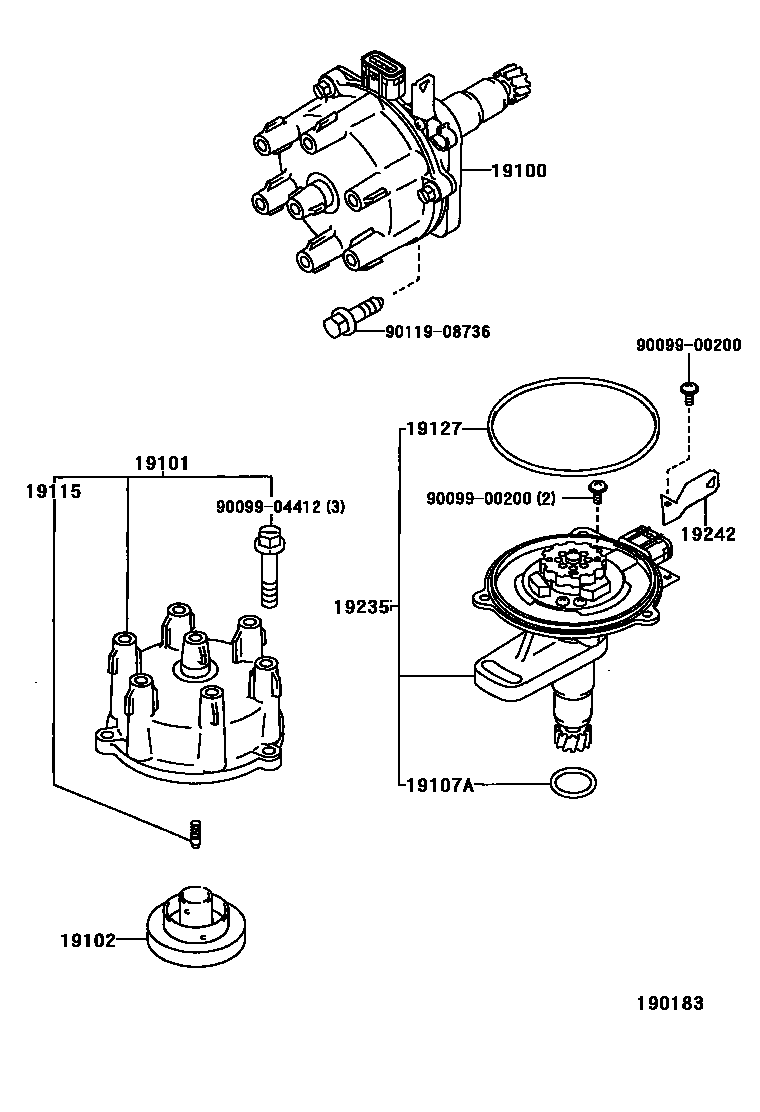

Toyota CHASER — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19100-70220i1GFE..GX100..4FC;1GFE..GX100..5F..AVT199609

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-70020i1GFE..GX100..4FC;1GFE..GX100..5F..AVT199609

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-70160i1GFE..GX100..4FC;1GFE..GX100..5F..AVT199609

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14095i1GFE..GX100..4FC;1GFE..GX100..5F..AVT199609

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i1GFE..GX100..4FC;1GFE..GX100..5F..AVT199609

19127PACKING, DUST PROOF

main19127-61240i1GFE..GX100..4FC;1GFE..GX100..5F..AVT199609

19235HOUSING, DISTRIBUTOR

main19235-70160i1GFE..GX100..4FC;1GFE..GX100..5F..AVT199609

19242CLAMP, CORD

main19242-70140i1GFE..GX100..4FC;1GFE..GX100..5F..AVT199609

9009900200

main90099-00200

9009904412

main90099-04412

9011908736

main90119-08736

11 parts on this diagram · 1 diagram in section
