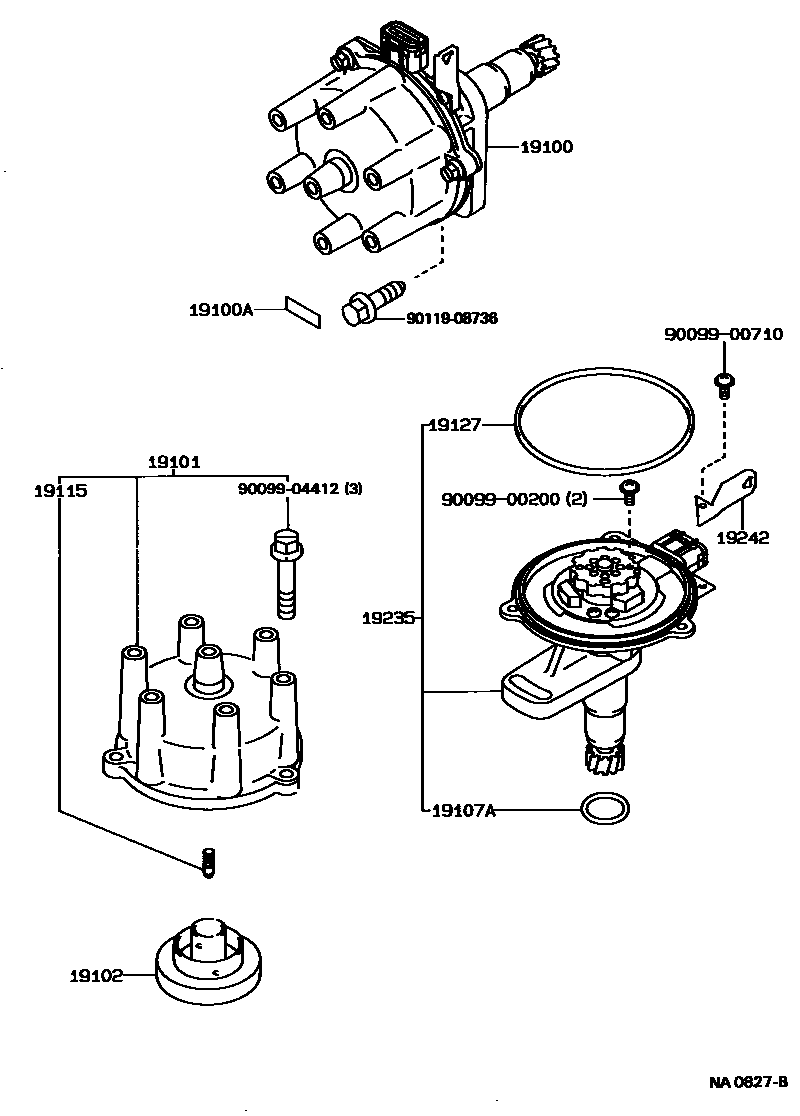

Toyota CHASER — DISTRIBUTOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

19100DISTRIBUTOR ASSY

main19030-72010i3YP..YX80198808-199012

main19030-72011i3YP..YX80199012-199210

sub19030-72012

main19100-42050i7MGE..MX83198908-199210

main19100-46010i1JZGE..JZX81199008-199107

main19100-46011i1JZGE..JZX81199107-199210

main19100-70160i1GFE..GX81198808-199210

main19100-74040i4SFI..SX80198808-199008

main19100-74070i4SFE..SX80199008-199210

main19100-88303i1GGE..GX81198808-199210

main19100-88341i1GGTE..GX81198808-199008

19100ATAPE, SEALING

main90919-24004i1JZGE..JZX81198808-199210

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-46010i1JZGE..JZX81199008-199107

main19101-46020i1JZGE..JZX81199107-199210

sub19101-70020

main19101-70160i1GFE..GX81198808-199210

main19101-73030i3YP..YX80198808-199210

main19101-74080i4SFI..SX80198808-199008

main19101-74140i4SFE..SX80199008-199210

main19101-88303i1GGE..GX81198808-199210

main19101-88340i1GGTE..GX81198808-199008

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i4SFE..SX80199008-199210

sub19102-11370

main19102-43110i1GGE..GX81198808-199210

main19102-46011i1JZGE..JZX81199107-199210

main19102-70160i1GFE..GX81198808-199107

main19102-73030i3YP..YX80198808-199210

main19102-74040i4SFI..SX80198808-199008

main19102-88340i1GGTE..GX81198808-199008

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14018i1GGE..GX81198808-199103

main90099-14020i3YP..YX80198808-199012

main90099-14088i1GGE..GX81199103-199210

main90099-14090i3YP..YX80199103-199210

main90099-14091i4SF#..SX80198808-199210

main90099-14095i1GFE..GX81198808-199210

main90099-14106i3YP..YX80199012-199103

main90099-14109i1JZGE..JZX81199008-199210

main96711-35030i1GGTE..GX81198808-199008

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i1GGE..GX81198808-199210

main19115-72010×2i3YP..YX80198808-199210

main19115-88280i1JZGE..JZX81198808-199210

19127PACKING, DUST PROOF

main19127-41141i1GGTE..GX81198808-199008

main19127-52020i1GGE..GX81198808-199210

main19127-61240i1GFE..GX81198808-199210

main19127-63010i3YP..YX80198808-199210

main19127-63020i3YP..YX80198808-199210

main19127-74040i4SF#..SX80198808-199210

19235HOUSING, DISTRIBUTOR

main19235-42050i7MGE..MX83198908-199210

main19235-46010i1JZGE..JZX81199008-199210

main19235-70160i1GFE..GX81198808-199210

main19235-72010i3YP..YX80198808-199012

main19235-72011i3YP..YX80199012-199210

main19235-74050i4SFI..SX80198808-199008

main19235-74150i4SFE..SX80199008-199210

main19235-88303i1GGE..GX81198808-199210

main19235-88341i1GGTE..GX81198808-199008

19242CLAMP, CORD

main19242-70011i1GGZE..GX81198808-199008

main19242-70140i1GFE..GX81198808-199210

main19242-71010i3YP..YX80198808-199210

9009900200

main90099-00200

9009900710

main90099-00710

9009904412

main90099-04412

9011908736

main90119-08736

13 parts on this diagram · 9 diagrams in section
