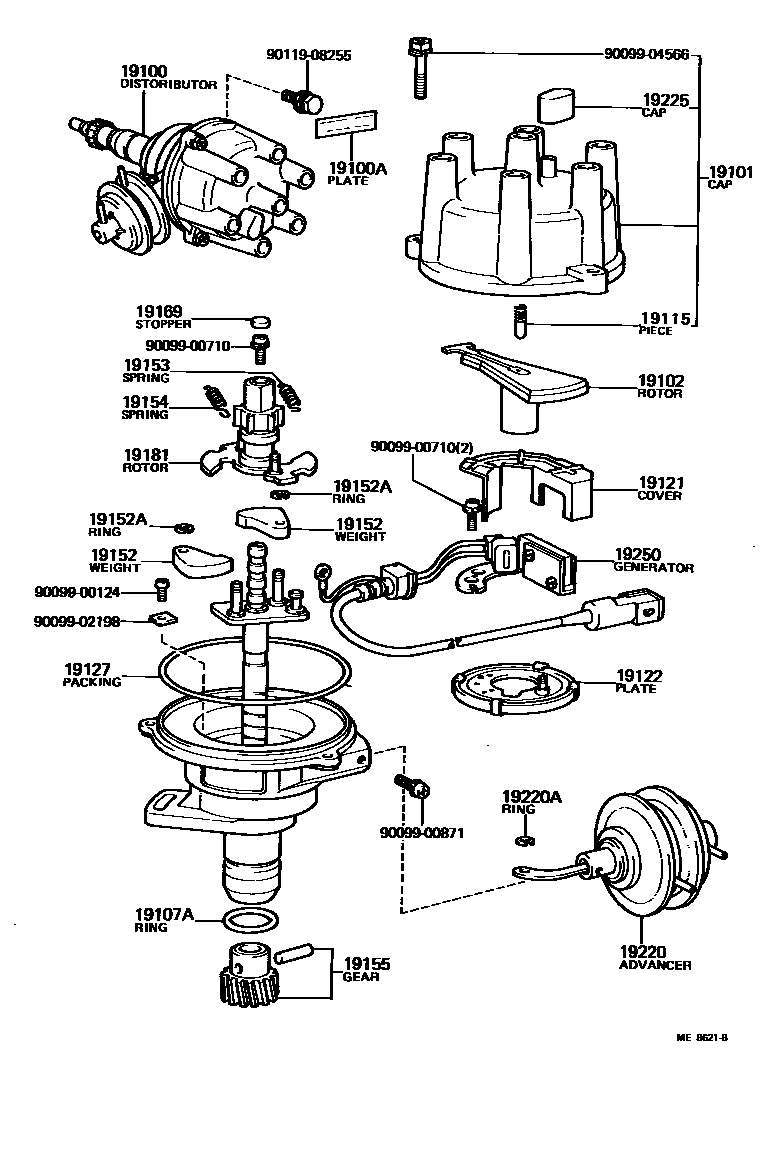

Toyota CHASER — DISTRIBUTOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

19100DISTRIBUTOR ASSY

main19030-63040i1SU..SX60198208-198407

main19030-72010i2YPU..SX60198302-198407

*30

sub19030-72011

main19100-18020i13TU..TX60198009-198208

main19100-37060i21RU..RX60198009-198108

main19100-37061i21RU..RX60198108-198208

main19100-41240iMTEU..MX61198308-198407

main19100-41250iMTEU..MX61198110-198308

main19100-70010i1GEU..GX6#198009-198102

main19100-70020i1GEU..GX6#198102-198208

main19100-70030i1GEU..GX61198208-198407

main19100-88271i18RGEU..RX63198009-198208

main19100-88300i1GGEU..GX61198208-198210

main19100-88301i1GGEU..GX61198210-198407

19100ATAPE, SEALING

main90919-24004i1SU,2YPU..SX60198009-198407

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-25070i18RGEU..RX63198009-198208

main19101-27050i13TU..TX60198009-198208

sub19101-27051

main19101-38210i21RU..RX60198009-198208

main19101-41240iMTEU..MX61198308-198407

main19101-41250iMTEU..MX61198110-198308

main19101-43060i1G#..GX6#198110-198402

main19101-63010i1SU..SX60198208-198308

sub90099-04977

main19101-63011i1SU..SX60198308-198407

main19101-70010i1GEU..GX6#198009-198110

main19101-70011i1G#..GX61198402-198407

main19101-71010i2YPU..SX60198302-198407

*30

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-15021i21RU..RX60198009-198208

sub19102-38210

main19102-26150i18RGEU..RX63198009-198208

sub19102-26151

main19102-41240iMTEU..MX61198308-198407

main19102-41250iMTEU..MX61198110-198308

main19102-43110i1GGEU..GX61198208-198407

main19102-63010i1SU,2YPU..SX60198208-198407

sub19102-73021

main19102-70010i1GEU..GX6#198009-198407

sub19102-43060

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14018iMTEU..MX61198009-198407

sub90099-14088

main90099-14020i1SU,2YPU..SX60198009-198407

sub90099-14090

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010×2i1SU,2YPU..SX60198009-198308

main19115-63010×2i1SU..SX60198308-198407

main19115-88280iMTEU..MX61198308-198407

19121COVER, DUST PROOF

main19121-27020i18RGEU..RX63198009-198308

main19121-38210i21RU..RX60198009-198208

main19121-63010i1SU,2YPU..SX60198208-198407

NO.1

main19121-63040i1SU,2YPU..SX60198208-198407

NO.2

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-88262iMTEU..MX61198009-198308

19127PACKING, DUST PROOF

main19127-15021i21RU..RX60198009-198208

main19127-45190iMTEU..MX61198308-198407

main19127-52020i1G#..GX6#198009-198407

sub19127-61240

main19127-52050iMTEU..MX61198110-198308

main19127-63010i1SU,2YPU..SX60198208-198407

NO.1

main19127-63020i1SU,2YPU..SX60198208-198407

NO.2

main19127-88251i18RGEU..RX63198009-198208

19152WEIGHT, GOVERNOR

main19152-35030×2i2YPU..SX60198302-198312

*30

main19152-44170×2i1GEU..GX61198208-198407

main19152-45060×2i18RGEU..RX63198009-198107

main19152-63010×2i2YPU..SX60198312-198407

*30

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07109×4i1SU,2YPU..SX60198009-198308

main90099-07122×2i1SU..SX60198308-198407

19153SPRING, GOVERNOR, A

main19153-18020i13TU..TX60198009-198208

main19153-37060i21RU..RX60198009-198208

main19153-41250iMTEU..MX61198110-198308

main19153-63040i1SU..SX60198208-198308

main19153-63041i1SU..SX60198308-198407

main19153-70010i1GEU..GX6#198009-198208

main19153-70030×2i1GEU..GX61198208-198407

main19153-72010i2YPU..SX60198302-198407

*30

main19153-88270×2i18RGEU..RX63198009-198208

19154SPRING, GOVERNOR, B

main19153-70031×2i1GEU..GX61198208-198407

main19153-88270i18RGEU..RX63198009-198208

main19154-18020i13TU..TX60198009-198208

main19154-37060i21RU..RX60198009-198208

main19154-41250iMTEU..MX61198110-198308

main19154-63040i1SU..SX60198208-198308

main19154-63041i1SU..SX60198308-198407

main19154-70010i1GEU..GX6#198009-198208

main19154-72010i2YPU..SX60198302-198407

*30

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-25011i13TU..TX60198009-198208

main19195-33011i18RGEU..RX63198009-198208

main19195-38210i21RU..RX60198009-198208

main19195-45190iMTEU..MX61198110-198407

main19195-70010i1GEU..GX6#198009-198407

main19195-71010i2YPU..SX60198302-198407

*30

sub19195-72090

main19195-88300i1GGEU..GX61198208-198407

19169STOPPER, CAM GREASE

main19169-32010i1SU,2YPU..SX60198009-198308

sub19169-63011

19181ROTOR, DISTRIBUTOR, SIGNAL

main19181-26260i18RGEU..RX63198009-198208

main19181-27050i21RU..RX60198009-198208

main19181-28040i13TU..TX60198009-198208

main19181-41250iMTEU..MX61198110-198308

main19181-63020i1SU..SX60198208-198209

sub19181-74070

main19181-63040i1SU..SX60198209-198407

sub19181-74070

main19181-70010i1GEU..GX6#198009-198208

main19181-70030i1GEU..GX61198208-198407

main19181-72010i2YPU..SX60198302-198407

*30

sub19181-72011

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-18021i13TU..TX60198009-198208

main19220-35010i21RU..RX60198009-198208

main19220-41250iMTEU..MX61198110-198308

main19220-63040i1SU..SX60198208-198407

main19220-70010i1GEU..GX6#198009-198208

main19220-70030i1GEU..GX61198208-198407

main19220-72010i2YPU..SX60198302-198407

*30

main19220-88272i18RGEU..RX63198009-198208

19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)

main90099-07104i1GEU..GX6#198009-198208

main90099-07109iMTEU..MX61198009-198308

19225CAP, RUBBER

main19225-25070i18RGEU..RX63198009-198208

main19225-38011i21RU..RX60198009-198208

main19225-41140i1G#..GX6#198009-198407

19250GENERATOR ASSY, SIGNAL

main19250-28060i13TU..TX60198009-198208

main19250-37080i21RU..RX60198108-198208

main19250-38210i21RU..RX60198009-198108

main19250-41250iMTEU..MX61198110-198308

main19250-70010i1GEU..GX6#198009-198102

main19250-70020i1GEU..GX6#198102-198208

main19250-70031i1GEU..GX61198208-198407

sub19250-70040

main19250-88262i18RGEU..RX63198009-198208

sub19250-28020

main19251-63010i1SU..SX60198208-198308

main19251-63011i1SU..SX60198308-198407

main19251-72010i2YPU..SX60198302-198407

*30

sub19251-72021

9009900124

main90099-00124

9009900710

main90099-00710

9009900871

main90099-00871

9009902198

main90099-02198

9009904566

main90099-04566

9011908255

main90119-08255

26 parts on this diagram · 10 diagrams in section
