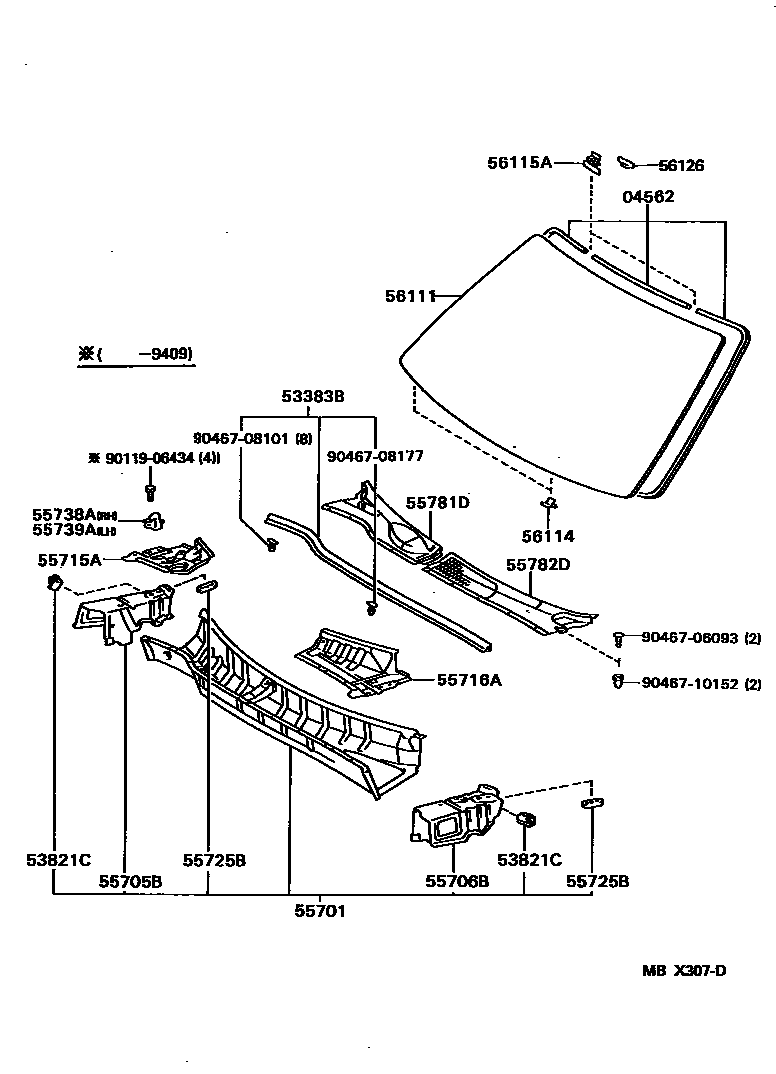

Toyota CHASER — COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53821CBRACKET, FRONT FENDER, REAR
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55725BREINFORCEMENT, HOOD HINGE MOUNTING
55738ASTOPPER, HOOD, RH
55739ASTOPPER, HOOD, LH
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
PLANT NO.Q11
PLANT NO.M21-22
56126SPACER, WINDSHIELD GLASS, NO.2
9011906434
main90119-06434
9046706093
main90467-06093
9046708101
main90467-08101
9046708177
main90467-08177
9046710152
main90467-10152
22 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota CHASER
This section contains 22 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CHASER. Key components include: DAM KIT, WINDSHIELD GLASS, SEAL, HOOD TO COWL TOP, BRACKET, FRONT FENDER, REAR, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH.
