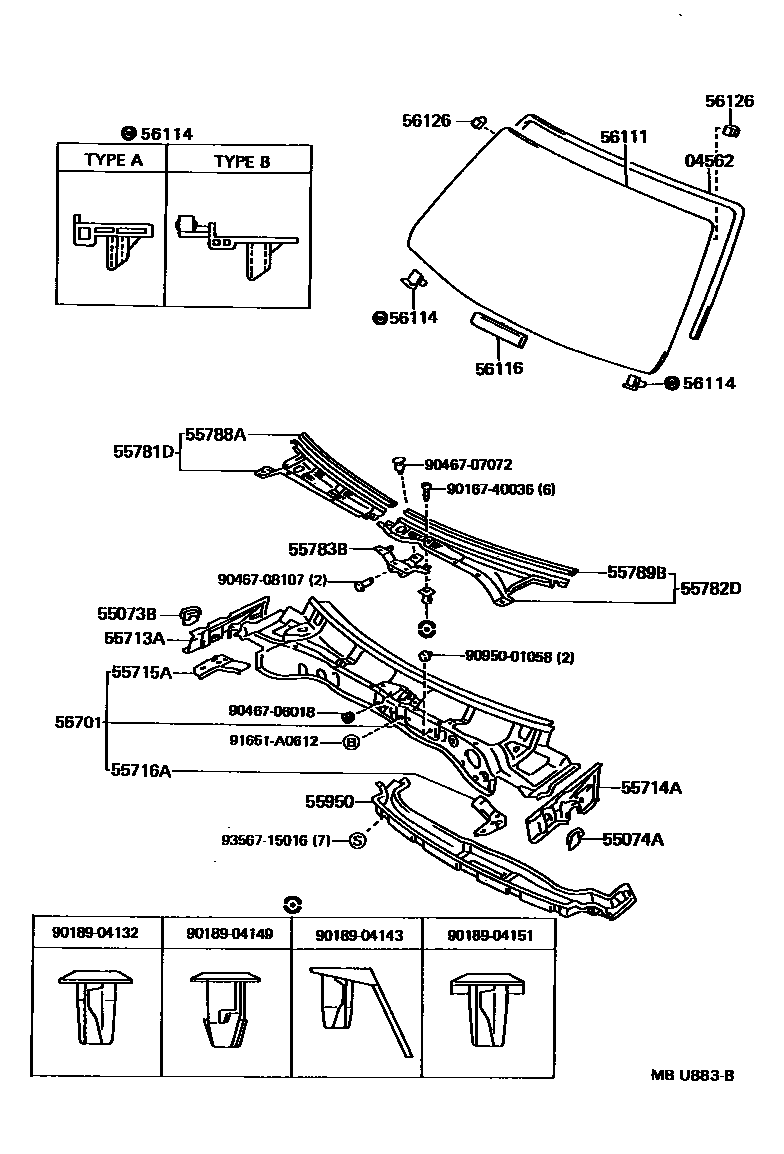

Toyota CHASER — COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
55073BSEAL SUB-ASSY, COWL WATER EXTRACT, NO.1
55074ASEAL SUB-ASSY, COWL WATER EXTRACT, NO.2
55701PANEL SUB-ASSY, COWL
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55950NOZZLE ASSY, DEFROSTER
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
TYPE A,WHITE
TYPE A,GREEN
TYPE B,WHITE
TYPE B,GREEN
56116SPACER, WINDSHIELD GLASS
56126SPACER, WINDSHIELD GLASS, NO.2
9016740036
main90167-40036
9018904132
main90189-04132
9018904143
main90189-04143
9018904149
main90189-04149
9018904151
main90189-04151
9046706018
main90467-06018
9046707072
main90467-07072
9046708107
main90467-08107
9095001058
main90950-01058
91651A0612
main91651-A0612
9356715016
main93567-15016
29 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota CHASER
This section contains 29 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CHASER. Key components include: DAM KIT, WINDSHIELD GLASS, SEAL SUB-ASSY, COWL WATER EXTRACT, NO.1, SEAL SUB-ASSY, COWL WATER EXTRACT, NO.2, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH.
