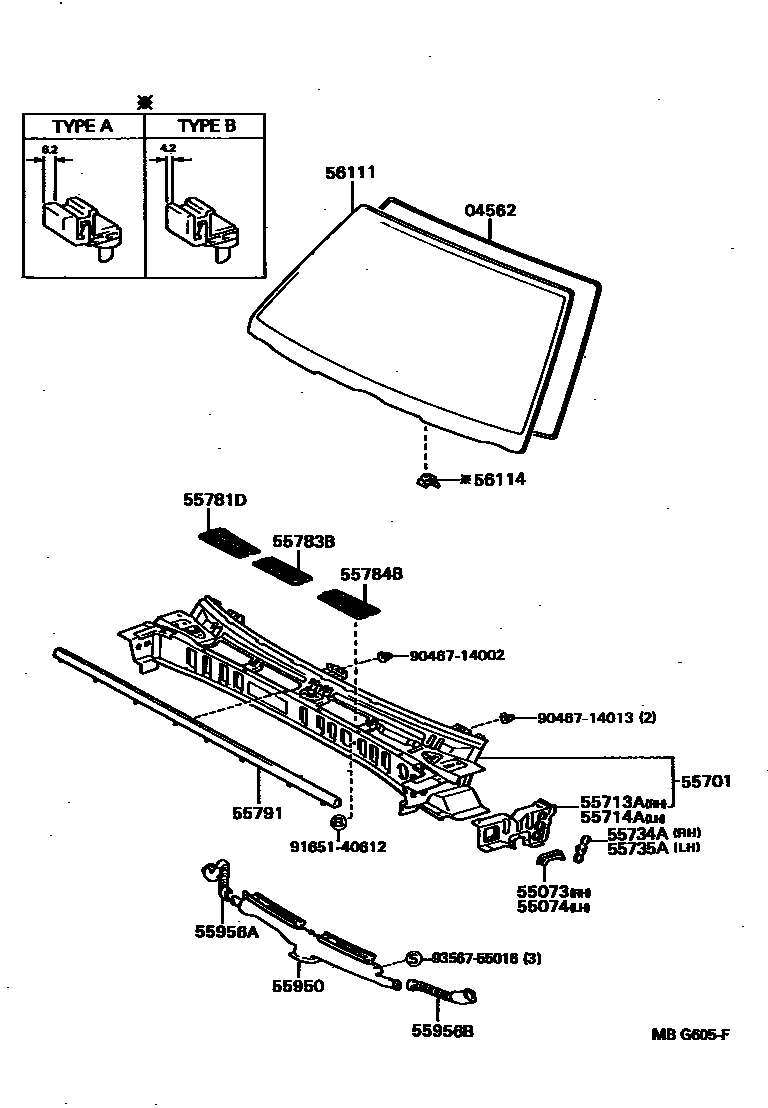

Toyota CHASER — COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55074COVER SUB-ASSY, COWL INNER HEATER AIR
55701PANEL SUB-ASSY, COWL
*30
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55734APLATE, WATER GUARD, RH
55735APLATE, WATER GUARD, LH
55781DLOUVER, COWL TOP VENTILATOR, RH
COLD SPEC
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
COLD SPEC
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
COLD SPEC
55791WEATHERSTRIP, HOOD TO COWL TOP
55950NOZZLE ASSY, DEFROSTER
55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2
56111GLASS, WINDSHIELD
*TT,T=5.0
LORDLY,BRONZE
56114RETAINER, WINDSHIELD GLASS
TYPE A
TYPE B
TYPE A
TYPE B
9046714002
main90467-14002
9046714013
main90467-14013
9165140612
main91651-40612
9356755016
main93567-55016
21 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota CHASER
This section contains 21 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CHASER. Key components include: DAM KIT, WINDSHIELD GLASS, NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT, COVER SUB-ASSY, COWL INNER HEATER AIR, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH.
