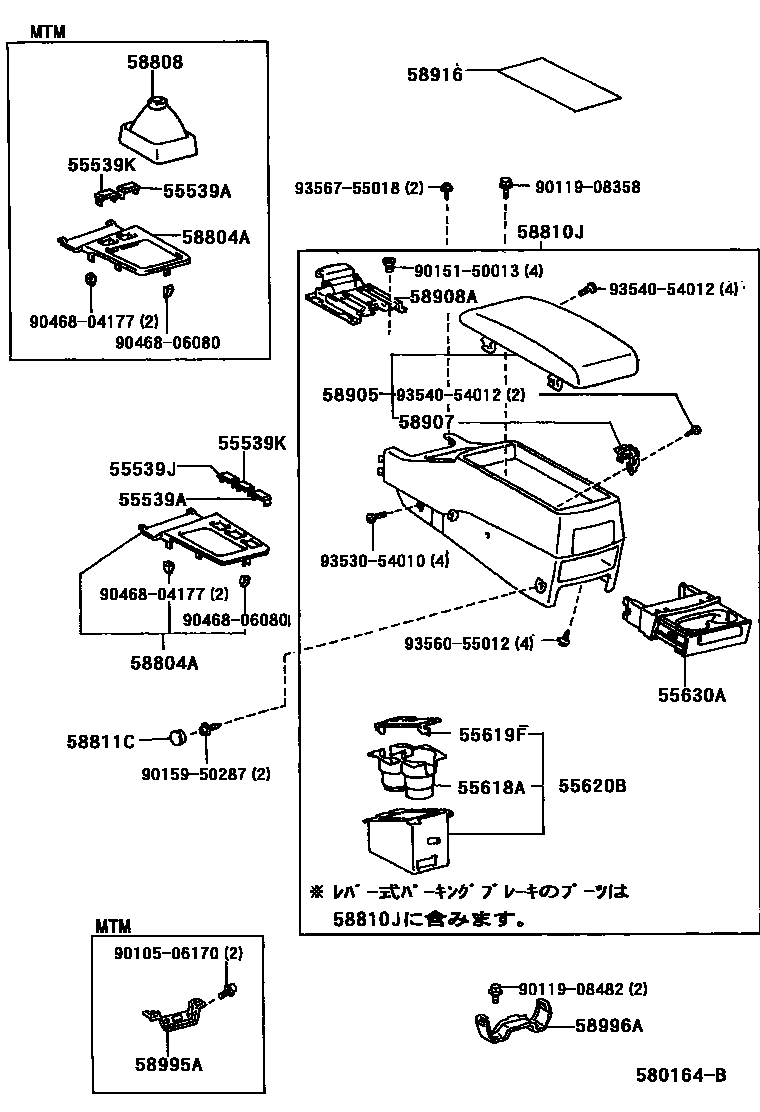

Toyota CHASER — CONSOLE BOX & BRACKET

0001 1TYPE A 0002 1TYPE B

55539ACOVER, SPARE SWITCH HOLE

main55539-22110iGX100,JZX100..TOU,TOUS199609

main55539-22160iGX100..5F;JZX100..AVTG199609-199808

main55539-22180iGX100,JZX100..TOU,TOUS199901-199907

55539JCOVER, SPARE SWITCH HOLE

main55539-22110iLX100,SX100..XL199609

main55539-22160iLX100,SX100..AVT,RAF199609-199808

main55539-22180iLX100,SX100199808

55539KCOVER, SPARE SWITCH HOLE

main55539-22110iGX100,JZX100,LX100..TOU,TOUS,XL199609

main55539-22160iGX100..5F;JZX100,LX100..AVT199609-199808

main55539-22170iGX100,JZX100..4FC..AVT199708-199808

main55539-22180iGX100,JZX100..TOU,TOUS199901-199907

55618AHOLDER, CONSOLE BOX CUP

main55618-22040iGX100,JZX10#,LX100,SX100..4FC..(AVT,AVTG,RAF)199609-199901

main55618-22050iGX100..5F..AVT;GX100,JZX100,LX100,SX100..TOU,TOUS,TOUV,XL199609-199902

main55618-22060iGX10#,JZX10#,LX100,SX100..4FC..(AVT,AVTG,XL)199901

main55618-22070iGX100..5F..AVT;GX100,JZX100,SX100..TOU,TOUS,TOUV,XL199902

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55619-22020-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

main55619-22020-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

main55619-22020-E0iGX100..5F..AVT199609

ORCHID BROWN,TRIM4#

main55619-22020-G0iGX100..5F..AVT;LX100,SX100..XL199609

DK.SAGE,TRIM6#

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-22040-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

main55620-22040-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

main55620-22040-E0iGX100..5F..AVT199609

ORCHID BROWN,TRIM4#

main55620-22040-G0iGX100..5F..AVT;LX100,SX100..XL199609

DK.SAGE,TRIM6#

55630AHOLDER, REAR CONSOLE BOX, CUP

main55630-22010-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

main55630-22010-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

main55630-22010-E0iGX100..5F..AVT199609

ORCHID BROWN,TRIM4#

main55630-22010-G0iGX100..5F..AVT;LX100,SX100..XL199609

main55630-22020-E0iGX100,JZX10#,LX100,SX100..4FC..(AVT,AVTG,RAF)199609-199808

ORCHID BROWN,TRIM4#

main55630-22020-G0iGX105,SX100199808

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-22160iGX100..5F199609-199808

main58804-22170iGX100,JZX100..5F..(TOU,TOUV)199609

main58804-22180iLX100,SX100..XL199609

main58804-22190iGX100,JZX100,105,LX100,SX100..4FC..(AVT,RAF)199609-199808

main58804-22200iJZX100,101,LX100..AVT,AVTG199609-199808

main58804-22220iGX100,JZX100..ATM..(TOU,TOUS,TOUV)199609

main58804-22230iLX100..XL199609-199808

main58804-22240iJZX100..AVT199804-199808

main58804-22250iGX100..4FC..AVT199804-199808

main58804-22260iGX100,JZX100..5F..(TOU,TOUV)199901-199907

main58804-22270iGX10#,JZX100,105,LX100,SX100..4FC..(AVT,XL)199808

main58804-22280iGX100,JZX100..ATM..(TOU,TOUS,TOUV)199901-199907

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-22120-B0iJZX100..5F199609-199808

DK.BLUE GRAY,TRIM1#

main58808-22120-C0iGX100,JZX100..5F..(TOU,TOUV)199808

BLACK,TRIM2#

main58808-22120-E0iGX100..5F..AVT199609

ORCHID BROWN,TRIM4#

main58808-22120-G0iGX100..5F..AVT199609

DK.SAGE,TRIM6#

58810JBOX ASSY, CONSOLE

main58810-22530-G0iLX100,SX100..XL199609

sub58810-22931

sub93560-55012

main58810-22550-E0iGX100..5F199609-199808

ORCHID BROWN,TRIM4#

sub58810-22931

sub93560-55012

main58810-22550-G0iGX100..5F199609-199808

DK.SAGE,TRIM6#

sub58810-22931

sub93560-55012

main58810-22570-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub58810-22931

sub93560-55012

main58810-22570-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub58810-22931

sub93560-55012

main58810-22580-E0iJZX100,101..AVTG199609-199610

ORCHID BROWN,TRIM4#

main58810-22580-G0iJZX100,101..AVTG199609-199610

main58810-22610-E0iGX100,JZX100,105,LX100..4FC..AVT199609-199610

ORCHID BROWN,TRIM4#

main58810-22610-G0iGX100,JZX100,105,LX100..4FC..AVT199609-199610

DK.SAGE,TRIM6#

main58810-22640-E0iGX100..5F..AVT199808

ORCHID BROWN,TRIM4#

sub58810-22931

sub93560-55012

main58810-22640-G0iGX100..5F..AVT199808

DK.SAGE,TRIM6#

sub58810-22931

sub93560-55012

main58810-22650-E1iJZX105;JZX100,101..AVTG199808

sub58810-22927

sub93540-54012

main58810-22650-G1iJZX105;JZX100,101..AVTG199808

sub58810-22927

sub93540-54012

main58810-22680-E0iJZX100,101..AVTG199610-199808

ORCHID BROWN,TRIM4#

sub58810-22929

sub93540-54012

main58810-22680-G0iJZX100,101..AVTG199610-199808

sub58810-22929

sub93540-54012

main58810-22710-E0iGX100,JZX100,105,LX100,SX100..4FC..(AVT,RAF)199610-199808

ORCHID BROWN,TRIM4#

sub58810-22929

sub93540-54012

main58810-22710-G0iGX100,JZX100,105,LX100,SX100..4FC..(AVT,RAF)199610-199808

DK.SAGE,TRIM6#

sub58810-22929

sub93540-54012

main58810-22730-E2iLX100199808-199908

sub58810-22928

sub93540-54012

main58810-22730-G3iLX100199808-199908

sub58810-22928

sub93540-54012

main58810-22760-C0iGX100,JZX100..TOU,TOUS,TOUV199901-199907

sub58810-22931

sub93560-55012

58811CCAP(FOR CONSOLE)

main90339-10014-B0×2iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

main90339-10014-B1×2iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199808

MD.GRAY,TRIM4#,6#

main90339-10014-C0×2iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

main90339-10014-E1×2iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199808

ORCHID,TRIM4#

main90339-10014-G1×2iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

SAGE,TRIM6#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-22270-G0iLX100,SX100..XL199609-200106

DK.SAGE,TRIM6#

main58905-22370-E0iGX100..5F199609-199808

ORCHID,TRIM4#

sub58905-22360

main58905-22370-G0iGX100..5F199609-199808

SAGE,TRIM6#

sub58905-22360

main58905-22390-B0iGX100,JZX100..TOU,TOUS,TOUV199808-200106

DK. BLUE GRAY,TRIM2#

main58905-22400-E0iJZX100,101..AVTG199609-200106

main58905-22400-G0iJZX100,101..AVTG199609-200106

main58905-22430-E0iGX100,JZX100,105,LX100,SX100..4FC..(AVT,RAF)199609-199808

ORCHID,TRIM4#

main58905-22430-G0iGX100,JZX100,105,LX100,SX100..4FC..(AVT,RAF)199609-199808

SAGE,TRIM6#

main58905-22460-E0iGX100..5F..AVT199808-200106

ORCHID,TRIM4#

main58905-22460-G0iGX100..5F..AVT199808-200106

SAGE,TRIM6#

main58905-22490-E1iGX10#,JZX100,105,LX100,SX100..4FC..(AVT,XL)199808-200106

ORCHID,TRIM4#

main58905-22490-G0iGX10#,JZX100,105,LX100,SX100..4FC..(AVT,XL)199808-200106

SAGE,TRIM60

main58905-22510-C0iGX100,JZX100..TOU,TOUS,TOUV199901-199907

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-22020×2iGX100..5F..AVT;GX100,JZX100,LX100,SX100..TOU,TOUS,TOUV,XL199609

main58907-22030×2iGX100,JZX10#,LX100,SX100..4FC..(AVT,AVTG,RAF)199609

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-22020-E0iSX100..XL;GX10#,JZX10#,LX100..4FC..(AVT,AVTG)199609

ORCHID BROWN,TRIM4#

main58908-22020-G0iSX100..XL;GX10#,JZX10#,LX100..4FC..(AVT,AVTG)199609

DK.SAGE,TRIM6#

58916MAT, BOX BOTTOM

main58916-22100iGX100..5F..AVT;GX100,JZX100,LX100,SX100..TOU,TOUS,TOUV,XL199609

main58916-22110iGX100,JZX10#,LX100,SX100..4FC..(AVT,AVTG,RAF)199609

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-22030iGX100,JZX100..5F199609

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-22070iGX10#,JZX10#,LX100,SX100199609

9010506170

main90105-06170

9011908358

main90119-08358

9011908482

main90119-08482

9015150013

main90151-50013

9015950287

main90159-50287

9046804177

main90468-04177

9046806080

main90468-06080

9353054010

main93530-54010

9354054012

main93540-54012

9356055012

main93560-55012

9356755018

main93567-55018

28 parts on this diagram · 2 diagrams in section
