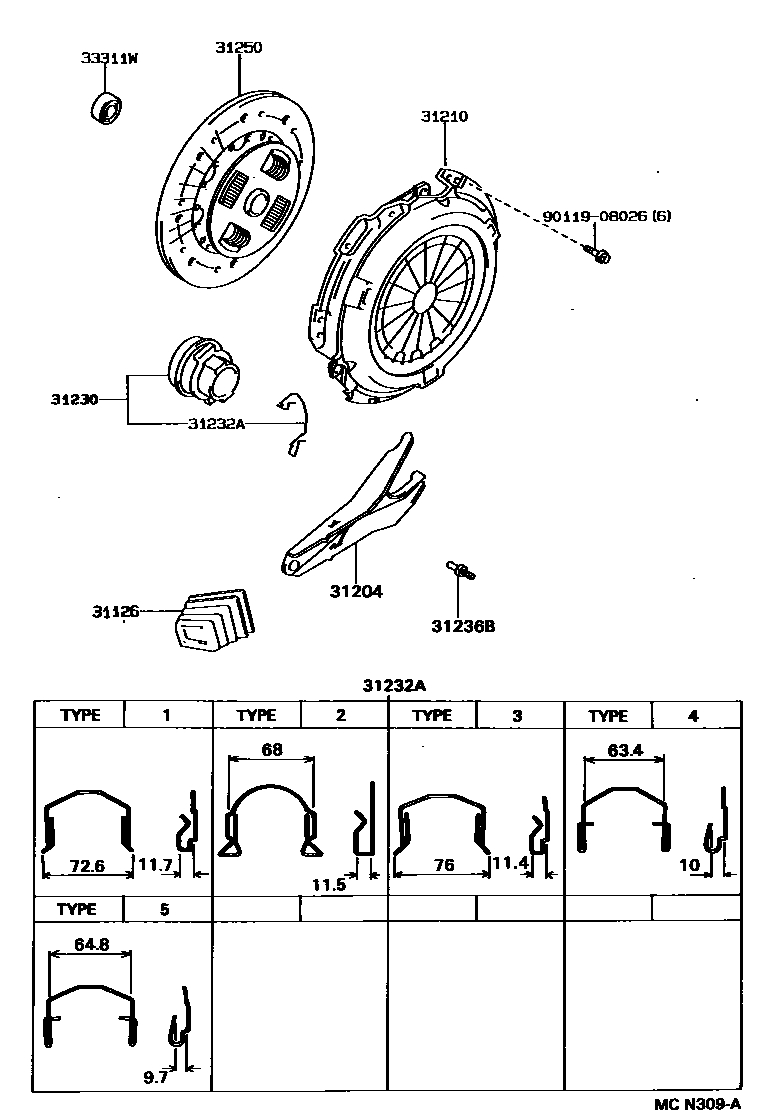

Toyota CHASER — CLUTCH & RELEASE FORK

0001 1W55,W57,W58 0002 1W55

31126BOOT, CLUTCH RELEASE FORK

main31126-14010iGX81..5F..TWT198808-199008

main31126-20060iYX80..5F198808-199210

main31126-20070iGX81,LX80,SX80..5F..(CI,DSL,HTWC,TD,TWC)198808-199210

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYX80..5F198808-199210

main31204-24011iGX81..5F..TWT198808-199008

main31204-35050iGX81,LX80,SX80..5F..(CI,DSL,HTWC,TD,TWC)198808-199210

31210COVER ASSY, CLUTCH

main31210-22100iGX81..5F..(HTWC,TWC)198808-199210

sub31210-22101

main31210-22120iSX80..5F..(XG,XL)198808-198908

sub31210-22121

main31210-24040iGX81..5F..TWT198808-198906

main31210-24041iGX81..5F..TWT198906-199008

sub31210-24042

main31210-26050iYX80..5F199007-199210

sub31210-30231

main31210-28020iSX80..5F198908-199008

sub31210-28021

main31210-30230iYX80..5F198908-199007

sub31210-30231

main31210-30250iLX80..DSL199110-199208

main31210-30251iLX80..DSL199208-199210

sub31210-35340

main31210-35090iLX80,SX80..5F..(DSL,HTWC)198808-199110

main31210-35110iLX80..5F..TD198808-199210

sub31210-53040

31230BEARING ASSY, CLUTCH RELEASE

main31230-14030iGX81..5F..TWT198808-199008

main31230-22090iLX80..5F..TD198808-199210

sub31230-22091

main31230-30150iYX80..5F198808-199210

main31230-35070iLX80,SX80..5F..(CI,DSL,HTWC)198808-199210

sub31230-35071

main31230-35090iGX81..5F..(HTWC,TWC)198808-199210

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-14010iGX81..5F..TWT198808-199008

TYPE 4

main31232-14020iGX81..5F..TWT198911-199008

TYPE 5

main31232-35010iYX80..5F198808-199008

main31232-35020iGX81,LX80,SX80..5F..(DSL,HTWC,TWC)199008-199210

main31232-35030iLX80,SX80..5F198808-199008

TYPE 2

main31232-35040iLX80..5F..TD199008-199110

TYPE 3

31236BSUPPORT, RELEASE FORK

main31236-14010iGX81..5F..TWT198808-199008

main31236-30060iGX81,LX80,SX80,YX80..5F..(AVT,KYO,SXL,XG,XL)198808-199210

31250DISC ASSY, CLUTCH

main31250-20121iSX80,YX80..5F..KYO198808-199010

sub31250-25122

main31250-22192iSX80..5F..(XG,XL)198808-198908

sub31250-22193

main31250-22230iGX81..5F..(HTWC,TWC)198808-199006

main31250-22231iGX81..5F..(HTWC,TWC)199006-199210

sub31250-22360

main31250-22240iGX81..5F..TWT198808-199008

sub31250-30390

main31250-22290iSX80..5F..(XG,XL)198908-199005

main31250-22300iSX80..5F..KYO199010-199210

sub31250-22301

main31250-22320iSX80..5F..(XG,XL)199005-199210

sub31250-35370

main31250-26103iLX80..5F..TD198808-198911

main31250-26104iLX80..5F..TD198911-199210

sub31250-26105

main31250-30381iYX80..5F199012-199210

sub31250-20260

main31250-35190iLX80..DSL198808-199210

sub31250-35221

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLX80,YX80..5F199008-199210

sub90363-12024

main90363-12003iGX81..5F198808-199210

main90363-12004iSX80..5F198808-199008

9011908026

main90119-08026

9 parts on this diagram · 2 diagrams in section
