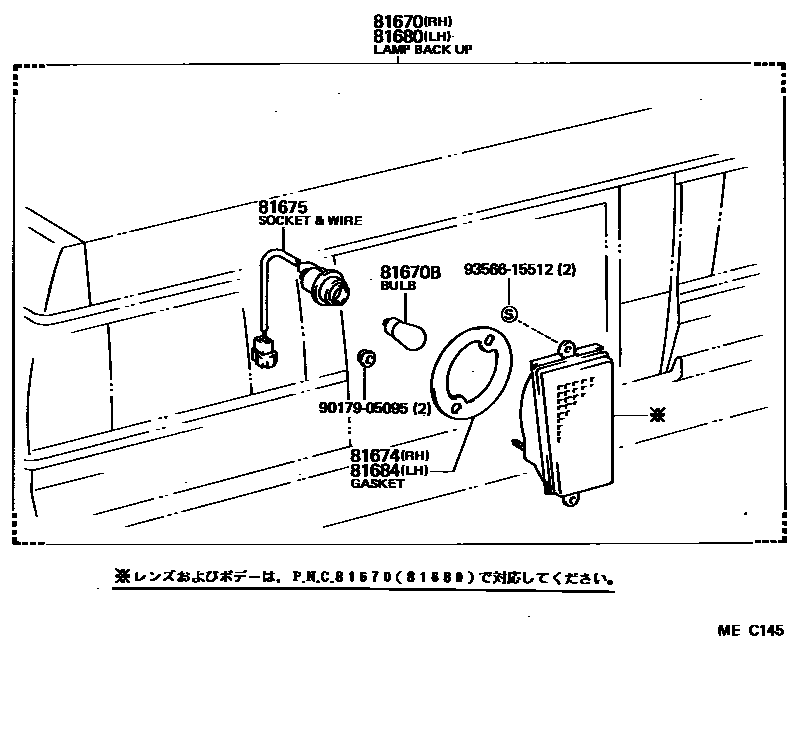

Toyota CHASER — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-29105i198208-198407

81670BBULB(FOR BACK-UP LAMP)

main99132-11230×2i198208-198407

81674GASKET, BACK-UP LAMP BODY, RH

main81557-95809i198208-198407

81675SOCKET & WIRE, BACK-UP LAMP

main81556-95809×2i198208-198407

81680LAMP ASSY, BACK UP, LH

main81680-29055i198208-198407

81684GASKET, BACK UP LAMP BODY, LH

main81557-95809i198208-198407

9017905095

main90179-05095

9356615512

main93566-15512

8 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota CHASER

This section contains 8 genuine Toyota parts for the BACK UP LAMP system of the Toyota CHASER. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), GASKET, BACK-UP LAMP BODY, RH, SOCKET & WIRE, BACK-UP LAMP, LAMP ASSY, BACK UP, LH.
