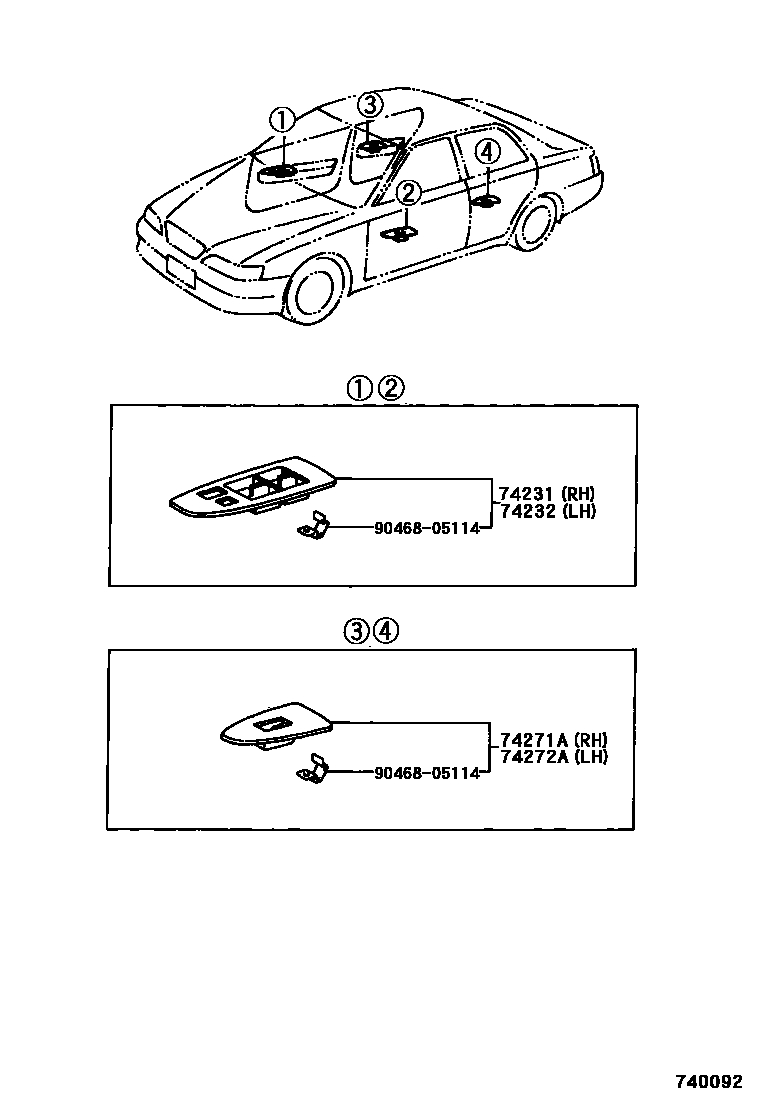

Toyota CHASER — ARMREST & VISOR

0001 1 0002 1

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-22300iLX100,SX100..XL199609

main74231-22310iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

main74231-22320iGX100,JZX100..TOU,TOUS,TOUV199609

main74231-22330iGX100,JZX100..4FC..AVT199708-199808

main74231-22340iGX100,JZX100..TOU,TOUS,TOUV199901-199907

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-22230iLX100,SX100..XL199609

main74232-22240iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

main74232-22250iGX100,JZX100..TOU,TOUS,TOUV199609

main74232-22260iGX100,JZX100..4FC..AVT199804-199808

main74232-22270iGX100,JZX100..TOU,TOUS,TOUV199901-199907

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-22170iLX100,SX100..XL199609

main74271-22180iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

main74271-22190iGX100,JZX100..TOU,TOUS,TOUV199609

main74271-22200iGX100,JZX100..4FC..AVT199804-199808

main74271-22210iGX100,JZX100..TOU,TOUS,TOUV199901-199907

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-22170iLX100,SX100..XL199609

main74272-22180iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

main74272-22190iGX100,JZX100..TOU,TOUS,TOUV199609

main74272-22200iGX100,JZX100..4FC..AVT199708-199808

main74272-22210iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199808

9046805114

main90468-05114

5 parts on this diagram · 2 diagrams in section
