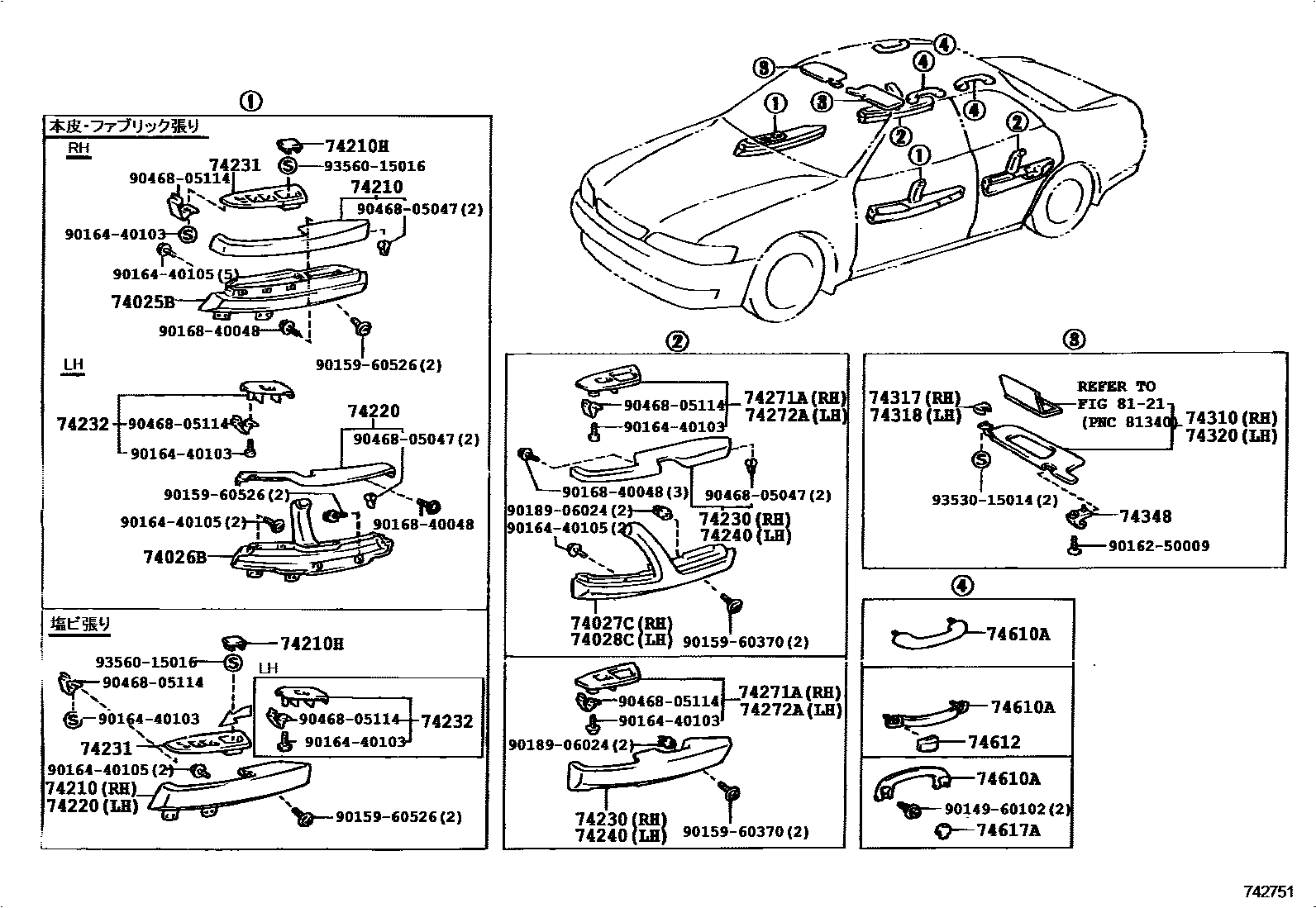

Toyota CHASER — ARMREST & VISOR

74025BBASE SUB-ASSY, FRONT ARMREST, LOWER RH

main74025-22010-E0i199210-199609

SABLE,TRIM4#

main74025-22010-G0i199210-199609

JADE,TRIM6#

main74025-22010-J0i199210-199409

GRAYISH BLUE,TRIM8#

74026BBASE SUB-ASSY, FRONT ARMREST, LOWER LH

main74026-22010-E0i199210-199609

SABLE,TRIM4#

main74026-22010-G0i199210-199609

JADE,TRIM6#

main74026-22010-J0i199210-199409

GRAYISH BLUE,TRIM8#

74027CBASE SUB-ASSY, REAR ARMREST, LOWER RH

main74027-22010-E0i199210-199609

SABLE,TRIM4#

main74027-22010-G0i199210-199609

JADE,TRIM6#

main74027-22010-J0i199210-199409

GRAYISH BLUE,TRIM8#

74028CBASE SUB-ASSY, REAR ARMREST, LOWER LH

main74028-22010-E0i199210-199609

SABLE,TRIM4#

main74028-22010-G0i199210-199609

JADE,TRIM6#

main74028-22010-J0i199210-199409

GRAYISH BLUE,TRIM8#

74210ARMREST ASSY, FRONT, RH

main74210-22160-E0i199210-199609

SABLE,TRIM4#

main74210-22160-G0i199210-199609

JADE,TRIM6#

main74210-22160-J0i199210-199609

GRAYISH BLUE,TRIM8#

main74210-22171-E2i199409-199609

BEIGE,TRIM4#

main74210-22171-G2i199409-199609

JADE,TRIM6#

main74210-22180-E0i199210-199609

main74210-22190-E0i199210-199409

BEIGE,TRIM4#

main74210-22190-G0i199210-199409

JADE,TRIM6#

main74210-22190-J0i199210-199409

GRAYISH BLUE,TRIM8#

74210HPLUG, HOLE (FOR DOOR ARMREST)

main90950-01500-01i199210-199409

BLACK,TRIM4#,8#

main90950-01500-01i199210-199409

BLACK,TRIM4#,6#,8#

main90950-01500-01i199210-199609

BLACK,TRIM4#,6#

main90950-01500-01i199210-199609

BLACK,TRIM6#,8#

main90950-01500-01i199409-199609

BLACK,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-22160-E0i199210-199609

SABLE,TRIM4#

main74220-22160-G0i199210-199609

JADE,TRIM6#

main74220-22160-J0i199210-199609

GRAYISH BLUE,TRIM8#

main74220-22171-E2i199409-199609

BEIGE,TRIM4#

main74220-22171-G2i199409-199609

JADE,TRIM6#

main74220-22180-E0i199210-199609

main74220-22190-E0i199210-199409

BEIGE,TRIM4#

main74220-22190-G0i199210-199409

JADE,TRIM6#

main74220-22190-J0i199210-199409

GRAYISH BLUE,TRIM8#

74230ARMREST ASSY, REAR, RH

main74250-22080-E0i199210-199609

SABLE,TRIM4#

main74250-22080-G0i199210-199609

JADE,TRIM6#

main74250-22080-J0i199210-199609

GRAYISH BLUE,TRIM8#

main74250-22091-E2i199409-199609

BEIGE,TRIM4#

main74250-22091-G2i199409-199609

JADE,TRIM6#

main74250-22100-E0i199210-199609

main74250-22110-E0i199210-199409

BEIGE,TRIM4#

main74250-22110-G0i199210-199409

JADE,TRIM6#

main74250-22110-J0i199210-199409

GRAYISH BLUE,TRIM8#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-22270i199210-199609

main74231-22280i199210-199409

main74231-22280i199304-199309

main74231-22280i199310-199408

main74231-22281i199409-199609

main74231-22290i199210-199409

main74231-22291i199409-199609

main74231-22291i199412-199609

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-22200i199210-199609

main74232-22210i199210-199409

main74232-22210i199304-199309

main74232-22210i199310-199408

main74232-22211i199409-199609

main74232-22220i199210-199409

main74232-22221i199409-199609

main74232-22221i199412-199609

74240ARMREST ASSY, REAR, LH

main74260-22080-E0i199210-199609

SABLE,TRIM4#

main74260-22080-G0i199210-199609

JADE,TRIM6#

main74260-22080-J0i199210-199609

GRAYISH BLUE,TRIM8#

main74260-22091-E2i199409-199609

BEIGE,TRIM4#

main74260-22091-G2i199409-199609

JADE,TRIM6#

main74260-22100-E0i199210-199609

main74260-22110-E0i199210-199409

BEIGE,TRIM4#

main74260-22110-G0i199210-199409

JADE,TRIM6#

main74260-22110-J0i199210-199409

GRAYISH BLUE,TRIM8#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-22110i199210-199609

main74271-22120i199210-199409

main74271-22120i199304-199309

main74271-22120i199310-199408

main74271-22121i199409-199609

main74271-22130i199210-199409

main74271-22131i199409-199609

main74271-22131i199412-199609

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-22110i199210-199609

main74272-22120i199210-199409

main74272-22120i199304-199309

main74272-22120i199310-199408

main74272-22121i199409-199609

main74272-22130i199210-199409

main74272-22131i199409-199609

main74272-22131i199412-199609

74310VISOR ASSY, RH

main74310-22750-A0i199210-199310

IVORY,TRIM4#

main74310-22750-A2i199310-199506

IVORY,TRIM4#

main74310-22750-G0i199210-199301

LI. SPRUCE,TRIM6#

main74310-22750-G2i199301-199506

LI. SPRUCE,TRIM6#

main74310-22750-J0i199210-199310

LI. BLUE,TRIM8#

main74310-22750-J2i199310-199409

LI. BLUE,TRIM8#

main74310-22751-A2i199506-199609

IVORY,TRIM4#

main74310-22751-G2i199506-199609

LT. SPRUCE,TRIM6#

main74310-22760-A0i199304-199309

main74310-22760-A0i199210-199310

IVORY,TRIM4#

main74310-22760-A1i199310-199506

IVORY,TRIM4#

main74310-22760-G0i199210-199301

LI. SPRUCE,TRIM6#

main74310-22760-G1i199304-199309

main74310-22760-G1i199301-199506

LI. SPRUCE,TRIM6#

main74310-22760-J0i199210-199310

LI. BLUE,TRIM8#

main74310-22760-J1i199310-199506

LI. BLUE,TRIM8#

main74310-22761-A1i199506-199609

IVORY,TRIM4#

main74310-22761-G1i199506-199609

LT. SPRUCE,TRIM6#

main74310-22761-J1i199506-199609

LT. BLUE,TRIM8#

main74310-22780-A0i199210-199310

main74310-22780-A1i199310-199506

main74310-22780-G0i199210-199301

main74310-22780-G1i199301-199506

main74310-22780-J0i199210-199310

main74310-22780-J1i199310-199506

main74310-22781-A1i199506-199609

main74310-22781-G1i199506-199609

main74310-22781-J1i199506-199609

74317COVER, VISOR BRACKET, RH

main74317-22030-A0i199210-199609

IVORY,TRIM4#

main74317-22030-G0i199210-199609

LI. SPRUCE,TRIM6#

main74317-22030-J0i199210-199609

LI. BLUE,TRIM8#

74318COVER, VISOR BRACKET, LH

main74317-22030-A0i199210-199609

IVORY,TRIM4#

main74317-22030-G0i199210-199609

LI. SPRUCE,TRIM6#

main74317-22030-J0i199210-199609

LI. BLUE,TRIM8#

74320VISOR ASSY, LH

main74320-22740-A1i199210-199310

IVORY,TRIM4#

main74320-22740-A3i199310-199609

IVORY,TRIM4#

main74320-22740-J1i199210-199310

LI. BLUE,TRIM8#

main74320-22740-J3i199310-199409

LI. BLUE,TRIM8#

main74320-22750-A0i199210-199310

IVORY,TRIM4#

main74320-22750-A2i199310-199609

IVORY,TRIM4#

main74320-22750-G0i199210-199301

LI. SPRUCE,TRIM6#

main74320-22750-G2i199301-199609

LI. SPRUCE,TRIM6#

main74320-22750-J0i199210-199310

LI. BLUE,TRIM8#

main74320-22750-J2i199310-199409

LI. BLUE,TRIM8#

main74320-22760-A0i199304-199309

main74320-22760-A0i199210-199310

IVORY,TRIM4#

main74320-22760-A1i199310-199609

IVORY,TRIM4#

main74320-22760-G0i199210-199301

LI. SPRUCE,TRIM6#

main74320-22760-G1i199301-199609

LI. SPRUCE,TRIM6#

main74320-22760-G1i199304-199309

main74320-22760-J0i199210-199310

LI. BLUE,TRIM8#

main74320-22760-J1i199310-199609

LI. BLUE,TRIM8#

main74320-22780-A0i199210-199310

main74320-22780-A1i199310-199609

main74320-22780-G0i199210-199301

main74320-22780-G1i199301-199609

main74320-22780-J0i199210-199310

main74320-22780-J1i199310-199609

74348HOLDER, VISOR

main74348-22020-A0i199210-199609

IVORY,TRIM4#

main74348-22020-G0i199210-199609

LI. SPRUCE,TRIM6#

main74348-22020-J0i199210-199609

LI. BLUE,TRIM8#

74610AGRIP SUB-ASSY, ASSIST

main74610-22070-A1i199210-199609

main74610-22070-G0i199210-199609

main74610-22070-J1i199210-199609

main74610-22080-A0i199210-199609

IVORY,TRIM4#

main74610-22080-G0i199210-199609

LI. SPRUCE,TRIM6#

main74610-22080-J0i199210-199609

LI. BLUE,TRIM8#

main74610-22090-A0i199210-199609

IVORY,TRIM4#

main74610-22090-J0i199210-199409

LI. BLUE,TRIM8#

74612COVER, ASSIST GRIP

main74612-22050-A1i199210-199609

IVORY,TRIM4#

main74612-22050-G0i199210-199609

LI.SPRUCE,TRIM6#

main74612-22050-J1i199210-199609

LI. BLUE,TRIM8#

74617APLUG, ASSIST GRIP

main74617-22030-A0i199210-199609

IVORY,TRIM4#

main74617-22030-G0i199210-199609

LI. SPRUCE,TRIM6#

main74617-22030-J0i199210-199609

LI. BLUE,TRIM8#

8121INTERIOR LAMP

→ Go to FIG 81-21

9014960102

main90149-60102

9015960370

main90159-60370

9015960526

main90159-60526

9016250009

main90162-50009

9016440103

main90164-40103

9016440105

main90164-40105

9016840048

main90168-40048

9018906024

main90189-06024

9046805047

main90468-05047

9046805114

main90468-05114

9353015014

main93530-15014

9356015016

main93560-15016

34 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota CHASER

This section contains 34 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CHASER. Key components include: BASE SUB-ASSY, FRONT ARMREST, LOWER RH, BASE SUB-ASSY, FRONT ARMREST, LOWER LH, BASE SUB-ASSY, REAR ARMREST, LOWER RH, BASE SUB-ASSY, REAR ARMREST, LOWER LH, ARMREST ASSY, FRONT, RH.
