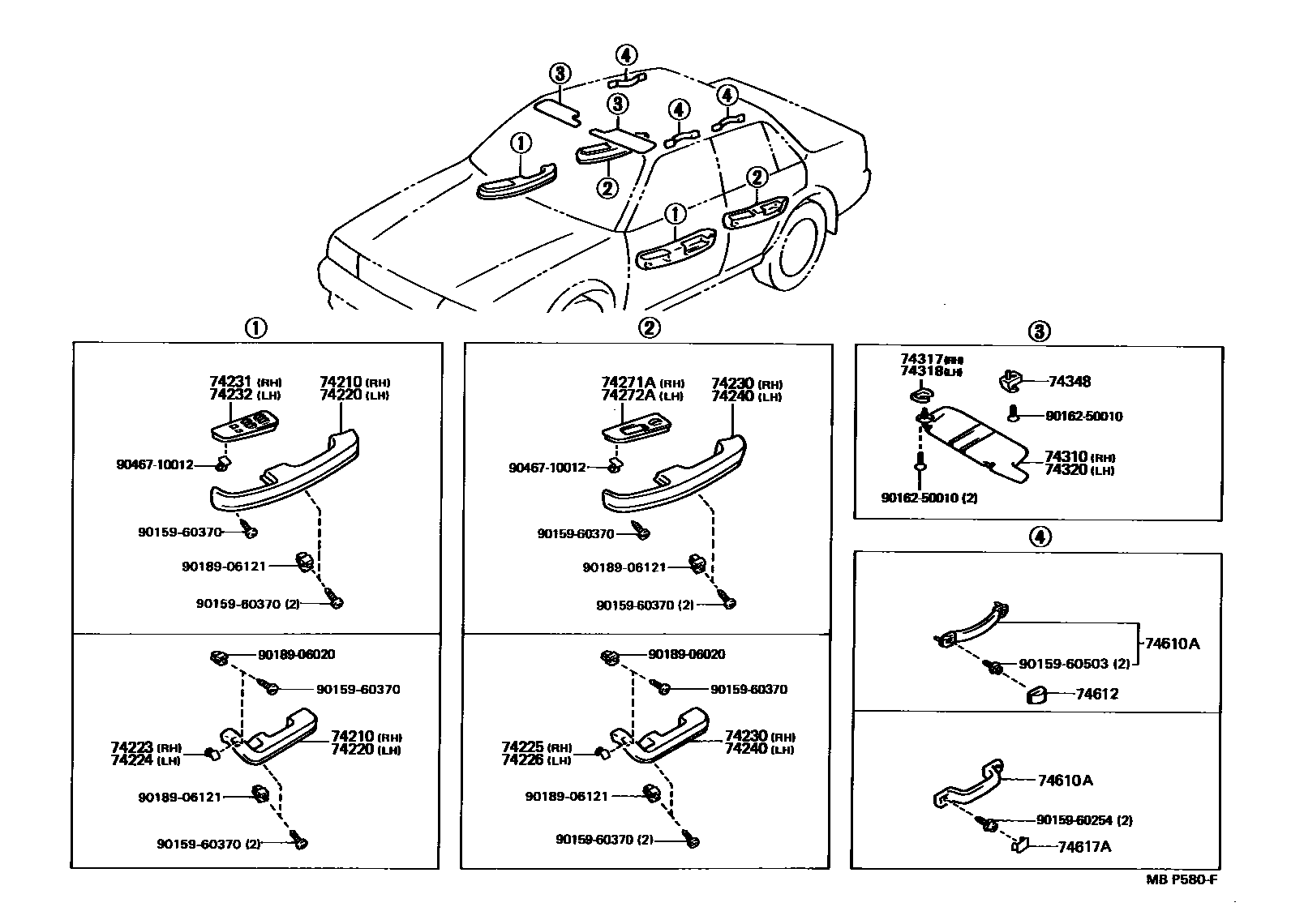

Toyota CHASER — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-22140-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

NEW MAROON,TRIM3#

main74210-22140-03iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

MEDIUM GRAY,TRIM1#

main74210-22140-04iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

DARK BLUE,TRIM8#

main74210-22140-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

SABLE,TRIM4#

main74210-22150-03iLX80,SX80,YX80..KYO,XL199008-199102

MEDIUM GRAY,TRIM1#

main74210-22150-04iLX80,SX80,YX80..KYO,XL198808-199008

DARK BLUE,TRIM8#

main74210-22150-06iLX80,SX80..XL198808-199102

SABLE,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-22130-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

NEW MAROON,TRIM3#

main74220-22130-03iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

MEDIUM GRAY,TRIM1#

main74220-22130-04iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

DARK BLUE,TRIM8#

main74220-22130-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

SABLE,TRIM4#

main74220-22140-03iLX80,SX80,YX80..KYO,XL199008-199102

MEDIUM GRAY,TRIM1#

main74220-22140-04iLX80,SX80,YX80..KYO,XL198808-199008

DARK BLUE,TRIM8#

main74220-22140-06iLX80,SX80..XL198808-199102

SABLE,TRIM4#

74223CAP, DOOR ARMREST, RH

main74223-22020-03iLX80,SX80,YX80..KYO,XL199008-199210

MEDIUM GRAY,TRIM1#

main74223-22020-04iLX80,SX80,YX80..KYO,XL198808-199008

DARK BLUE,TRIM8#

main74223-22020-06iLX80,SX80..XL198808-199210

SABLE,TRIM4#

74224CAP, DOOR ARMREST, LH

main74224-22020-03iLX80,SX80,YX80..KYO,XL199008-199210

MEDIUM GRAY,TRIM1#

main74224-22020-04iLX80,SX80,YX80..KYO,XL198808-199008

DARK BLUE,TRIM8#

main74224-22020-06iLX80,SX80..XL198808-199210

SABLE,TRIM4#

74225CAP, DOOR ARMREST, REAR RH

main74223-22020-03iLX80,SX80,YX80..KYO,XL199008-199210

MEDIUM GRAY,TRIM1#

main74223-22020-04iLX80,SX80,YX80..KYO,XL198808-199008

DARK BLUE,TRIM8#

main74223-22020-06iLX80,SX80..XL198808-199210

SABLE,TRIM4#

74226CAP, DOOR ARMREST, REAR LH

main74224-22020-03iLX80,SX80,YX80..KYO,XL199008-199210

MEDIUM GRAY,TRIM1#

main74224-22020-04iLX80,SX80,YX80..KYO,XL198808-199008

DARK BLUE,TRIM8#

main74224-22020-06iLX80,SX80..XL198808-199210

SABLE,TRIM4#

74230ARMREST ASSY, REAR, RH

main74210-22150-03iLX80,SX80,YX80..KYO,XL199008-199102

MEDIUM GRAY,TRIM1#

main74210-22150-04iLX80,SX80,YX80..KYO,XL198808-199008

DARK BLUE,TRIM8#

main74210-22150-06iLX80,SX80..XL198808-199102

SABLE,TRIM4#

main74250-22070-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

NEW MAROON,TRIM3#

main74250-22070-03iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

MEDIUM GRAY,TRIM1#

main74250-22070-04iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

DARK BLUE,TRIM8#

main74250-22070-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

SABLE,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-22230iGX81,LX80,SX80..SXL,XG198808-199210

main74231-22260iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-22170iGX81,LX80,SX80..SXL,XG198808-199210

main74232-22190iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

74240ARMREST ASSY, REAR, LH

main74220-22140-03iLX80,SX80,YX80..KYO,XL199008-199102

MEDIUM GRAY,TRIM1#

main74220-22140-04iLX80,SX80,YX80..KYO,XL198808-199008

DARK BLUE,TRIM8#

main74220-22140-06iLX80,SX80..XL198808-199102

SABLE,TRIM4#

main74260-22060-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

NEW MAROON,TRIM3#

main74260-22060-03iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

MEDIUM GRAY,TRIM1#

main74260-22060-04iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

DARK BLUE,TRIM8#

main74260-22060-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

SABLE,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-22090iGX81,LX80,SX80..SXL,XG198808-199210

main74271-22100iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-22090iGX81,LX80,SX80..SXL,XG198808-199210

main74272-22100iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

74310VISOR ASSY, RH

main74310-22550-02iGX81,MX83..SPC,TWC,TWT198808-199008

NEW MAROON,TRIM3#

main74310-22550-03iGX81,JZX81,MX83..TWC,TWT199008-199210

MEDIUM GRAY,TRIM1#

main74310-22550-12iGX81,JZX81,MX83..TWC,TWT199008-199210

NEW MAROON,TRIM3#

main74310-22550-14iGX81,MX83..SPC,TWC,TWT198808-199008

DARK BLUE,TRIM8#

main74310-22550-16iGX81,MX83..SPC,TWC,TWT198808-199008

SABLE,TRIM4#

main74310-22550-26iGX81,JZX81,MX83..TWC,TWT199008-199210

SABLE,TRIM4#

main74310-22560-02iGX81,MX83..AVT,AVTG,GT198808-199008

main74310-22560-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

main74310-22560-04iGX81,MX83..AVT,AVTG,GT198808-199008

main74310-22560-06iGX81,MX83..AVT,AVTG,GT198808-199008

main74310-22560-12iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

main74310-22560-16iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

main74310-22700-02iGX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD)199008-199210

NEW MAROON,TRIM3#

main74310-22700-03iGX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD)199008-199210

MEDIUM GRAY,TRIM1#

main74310-22700-04iGX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD)198808-199008

LIGHT BLUE,TRIM8#

main74310-22700-06iGX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD)198808-199008

LIGHT SABLE,TRIM3#,4#

main74310-22700-16iGX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD)199008-199210

SABLE,TRIM4#

main74310-91601-03iLX80,SX80,YX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

main74310-91601-04iLX80,SX80,YX80..KYO198808-199008

LIGHT BLUE,TRIM8#

main74310-91605-03iLX80,SX80..XL199008-199210

MEDIUM GRAY,TRIM1#

main74310-91605-04iLX80,SX80..XL198808-199008

LIGHT BLUE,TRIM8#

main74310-91605-06iLX80,SX80..XL198808-199210

LIGHT SABLE,TRIM4#

74317COVER, VISOR BRACKET, RH

main74317-22010-02iGX81,MX83..AVT,AVTG,GT198808-199008

NEW MAROON,TRIM3#

main74317-22010-04iGX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199008

LIGHT BLUE,TRIM8#

main74317-22010-06iLX80,SX80..XL198808-199008

LIGHT SABLE,TRIM4#

main74317-22010-13iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

main74317-22010-14iGX81,MX83..AVT,AVTG,GT198808-199008

DARK BLUE,TRIM8#

main74317-22010-16iGX81,MX83..AVT,AVTG,GT198808-199008

SABLE,TRIM4#

main74317-22010-22iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

NEW MAROON,TRIM3#

74318COVER, VISOR BRACKET, LH

main74318-22010-02iGX81,MX83..AVT,AVTG,GT198808-199008

NEW MAROON,TRIM3#

main74318-22010-04iGX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199008

LIGHT BLUE,TRIM8#

main74318-22010-06iLX80,SX80..XL198808-199008

LIGHT SABLE,TRIM4#

main74318-22010-13iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

main74318-22010-14iGX81,MX83..AVT,AVTG,GT198808-199008

DARK BLUE,TRIM8#

main74318-22010-16iGX81,MX83..AVT,AVTG,GT198808-199008

SABLE,TRIM4#

main74318-22010-22iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

NEW MAROON,TRIM3#

74320VISOR ASSY, LH

main74320-22580-02iGX81,MX83..SPC,TWC,TWT198808-199008

NEW MAROON,TRIM3#

main74320-22580-03iGX81,JZX81,MX83..TWC,TWT199008-199210

MEDIUM GRAY,TRIM1#

main74320-22580-12iGX81,JZX81,MX83..TWC,TWT199008-199210

NEW MAROON,TRIM3#

main74320-22580-14iGX81,MX83..SPC,TWC,TWT198808-199008

DARK BLUE,TRIM8#

main74320-22580-16iGX81,MX83..SPC,TWC,TWT198808-199008

SABLE,TRIM4#

main74320-22580-26iGX81,JZX81,MX83..TWC,TWT199008-199210

SABLE,TRIM4#

main74320-22590-02iGX81,MX83..AVT,AVTG,GT198808-199008

main74320-22590-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

main74320-22590-04iGX81,MX83..AVT,AVTG,GT198808-199008

main74320-22590-06iGX81,MX83..AVT,AVTG,GT198808-199008

main74320-22590-12iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

main74320-22590-16iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

main74320-22730-02iGX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD)199008-199210

NEW MAROON,TRIM3#

main74320-22730-03iGX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD)199008-199210

MEDIUM GRAY,TRIM1#

main74320-22730-04iGX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD)198808-199008

LIGHT BLUE,TRIM8#

main74320-22730-06iGX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD)198808-199008

LIGHT SABLE,TRIM3#,4#

main74320-22730-16iGX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD)199008-199210

SABLE,TRIM4#

main74320-91601-03iLX80,SX80,YX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

main74320-91601-04iLX80,SX80,YX80..KYO198808-199008

LIGHT BLUE,TRIM8#

main74320-91605-03iLX80,SX80..XL199008-199210

MEDIUM GRAY,TRIM1#

main74320-91605-04iLX80,SX80..XL198808-199008

LIGHT BLUE,TRIM8#

main74320-91605-06iLX80,SX80..XL198808-199210

LIGHT SABLE,TRIM4#

74348HOLDER, VISOR

main74348-91601-02×2iGX81,MX83..AVT,AVTG,GT198808-199008

NEW MAROON,TRIM3#

main74348-91601-04×2iGX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199008

LIGHT BLUE,TRIM8#

main74348-91601-06×2iLX80,SX80..XL198808-199008

LIGHT SABLE,TRIM4#

main74348-91601-12×2iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

NEW MAROON,TRIM3#

main74348-91601-13×2iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

main74348-91601-14×2iGX81,MX83..AVT,AVTG,GT198808-199008

DARK BLUE,TRIM8#

main74348-91601-16×2iGX81,MX83..AVT,AVTG,GT198808-199008

SABLE,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74610-22060-02×3iGX81..AVT..HTWC199008-199210

NEW MAROON,TRIM3#

main74610-22060-03×3iGX81..AVT..HTWC199008-199210

MEDIUM GRAY,TRIM1#

main74610-22060-04×3iGX81..AVT..HTWC198808-199008

LIGHT BLUE,TRIM8#

main74610-22060-06×3iGX81..AVT..HTWC198808-199008

LIGHT SABLE,TRIM3#,4#

main74610-22070-04×3iGX81..AVT..HTWC198808-199008

LIGHT BLUE,TRIM8#

sub74610-33060

main74610-22070-06×3iGX81..AVT..HTWC198808-199008

sub74610-33060

main74610-22070-13×3iGX81..AVT..HTWC199008-199109

sub74610-33060

main74610-22070-22×3iGX81..AVT..HTWC199008-199210

sub74610-33060

main74610-22070-B0×3iGX81..AVT..HTWC199109-199210

sub74610-33060

main74610-32010-12×3iGX81,LX80,SX80..SXL,XG199008-199210

NEW MAROON,TRIM3#

sub74610-20040

main74610-32010-13×3iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL199008-199210

GRAY,TRIM1#

sub74610-20040

main74610-32010-26×3iLX80,SX80..XL198808-199008

LIGHT SABLE,TRIM4#

sub74610-20040

main74610-32010-34×3iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

LIGHT BLUE,TRIM8#

sub74610-20040

74612COVER, ASSIST GRIP

main74612-22050-04×6iGX81,MX83..AVT,AVTG,GT198808-199008

LIGHT BLUE,TRIM8#

sub74612-20050

main74612-22050-06×6iGX81,MX83..AVT,AVTG,GT198808-199008

LIGHT SABLE,TRIM3#,4#

sub74612-20050

main74612-22050-22×6iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

MAUVE,TRIM3#

sub74612-20050

main74612-22050-23×6iGX81,JZX81,MX83..AVT,AVTG,GT199008-199106

MEDIUM GRAY,TRIM1#

sub74612-20050

main74612-22050-B0×6iGX81,JZX81,MX83..AVT,AVTG,GT199106-199210

LIGHT GRAY,TRIM1#

sub74612-20050

74617APLUG, ASSIST GRIP

main74617-16010-39×6iGX81,LX80,SX80..SXL,XG199008-199210

NEW MAROON,TRIM3#

main74617-16010-47×6iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL199008-199210

LIGHT GRAY,TRIM1#

main74617-16010-54×6iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

LIGHT BLUE,TRIM8#

main74617-16010-56×6iGX81,LX80,SX80..SXL,XG,XL199008-199210

LIGHT SABLE,TRIM4#

9015960254

main90159-60254

9015960370

main90159-60370

9015960503

main90159-60503

9016250010

main90162-50010

9018906020

main90189-06020

9018906121

main90189-06121

9046710012

main90467-10012

27 parts on this diagram · 1 diagram in section
