Toyota CHASER — ANTENNA
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86101CORD SUB-ASSY, ANTENNA
MATSUSHITA
TEN
86101DCORD SUB-ASSY, ANTENNA, NO.3
MATSUSHITA
TEN
86300ANTENNA ASSY, W/HOLDER
8271130020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-30020
8639422010
main86394-22010
9033903005
main90339-03005
9046805029
main90468-05029

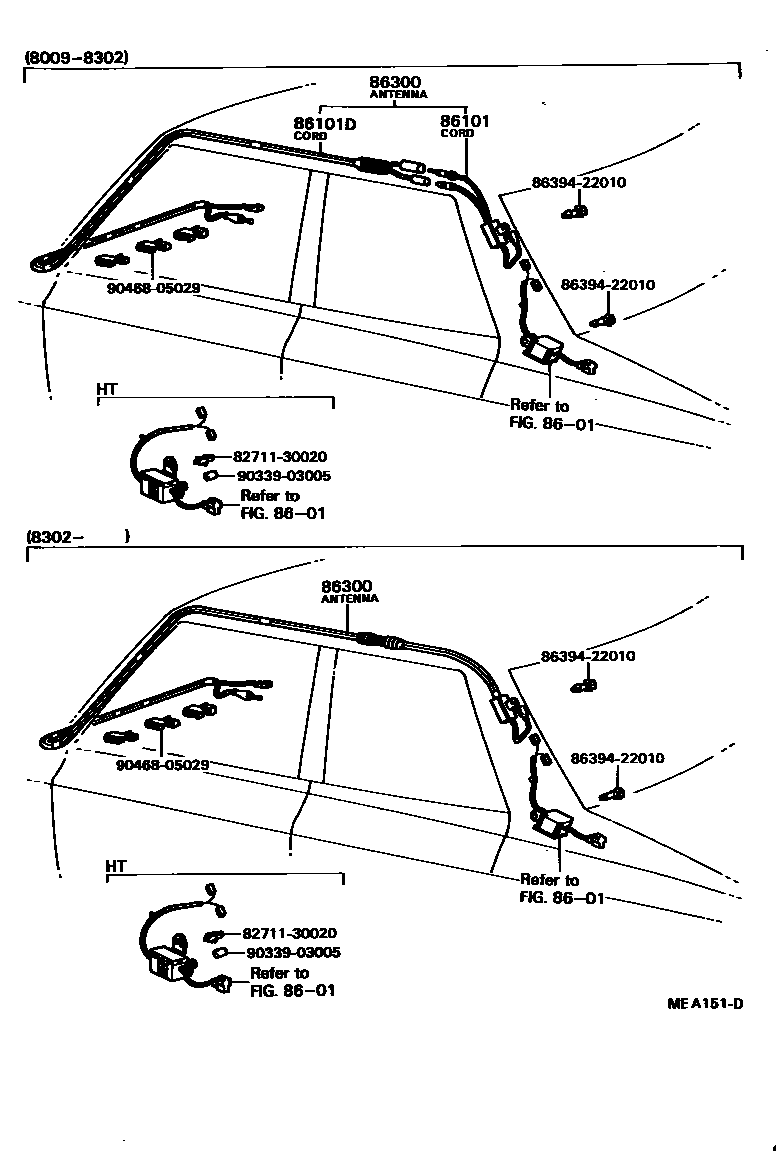

8 parts on this diagram · 1 diagram in section
ANTENNA for Toyota CHASER
This section contains 8 genuine Toyota parts for the ANTENNA system of the Toyota CHASER. Key components include: RADIO RECEIVER & AMPLIFIER & CONDENSER, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, ANTENNA ASSY, W/HOLDER, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
