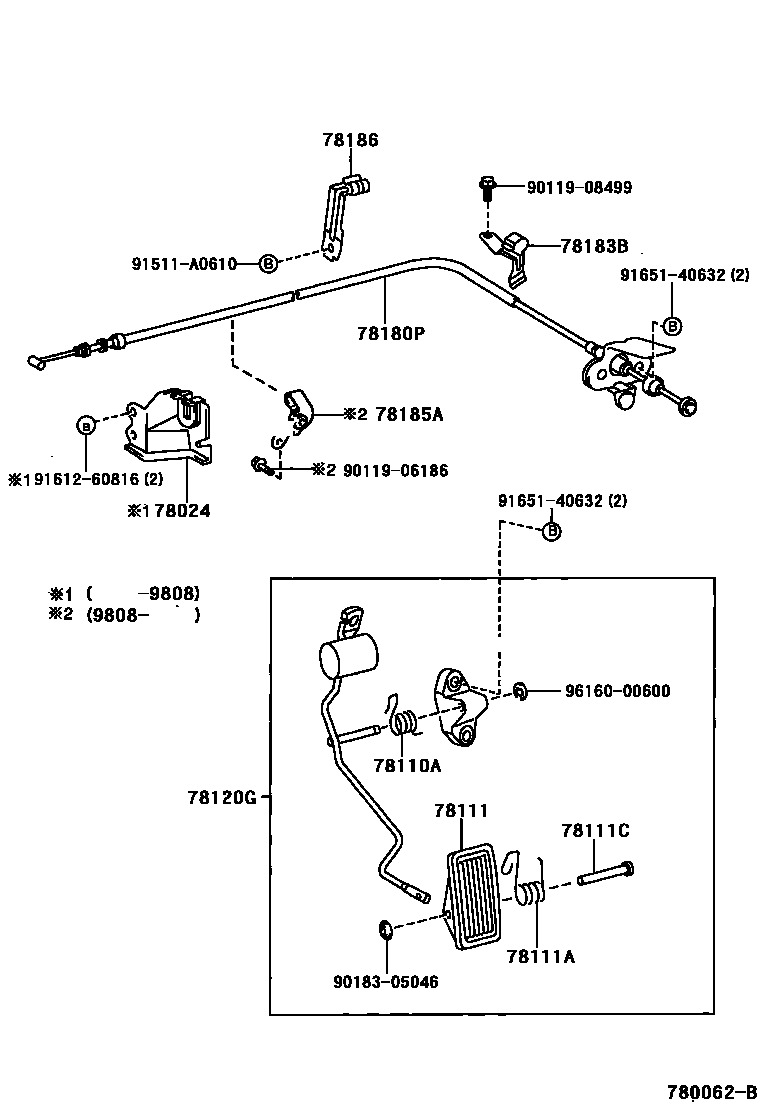

Toyota CHASER — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-22200iSX100199704

main78024-26020iLX100199609-199908

main78024-30100iGX100199609-199610

main78024-30101iGX100199610-199808

main78024-88400iJZX100..TOUV199609

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060iGX100,LX100,SX100..4FC199609-199808

main90508-26054iGX105;GX100..5F;JZX100..TOUV199609

main90959-03059iJZX10#..AVT,AVTG,TOUS199609

main90959-03102iGX100..4FC199808

78111PEDAL, ACCELERATOR

main78111-22020iGX10#,JZX10#,LX100,SX100199609

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23108iGX10#,JZX10#,LX100,SX100199609

78111CPIN (FOR ACCELERATOR PEDAL)

main90241-05022iGX10#,JZX10#,LX100,SX100199609

78120GROD ASSY, ACCELERATOR PEDAL

main78120-22330iGX105;GX100..5F;JZX100..TOUV199609

main78120-22360iGX100,LX100,SX100..4FC199609-199808

main78120-22370iJZX10#..AVT,AVTG,TOUS199609

main78120-22380iGX100..4FC199808

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2A540iJZX101199609-199808

main78180-2A550iSX100199704

main78180-2A560iJZX100,105..4FC..(AVT,AVTG,TOUS)199609

main78180-2A580iJZX100..TOUV199609

main78180-2A590iLX100199609-199908

main78180-2A610iGX100199609-199808

main78180-2A620iJZX100..AVT,AVTG,TOUS199808

main78180-2A630iJZX101199808

main78180-2A640iGX10#199808

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-30130iGX10#,JZX10#,LX100,SX100199609

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-22070iJZX100..TOUV199609

main78185-22100iGX10#199808

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-22100iJZX100..TOUV199808

main78186-22110iJZX100,105,LX100..4FC..(AVT,AVTG,TOUS,XL)199609

main78186-22130iSX100199704

main78186-22140iGX10#199808

9011906186

main90119-06186

9011908499

main90119-08499

9018305046

main90183-05046

91511A0610

main91511-A0610

9161260816

main91612-60816

9165140632

main91651-40632

9616000600

main96160-00600

17 parts on this diagram · 4 diagrams in section
