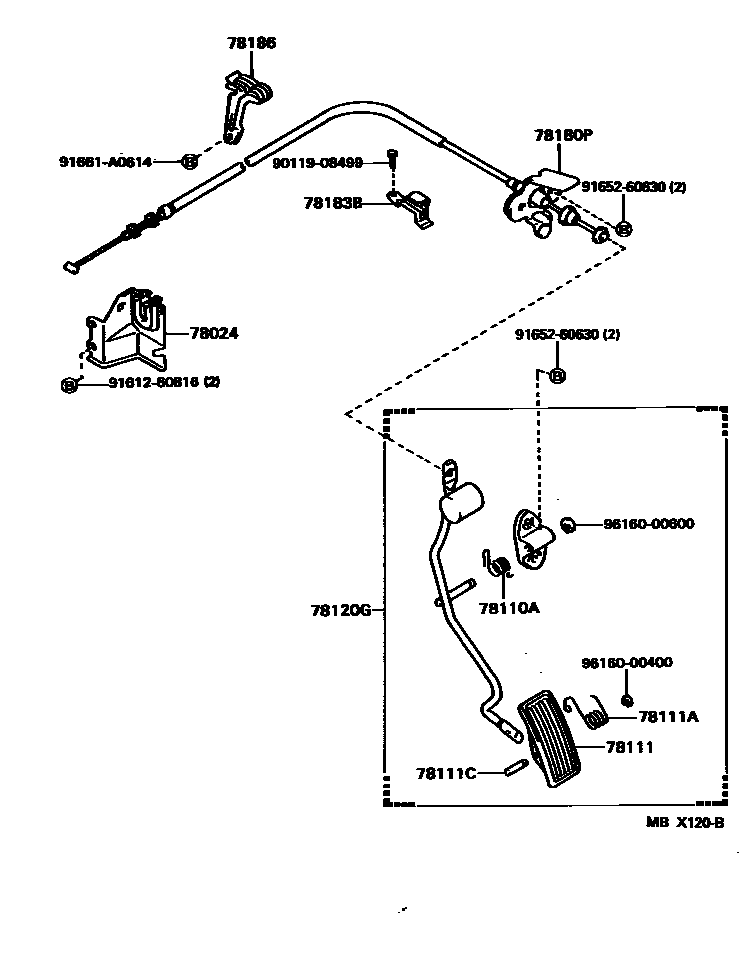

Toyota CHASER — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-22110iGX90199210-199211

sub78024-30100

main78024-22190iSX90199210-199609

main78024-26020iLX90199403-199609

main78024-30100iGX90199211-199609

sub78024-30101

main78024-30151iLX90199210-199403

sub78024-26020

main78024-88400iJZX90..ATM..TOUV199210-199609

main78024-88401iJZX90..MTM199210-199609

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060iJZX90..ATM..TOUV;GX90,JZX91,LX90,SX90..ATM199210-199609

main90508-18103iJZX90,93..AVT,AVTG,TOUS199210-199609

main90508-26054iGX90,JZX90,LX90,SX90..MTM199210-199609

78111PEDAL, ACCELERATOR

main78111-22010iGX90,JZX9#,LX90,SX90199210-199609

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23108iGX90,JZX9#,LX90,SX90199210-199609

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iGX90,JZX9#,LX90,SX90199210-199609

78120GROD ASSY, ACCELERATOR PEDAL

main78120-22320iJZX90,93..AVT,AVTG,TOUS199210-199609

main78120-22340iGX90,JZX90,LX90,SX90..MTM199210-199609

main78120-22350iJZX90..ATM..TOUV;GX90,JZX91,LX90,SX90..ATM199210-199609

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2A470iLX90199210-199609

main78180-2A480iJZX9#..AVT,AVTG,TOUS199210-199609

main78180-2A490iJZX90..TOUV199210-199609

main78180-2A500iGX90199210-199609

sub78180-2A610

main78180-2A510iSX90199210-199609

main78180-2A530iLX90..MTM199405-199609

sub78180-2A590

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-22080iJZX90,LX90..ATM..(AVT,AVTG,RAF,TOUS)199210-199409

main78183-22080iJZX91;JZX90..TOUV199210-199609

main78183-22090iGX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS,XL199210-199609

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-22100iJZX90..TOUV199210-199609

main78186-22110iGX90,JZX9#,LX90..AVT,AVTG,RAF,TOUS,XL199210-199609

main78186-22130iSX90199210-199609

9011908499

main90119-08499

9161260816

main91612-60816

9165260630

main91652-60630

91661A0614

main91661-A0614

9616000400

main96160-00400

9616000600

main96160-00600

15 parts on this diagram · 4 diagrams in section
