Toyota CENTURY — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-30040i196711-197309

main85033-40010i197505-197811

main85332-30050i197811-198209

main85332-40010i197309-197505

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12020i197505-197702

main85310-20100i197702-197811

main85310-20110i197811-198209

main85310-40020i196711-197309

main85310-40021i197309-197505

85316SUPPORT, WINDSHIELD WASHER MOTOR

main85316-40020i196711-197505

85330JAR ASSY, WINDSHIELD WASHER

main85330-40020i196711-197505

main85330-40030i197505-197702

main85330-40031i197702-197811

main85330-40040i197811-198209

85343HOSE, WINDSHIELD WASHER SUCTION

main85343-40020i196711-197505

85344TUBE, WINDSHIELD WASHER HOSE, STOP

main85344-30010×2i196711-197811

85345NOZZLE, WINDSHIELD WASHER

main85345-40021×2i196711-197605

main85345-40022i197605-198209

main85346-40010i197605-198209

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33224i196711-197505

main90099-33346i197811-198209

L=200

main90446-06001i197605-197811

L=1800

main90446-06280i197505-197605

85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)

main90099-33259i196711-197505

L=625

9161140616

main91611-40616

9354015010

main93540-15010

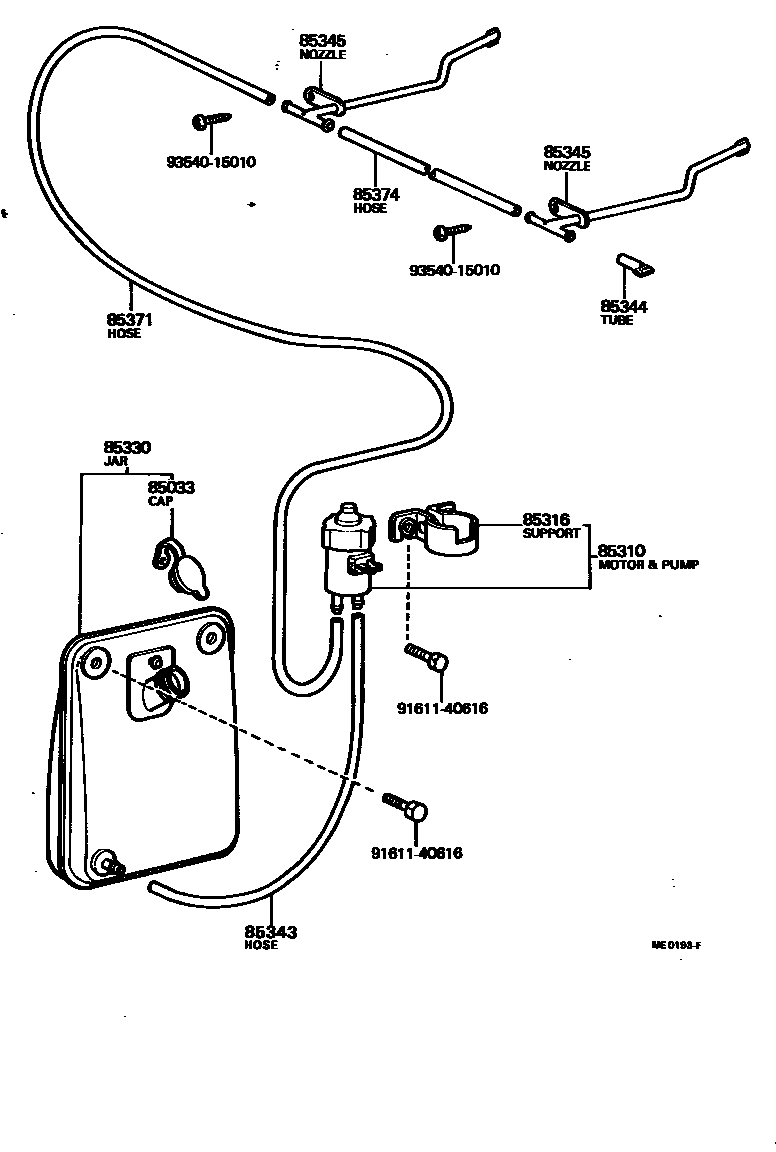

11 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota CENTURY

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CENTURY. Key components include: RADIATOR & WATER OUTLET, CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, SUPPORT, WINDSHIELD WASHER MOTOR, JAR ASSY, WINDSHIELD WASHER.
