Toyota CENTURY — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� �������� 0003 1��� 0004 1������������ 0005 1����� ����� 0006 1�� ����� ����� 0007 1������� 0008 1���� ��� 0009 1�� ��� 0010 1��� & ��� 0011 1��� & �������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60020iGRG75202310

89422ASENSOR, WATER TEMPERATURE

main89422-47010iGRG75202310

89467BSENSOR, AIR FUEL RATIO

main89467-40010iGRG75202310

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-40020iGRG75202310

89467DSENSOR, AIR FUEL RATIO, NO.3

main89467-40030iGRG75202310

89467ESENSOR, AIR FUEL RATIO, NO.4

main89467-40040iGRG75202310

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-40010iGRG75202310

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-40020iGRG75202310

89491SENSOR, ENGINE OIL LEVEL

main89491-48041iGRG75202310

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRG75202310

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

8272920040

main82729-20040

8946A40030BRACKET, EXHAUST SENSOR CLAMP

main8946A-40030

8946A40040BRACKET, EXHAUST SENSOR CLAMP

main8946A-40040

9046814044

main90468-14044

9046815007

main90468-15007

9155180830

main91551-80830

9167180612

main91671-80612

9167180616

main91671-80616

9415180600

main94151-80600

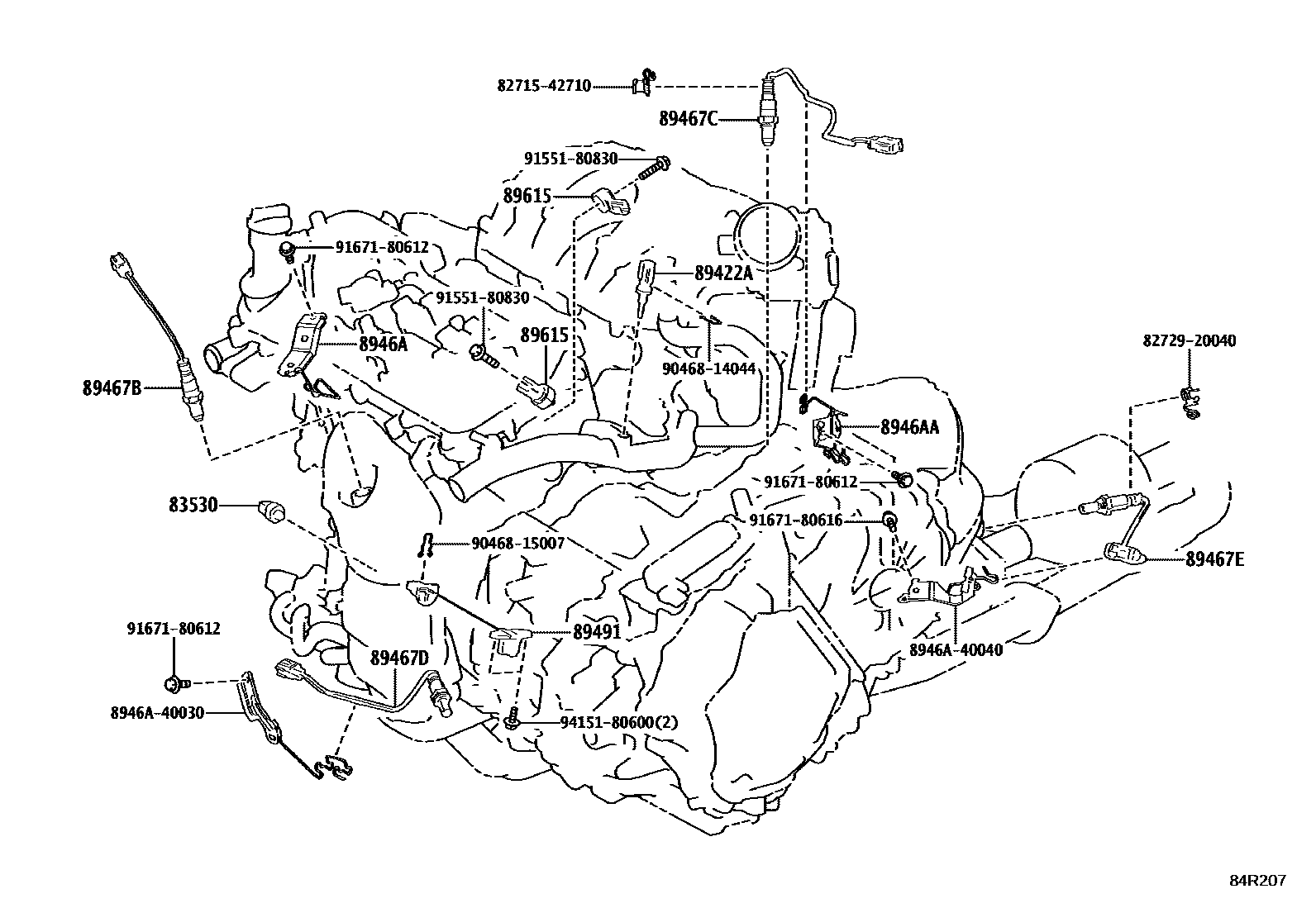

20 parts on this diagram · 11 diagrams in section
