Toyota CENTURY — SWITCH & RELAY & COMPUTER

0001 1����� 0002 1����� �-� 0003 1����� & �-������ ���� 0004 1����� & �-������ ���� 0005 1��� RH 0006 1��� LH & ���-� 0007 1���-� 0008 1������� ����� & ��� & ���-�� 0009 1��� RH 0010 1��� LH 0011 1�-� 0012 1�-� 0013 1���-� ����(���-�����-���� ��)0014 1������� & ������-����-� ���� 0015 1��-����� & �-�� ����

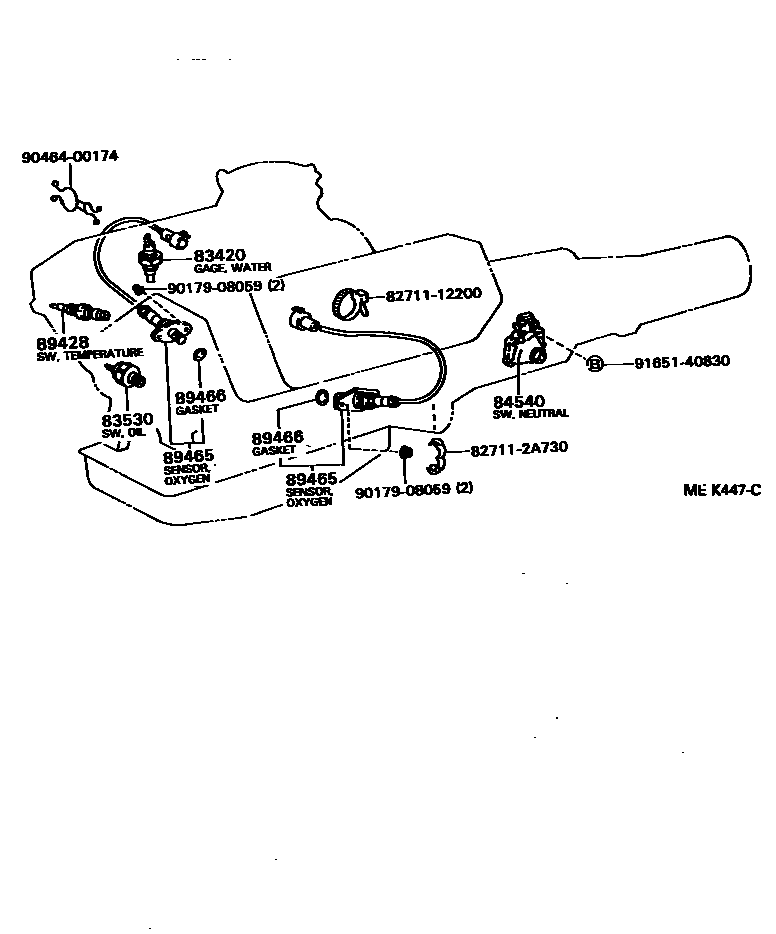

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iVG4#199212-199701

main83420-20020iVG4#198709-199212

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iVG4#198709-199212

sub83530-28030

main83530-14070iVG4#199212-199701

sub83530-28010

84540SWITCH ASSY, NEUTRAL START

main84540-30270iVG4#199212-199701

main84540-35040iVG4#198709-199212

sub84540-50010

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20100iVG45..4HC199212-199701

main89428-30090iVG45..4HC199009-199212

89465SENSOR, OXYGEN

main89465-49015×2iVG40198709-198908

main89465-49016×2iVG40198908-199009

main89465-49025×2iVG4#199009-199212

main89465-49035×2iVG4#199212-199701

89466GASKET, OXYGEN SENSOR

main89466-20020×2iVG4#199212-199701

main89466-30030×2iVG4#198908-199212

main89466-32010×2iVG40198709-198908

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A730

9017908059

main90179-08059

9046400174

main90464-00174

9165140830

main91651-40830

11 parts on this diagram · 15 diagrams in section
