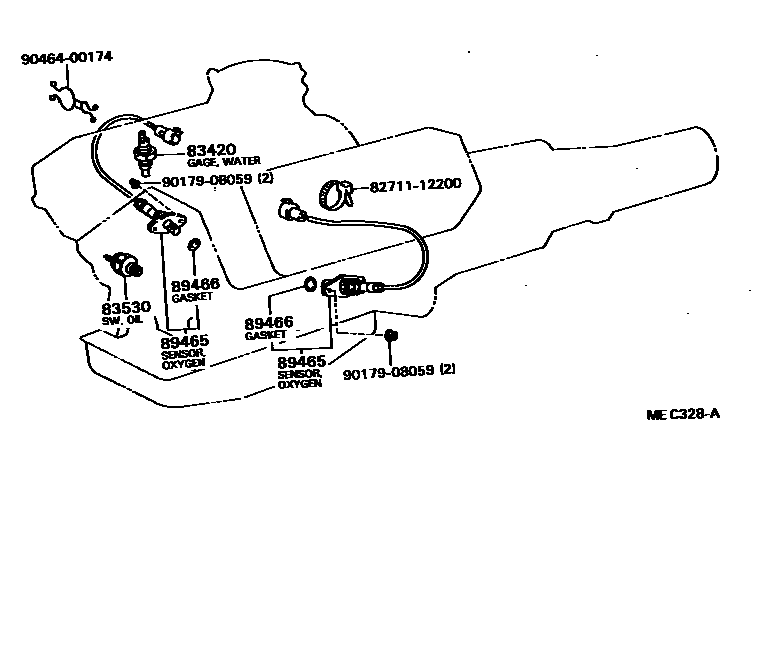

Toyota CENTURY — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iVG40198210-198308

main83420-20020iVG40198308-198709

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iVG40198210-198502

main83530-14030iVG40198502-198709

sub83530-28030

89465SENSOR, OXYGEN

main89465-49015×2iVG40198210-198709

89466GASKET, OXYGEN SENSOR

main89466-32010×2iVG40198210-198709

sub89466-30030

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017908059

main90179-08059

9046400174

main90464-00174

7 parts on this diagram · 9 diagrams in section
