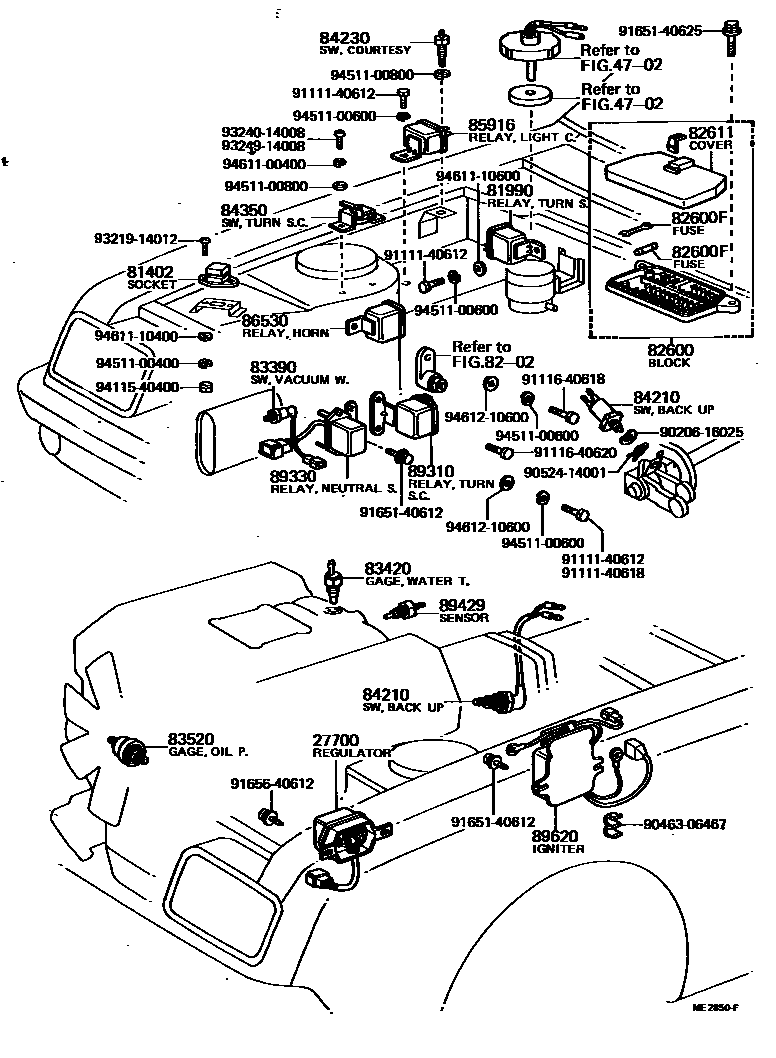

Toyota CENTURY — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

27700REGULATOR ASSY, GENERATOR

main27700-36010i4VU..VG21,30197507-197811

sub27700-36020

main27700-38100i4VEU..VG35197811-198209

sub27700-28030

main27700-51011i3V..VG20196711-197002

main27700-51012i3V,4V#..VG2#197002-197507

4702

81402SOCKET SUB-ASSY, INSPECTION LAMP, NO.1

main81420-35010iVG2#196711-197405

ENGINE ROOM

81990RELAY ASSY, TURN SIGNAL

main81990-40020iVG20196711-197302

RR COMBINATION LAMP

main81991-30010iVG20196911-197002

SIDE TURN SIGNAL LAMP

sub81991-30020

main81991-40010iVG2#197002-197505

SIDE TURN SIGNAL LAMP

8202

82600BLOCK ASSY, FUSE

main82600-40012iVG20196711-196811

main82600-40013iVG20196811-197109

main82600-40014iVG2#197109-197505

main82600-40015iVG21,30197505-197811

82600FFUSE, FUSE BLOCK

main90982-07001×2iVG20196808-196811

40A

main90982-07002×2iVG2#196711-197505

50A

main90982-07003iVG2#196803-197505

15A

main90982-07009×2iVG21,3#197505-198209

40A

main90982-09002×7iVG35197811-198209

main90982-09003×10iVG35197811-198209

main90982-09004×2iVG35197811-198209

main99118-62910×8iVG2#,30196711-197811

10A

main99118-62920×4iVG2#,30196711-197811

main99118-62930×3iVG2#,30196711-197811

30A

82611COVER, FUSE BLOCK

main82611-40012iVG20196711-196811

main82611-40013iVG2#196811-197505

main82611-40014iVG21,30197505-197811

main82611-40020iVG35197811-198209

83390SWITCH ASSY, VACUUM WARNING

main83390-40010iVG2#196711-197505

main83390-40020iVG21,30197505-197811

main83390-40030iVG35197811-198209

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12010iVG2#,3#196711-198209

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-30010iVG2#,3#196711-198209

84210SWITCH ASSY, BACK-UP LAMP

main84210-10040iVG21..B197303-197405

main84210-30021iVG20..B196711-197302

main84210-40010iVG20..A196711-196911

sub84210-20012

main84210-62020iVG20..A196911-197302

84230SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM)

main84231-20010iVG2#,3#196912-198209

sub84230-12080

main84231-30010iVG20196711-196912

84350SWITCH ASSY, TURN SIGNAL CANCELLING

main84350-40011iVG20196711-196902

main84350-40012iVG20196902-197209

main84350-40013iVG20197209-197302

85916RELAY, LIGHT CONTROL

main85916-12010iVG21,3#197507-198209

sub85916-35010

main85916-20010iVG21197303-197507

86530RELAY ASSY, HORN

main86530-30040iVG2#196711-197505

main86530-35010iVG21,3#197505-198209

sub86530-35020

89310RELAY ASSY, TURN SIGNAL CANCELLING

main89310-40011iVG20196711-197302

89330RELAY ASSY, NEUTRAL SAFETY

main89330-40010iVG2#..ATM196711-197505

main89330-40021iVG21,3#197505-198209

89429SENSOR, OIL TEMPERATURE

main83420-22011iVG21197303-197505

89620IGNITER ASSY

main89620-40010iVG21,30197405-197811

main89620-40020iVG35197811-198209

9020616025

main90206-16025

9046306467

main90463-06467

9052414001

main90524-14001

9111140612

main91111-40612

9111140618

main91111-40618

9111640618

main91116-40618

9111640620

main91116-40620

9165140612

main91651-40612

9165140625

main91651-40625

9165640612

main91656-40612

9321914012

main93219-14012

9324014008

main93240-14008

9324914008

main93249-14008

9411540400

main94115-40400

9451100400

main94511-00400

9451100600

main94511-00600

9451100800

main94511-00800

9461100400

main94611-00400

9461110400

main94611-10400

9461110600

main94611-10600

9461210600

main94612-10600

41 parts on this diagram · 11 diagrams in section
