Toyota CENTURY — REAR COMBINATION LAMP

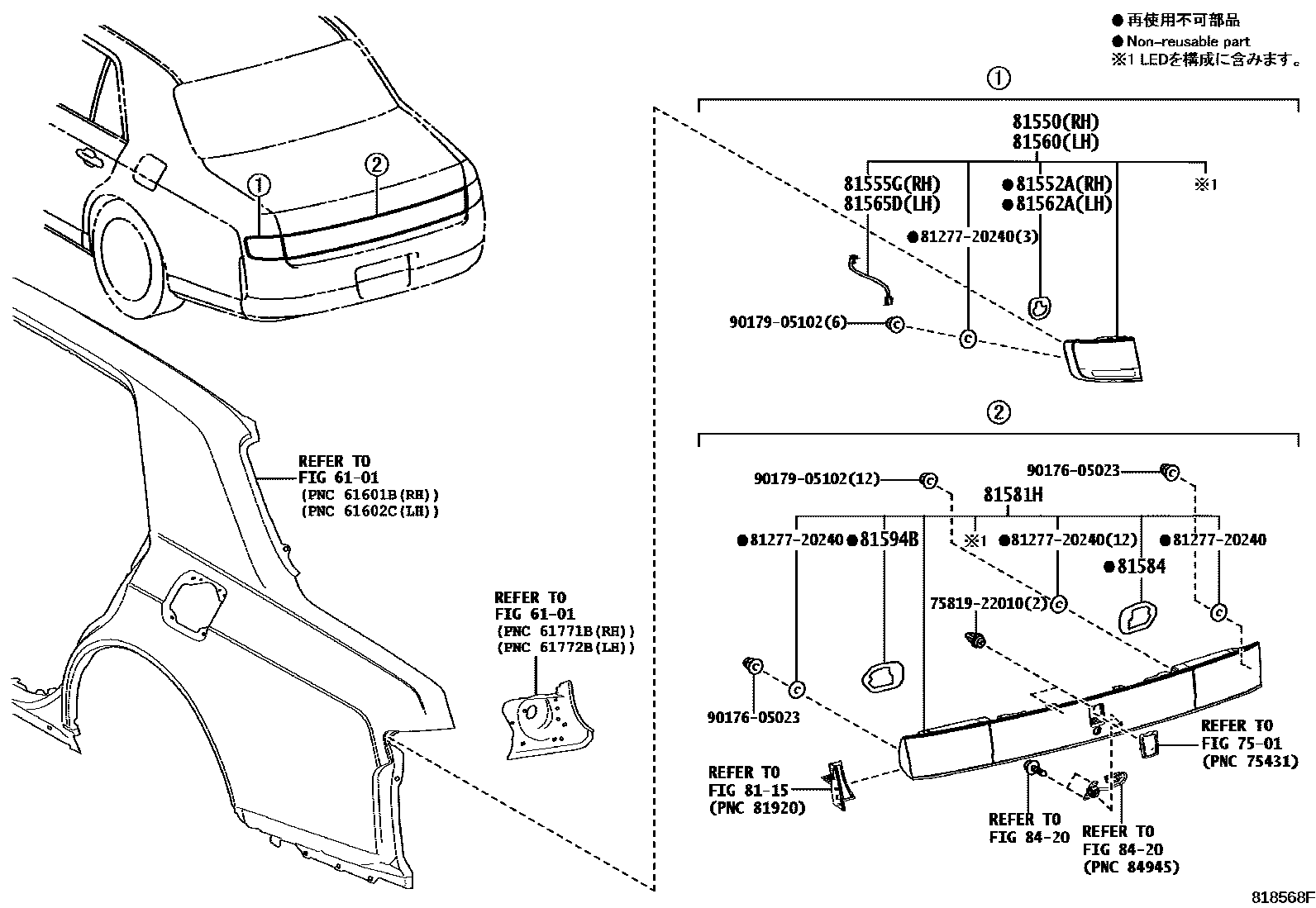

Parts diagram

6101SIDE MEMBER

→ Go to FIG 61-01

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8115REFLEX REFLECTOR

→ Go to FIG 81-15

81550LAMP ASSY, REAR COMBINATION, RH

main81550-40110supersedes 81550-40090i201806

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-40090i201806

81555GCORD, REAR COMBINATION LAMP, RH

main81555-40090i201806

81560LAMP ASSY, REAR COMBINATION, LH

main81560-40110supersedes 81560-40090i201806

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-40090i201806

81565DCORD, REAR COMBINATION LAMP, LH

main81565-40090i201806

81581HLENS & BODY, REAR LAMP

main81581-40190supersedes 81581-40180i201806

81584PACKING, REAR LAMP RH

main81582-40180i201806

81594BPACKING, REAR LAMP LH

main81584-40180i201806

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

7581922010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-22010

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

9017605023

main90176-05023

9017905102

main90179-05102

17 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota CENTURY

This section contains 17 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota CENTURY. Key components include: SIDE MEMBER, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR), REFLEX REFLECTOR, LAMP ASSY, REAR COMBINATION, RH, GASKET, REAR COMBINATION LAMP, RH.
