Toyota CENTURY — PRE-COLLISION SYSTEM

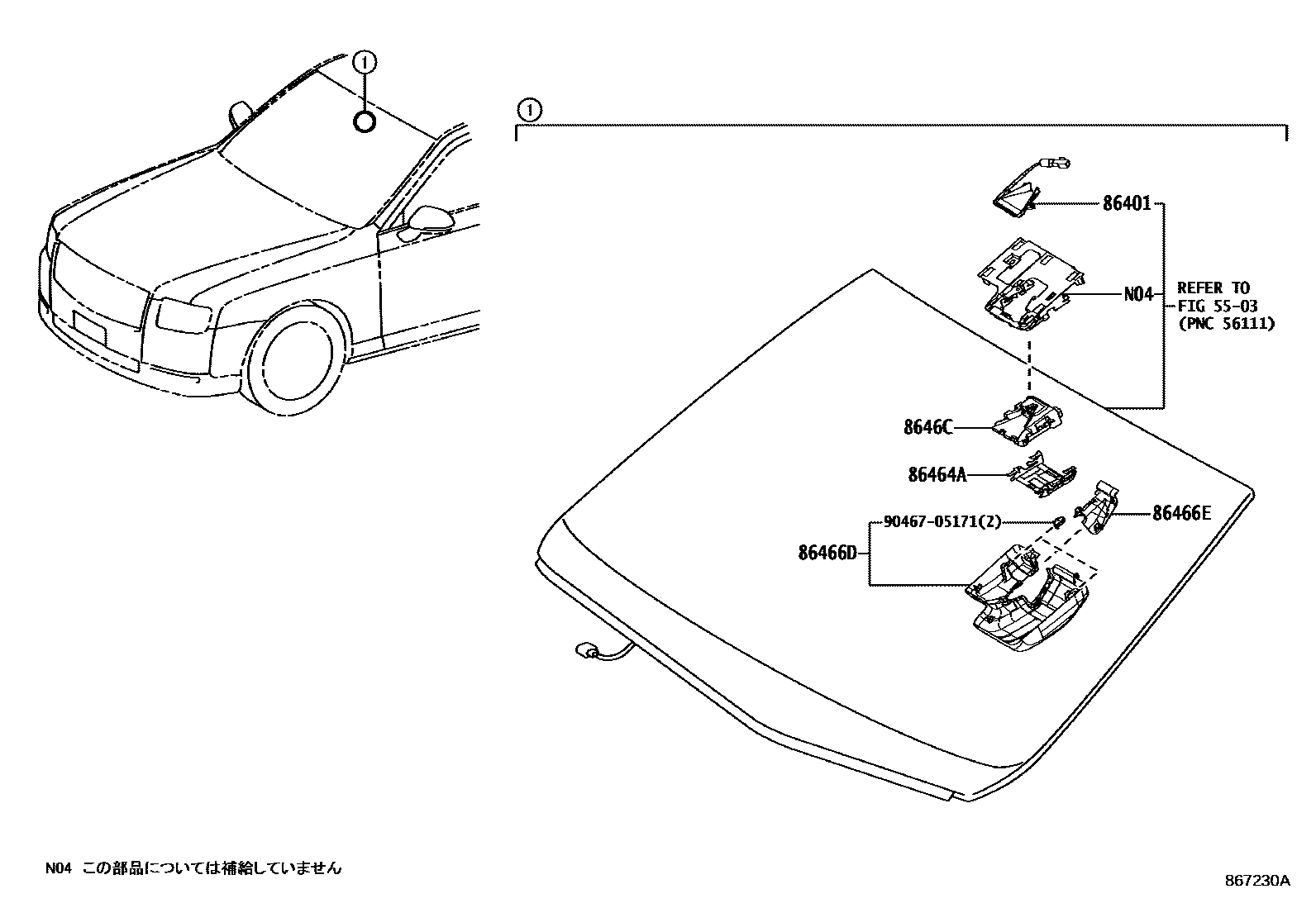

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-40010i201806

86464ALATCH, FORWARD RECOGNITION

main86464-48011i201806

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-40010i201806

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-40020i201806

8646CCAMERA, FORWARD RECOGNITION

main8646C-40010i201806-202105

main8646C-40011i202105

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota CENTURY

This section contains 7 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota CENTURY. Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
