Toyota CENTURY — MOUNTING

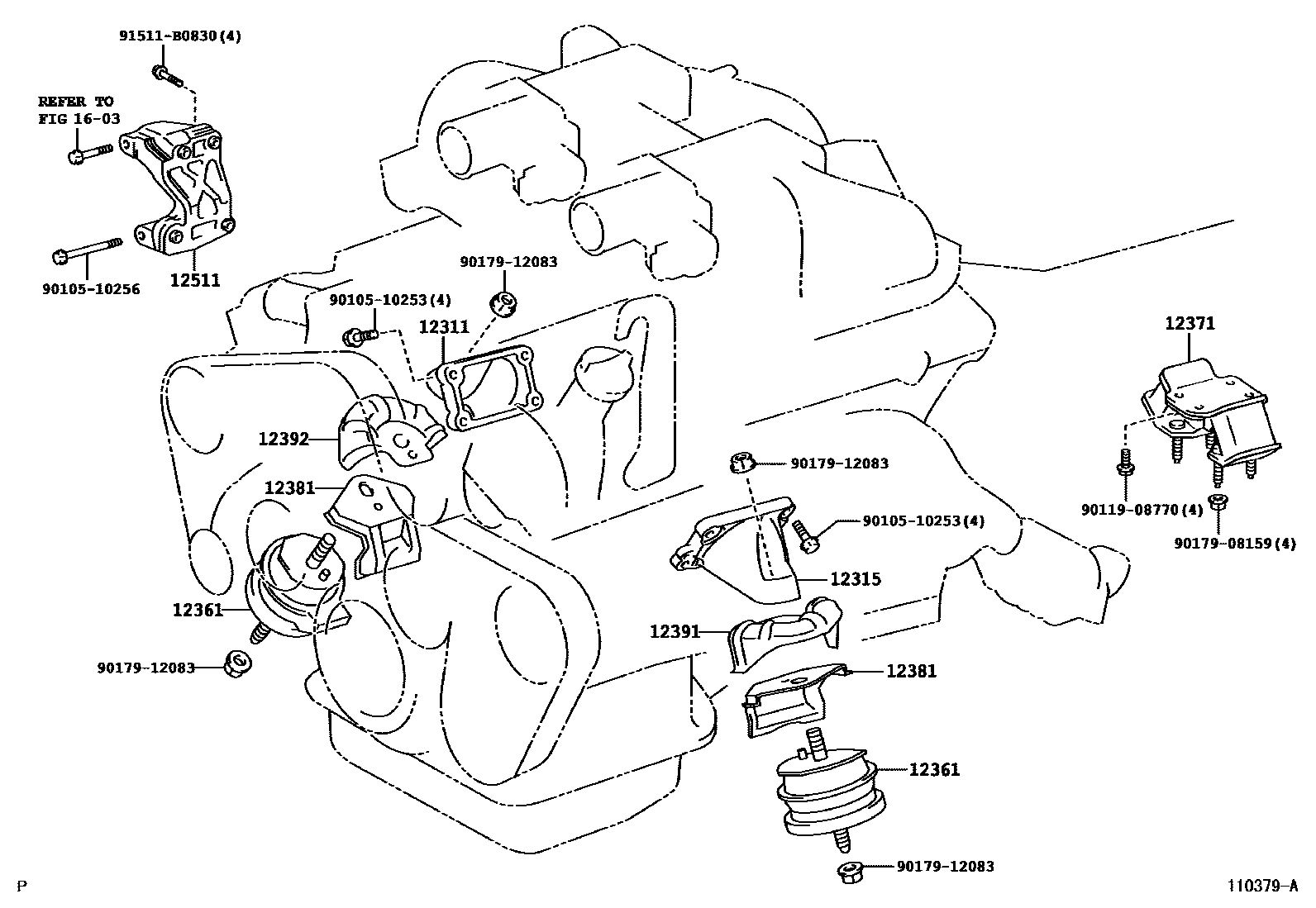

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-50040i199704-200501

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-50030i199704-200501

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-32020×2i199704-200501

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-32030i199704-200501

12381STABILIZER, ENGINE MOUNTING

main12381-32010×2i199704-200501

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-50020i199704-200501

12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH

main12391-50020i199704-200501

12511BRACKET, ALTERNATOR, NO.1

main12511-32010i199704-200501

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9010510253

main90105-10253

9010510256

main90105-10256

9011908770

main90119-08770

9017908159

main90179-08159

9017912083

main90179-12083

91511B0830

main91511-B0830

15 parts on this diagram · 1 diagram in section

MOUNTING for Toyota CENTURY

This section contains 15 genuine Toyota parts for the MOUNTING system of the Toyota CENTURY. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
