Toyota CENTURY — MIRROR

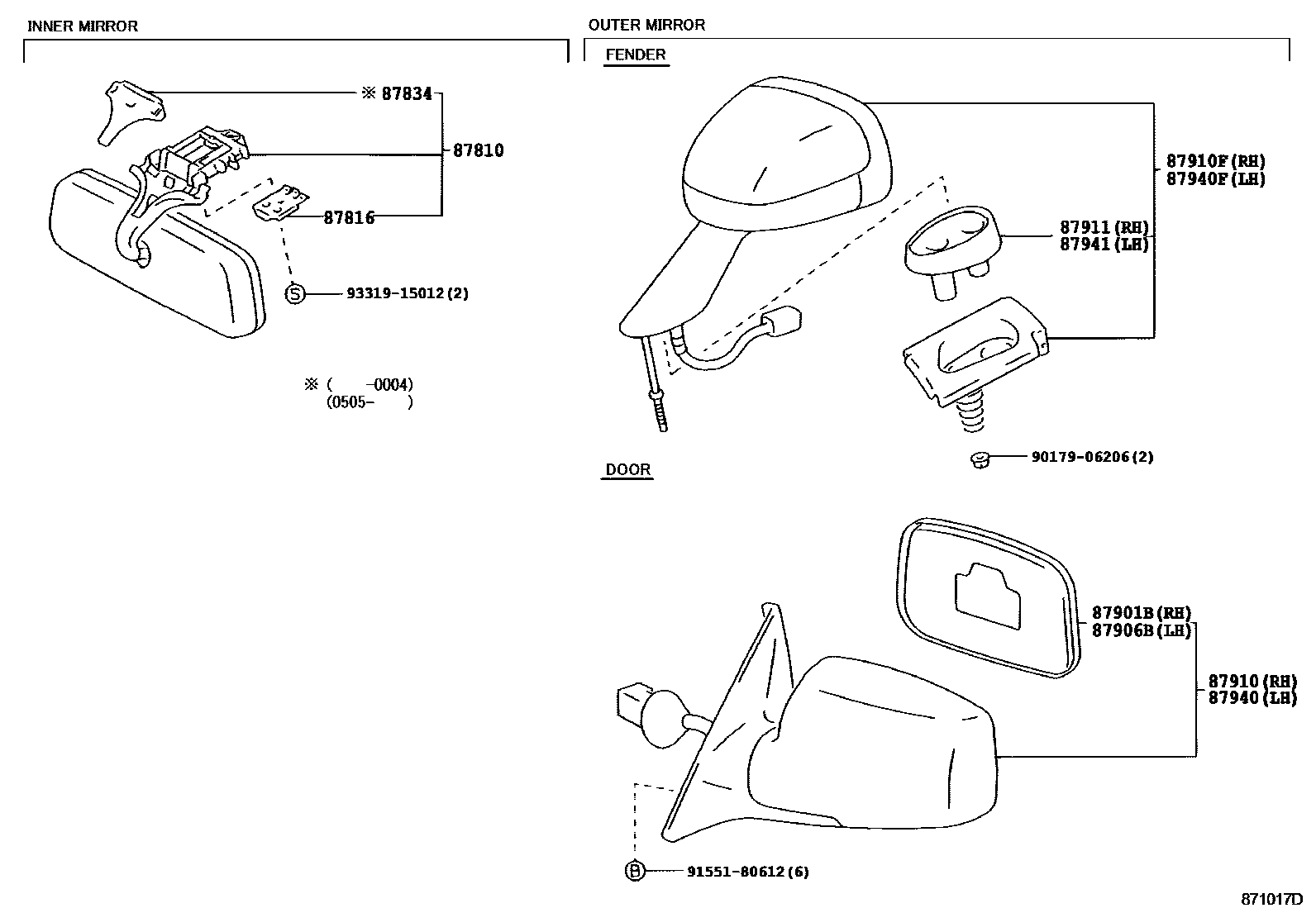

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-40060-B0i200501-200504
LT.GRAY,TRIM1#
main87810-40060-B1i200501-200504
BLUE GRAY,TRIM8#
main87810-40060-E0i200004-200501
ORCHID,TRIM4#
main87810-40080-B0i200505-201701
LT.GRAY,TRIM1#
main87810-40080-B1i200505-201701
BLUE GRAY,TRIM8#
main87810-40080-E0i200505-201701
ORCHID,TRIM4#
main87810-50071-B0i199704-199708
BLUE GRAY,TRIM8#
main87810-50071-B1i199704-199708
LT.GRAY,TRIM1#
main87810-50071-E0i199704-199708
ORCHID,TRIM4#
main87810-50100-B0i199708-200004
BLUE GRAY,TRIM8#
main87810-50100-B1i199708-200004
LT.GRAY,TRIM1#
main87810-50100-E0i199708-200004
ORCHID,TRIM4#
87816SPRING, INNER REAR VIEW MIRROR
main74372-30030i200501
main74372-50010i199704-199708
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-50020-B0i199704-200004
BLUE GRAY,TRIM8#
main87834-50020-B1i200505-201701
LT.GRAY,TRIM1#
main87834-50020-E0i199704-200004
ORCHID,TRIM4#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-40060i199704-200501
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87961-40060i200501
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-40060-B0i199704-200501
GRAY ME.MS.,1B6
main87910-40060-B1i200501
SILVER ME.,1C0
main87910-40060-C0i200501
BLACK,202
main87910-40060-G0i199704-200501
DK.GREEN MC.P.I.O.,6N9
main87910-40060-J0i200501
BLUE MC.,8J9
main87910-40060-J1i199704-200501
LT.GRAYISH BLUE M.M.,8M3
87910FMIRROR ASSY, FENDER, RH
main87910-40050-B0i200501-201305
GRAY ME.MS.,1B6
main87910-40050-B1i200501-201305
SILVER ME.,1C0
main87910-40050-C0i199704-200501
BLACK,202
main87910-40050-G0i199704-200501
DK.GREEN MC.P.I.O.,6N9
main87910-40050-J0i199704-200501
BLUE MC.,8J9
main87910-40050-J1i199704-200501
LT.GRAYISH BLUE M.M.MS.,8M3
main87910-40100-B0i201305-201701
GRAY ME.MS.,1B6
main87910-40100-B1i201305-201701
SILVER ME.,1C0
main87910-40100-C0i201305-201701
BLACK,202
main87910-40100-J0i201305-201701
BLUE MC.,8J9
main87910-40100-J1i201305-201701
LT.GRAYISH BLUE M.M.MS.,8M3
87911GASKET, OUTER REAR VIEW MIRROR, RH
main87911-40020-B0i199704-200501
GRAY ME.MS.,1B6
main87911-40020-B1i200501-201701
SILVER ME.,1C0
main87911-40020-C0i200501-201701
BLACK,202
main87911-40020-G0i199704-200501
DK.GREEN MC.P.I.O.,6N9
main87911-40020-J0i199704-200501
BLUE MC.,8J9
main87911-40020-J1i200501-201701
LT.GRAYISH BLUE M.M.MS.,8M3
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-40060-B0i199704-200501
GRAY ME.MS.,1B6
main87940-40060-B1i200501
SILVER ME.,1C0
main87940-40060-C0i199704-200501
BLACK,202
main87940-40060-G0i199704-200501
DK.GREEN MC.P.I.O.,6N9
main87940-40060-J0i200501
BLUE MC.,8J9
main87940-40060-J1i199704-200501
LT.GRAYISH BLUE M.M.MS.,8M3
87940FMIRROR ASSY, FENDER, LH
main87940-40050-B0i199704-200501
GRAY ME.MS.,1B6
main87940-40050-B1i200501-201305
SILVER ME.,1C0
main87940-40050-C0i200501-201305
BLACK,202
main87940-40050-G0i199704-200501
DK.GREEN MC.P.I.O.,6N9
main87940-40050-J0i199704-200501
BLUE MC.,8J9
main87940-40050-J1i199704-200501
LT.GRAYISH BLUE M.M.MS.,8M3
main87940-40100-B0i201305-201701
GRAY ME.MS.,1B6
main87940-40100-B1i201305-201701
SILVER ME.,1C0
main87940-40100-C0i201305-201701
BLACK,202
main87940-40100-J0i201305-201701
BLUE MC.,8J9
main87940-40100-J1i201305-201701
LT.GRAYISH BLUE M.M.MS.,8M3
87941GASKET, OUTER REAR VIEW MIRROR, LH
main87941-40020-B0i199704-200501
GRAY ME.MS.,1B6
main87941-40020-B1i200501-201701
SILVER ME.,1C0
main87941-40020-C0i199704-200501
BLACK,202
main87941-40020-G0i199704-200501
DK.GREEN MC.P.I.O.,6N9
main87941-40020-J0i199704-200501
BLUE MC.,8J9
main87941-40020-J1i200501-201701
LT.GRAYISH BLUE M.M.MS.,8M3
9017906206
main90179-06206
9155180612
main91551-80612
9331915012
main93319-15012

14 parts on this diagram · 1 diagram in section

MIRROR for Toyota CENTURY

This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota CENTURY. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
