Toyota CENTURY — MIRROR

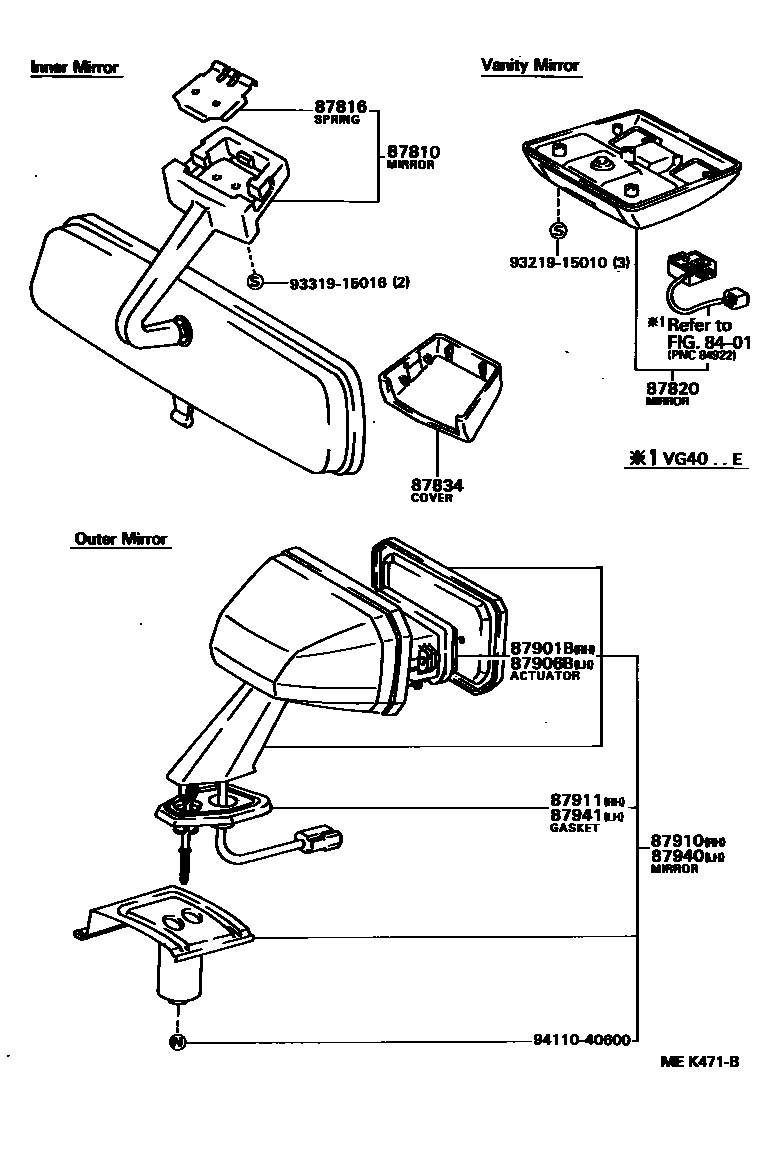

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87810MIRROR ASSY, INNER REAR VIEW

main87810-30190-13i198709-199212

GRAY,TRIM1#; GRAY,TRIM1#,2#

main87810-30190-34i198709-199701

BLUE,TRIM8#

main87810-30190-35i198709-199212

BEIGE,TRIM3#

main87810-30190-E0i199212-199701

SABLE,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198709-199701

87820MIRROR ASSY, VANITY

main87820-40010i199212-199701

main87820-40010-05i198709-199212

BEIGE,TRIM3#

main87820-40010-13i199009-199212

main87820-40010-14i198910-199009

main87820-40020-06i198910-199009

main87820-40020-13i198910-199009

main87820-40020-14i198910-199009

main87820-40020-E0i199212-199701

main87820-40030-B0i199212-199701

main87820-40030-E0i199212-199701

main87820-40030-J0i199212-199701

main87820-40040-B0i199212-199701

main87820-40040-E0i199212-199701

main87820-40040-J0i199212-199701

main87820-40050-B0i199212-199701

main87820-40050-E0i199212-199701

main87820-40050-J0i199212-199701

main87820-40060-B0i199212-199701

main87820-40060-J0i199212-199701

main87820-91401-03i199009-199212

main87820-91401-04i199009-199212

main87820-91401-06i199009-199212

main87820-91402-03i199009-199212

main87820-91402-04i199009-199212

main87820-91402-06i199009-199212

main87820-91403-03i199009-199212

main87820-91403-04i199001-199009

main87820-91403-06i199009-199212

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-30010-13i198709-199212

GRAY,TRIM1#; GRAY,TRIM1#,2#

main87834-30010-15i198709-199212

BEIGE,TRIM3#

main87834-30010-24i198709-199701

BLUE,TRIM8#

main87834-30010-E1i199212-199701

SABLE,TRIM4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-40010-C0i199212-199701

GRAY METALLIC,197 ,198 ,8J9

main87901-40010-C1i199212-199701

BLACK,202 ,4M8

main87908-40010i198709-199212

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-40020-C0i199212-199701

GRAY METALLIC,197 ,198 ,8J9

main87906-40020-C1i199212-199701

BLACK,202 ,4M8

main87908-40010i198709-199212

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-40040-C0i199212-199701

GRAY METALLIC,197 ,198 ,8J9

main87910-40040-C1i199212-199701

BLACK,202 ,4M8

main87910-91404-01i198709-199212

BLACK,202

main87910-91404-03i198709-199212

GRAY METALLIC,044 ,171 ,3H6 ,8E7

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-40011i198709-199701

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-40040-C0i199212-199701

GRAY METALLIC,197 ,198 ,8J9

main87940-40040-C1i199212-199701

BLACK,202 ,4M8

main87940-91402-01i198709-199212

BLACK,202

main87940-91402-03i198709-199212

GRAY METALLIC,044 ,171 ,3H6 ,8E7

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-40011i198709-199701

9321915010

main93219-15010

9331915016

main93319-15016

9411040600

main94110-40600

14 parts on this diagram · 2 diagrams in section

MIRROR for Toyota CENTURY

This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota CENTURY. Key components include: SWITCH & RELAY & COMPUTER, MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, MIRROR ASSY, VANITY, COVER, INNER REAR VIEW MIRROR STAY HOLDER.
