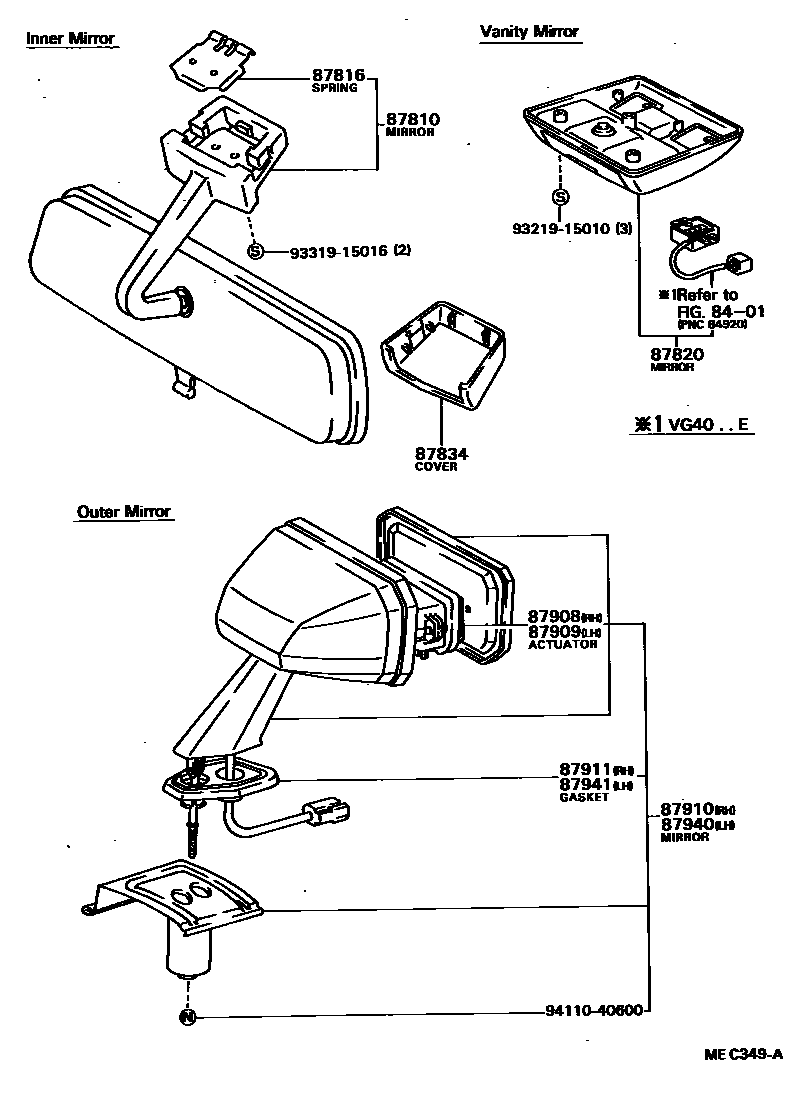

Toyota CENTURY — MIRROR

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87810MIRROR ASSY, INNER REAR VIEW

main87810-30190-03i198210-198709

GRAY,GRAY,TRIM1#

main87810-30190-08i198210-198709

IVORY,IVORY,TRIM4#

main87810-30190-14i198210-198709

BLUE,BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198210-198709

87820MIRROR ASSY, VANITY

main87820-40010-03i198508-198709

GRAY,GRAY,TRIM1#

main87820-40010-04i198508-198709

BLUE,LIGHT BLUE,TRIM8#

main87820-40010-08i198508-198709

IVORY,IVORY,TRIM4#

main87820-40020-03i198508-198709

GRAY,GRAY,TRIM1#

main87820-40020-04i198508-198709

BLUE,LIGHT BLUE,TRIM8#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-04i198210-198508

BLUE,BLUE,TRIM8#

main87834-20080-08i198210-198508

IVORY,IVORY,TRIM4#

main87834-20080-23i198210-198508

GRAY,GRAY,TRIM1#

main87834-30010-03i198508-198709

GRAY,GRAY,TRIM1#

main87834-30010-08i198508-198709

IVORY,IVORY,TRIM4#

main87834-30010-14i198508-198709

BLUE,LIGHT BLUE,TRIM8#

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-40010i198210-198709

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87908-40010i198210-198709

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-49035i198210-198709

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-40011i198210-198709

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-49035i198210-198709

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-40011i198210-198709

9321915010

main93219-15010

9331915016

main93319-15016

9411040600

main94110-40600

14 parts on this diagram · 1 diagram in section

MIRROR for Toyota CENTURY

This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota CENTURY. Key components include: SWITCH & RELAY & COMPUTER, MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, MIRROR ASSY, VANITY, COVER, INNER REAR VIEW MIRROR STAY HOLDER.
