Toyota CENTURY — METER
8302INDICATOR
83100BBULB, COMBINATION METER, NO.1
83101SOCKET SUB-ASSY, COMBINATION METER BULB
83116BRACKET, SPEEDOMETER
83121COUNTER, TOTAL
83131DIAL, METER, NO.1
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83134COVER, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83247PLATE, METER CIRCUIT
83291COMPUTER, COMBINATION METER
83970BUZZER ASSY, REVERSE WARNING
9009932132
main90099-32132
9009932133
main90099-32133
9338616025
main93386-16025

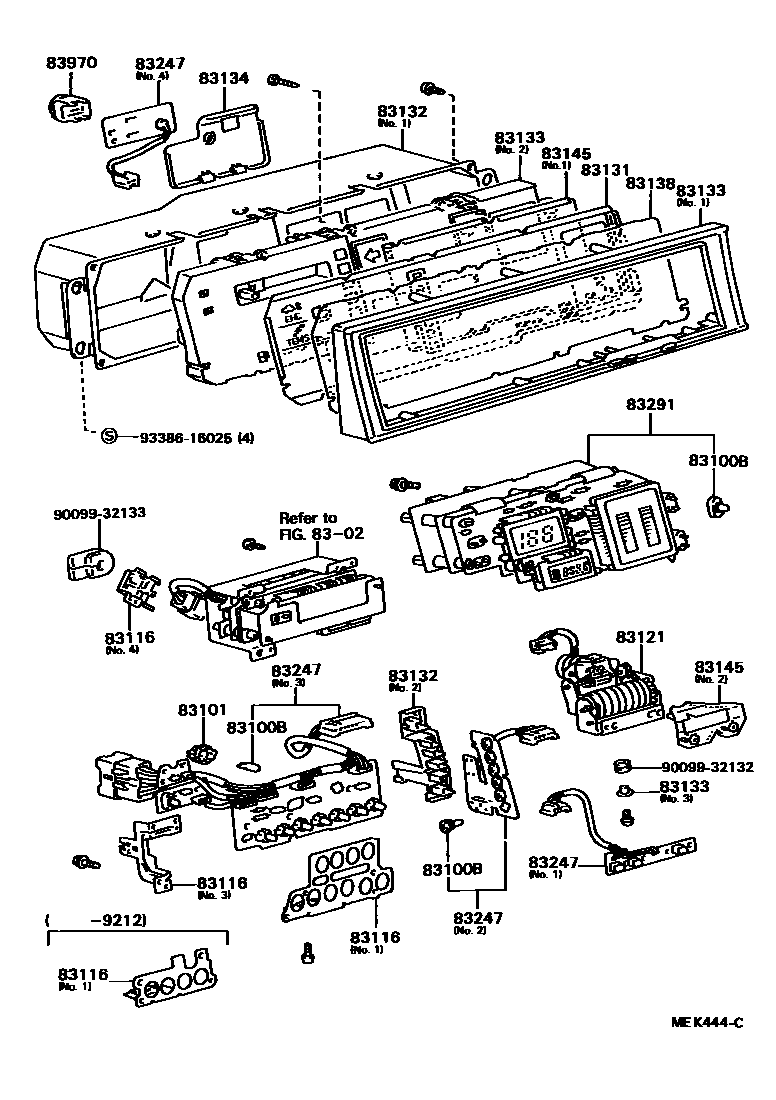

17 parts on this diagram · 2 diagrams in section
METER for Toyota CENTURY
This section contains 20 genuine Toyota parts for the METER system of the Toyota CENTURY. Key components include: INDICATOR, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, BRACKET, SPEEDOMETER, COUNTER, TOTAL.
