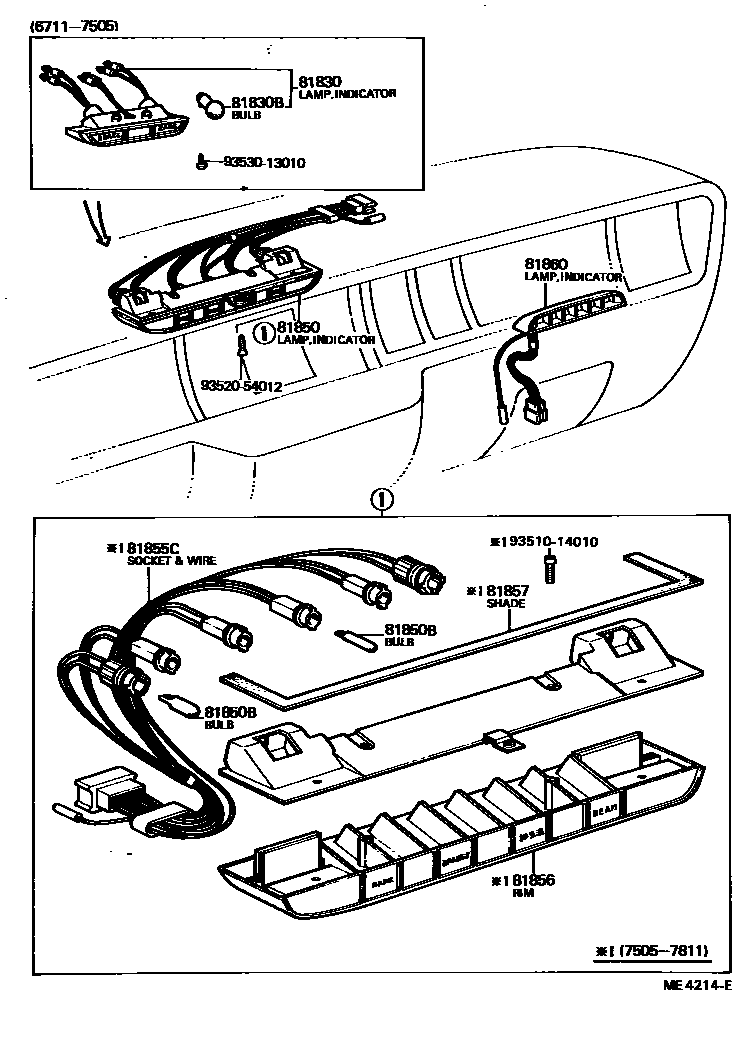

Toyota CENTURY — INDICATOR

81830LAMP ASSY, UPPER BEAM INDICATOR

main81830-40011i196711-197505

81830BBULB, UPPER BEAM INDICATOR LAMP

main99132-11034×2i197009-197505

12V 3.4W

main99132-13030×2i196711-197009

12V 3W

81850LAMP ASSY, INDICATOR

main81850-40020i197505-197811

main81850-40021i197811-198209

81850BBULB, INDICATOR LAMP

main90981-11018×5i197505-198209

main99132-12034×2i197505-198209

81855CSOCKET & WIRE, INDICATOR LAMP

main81855-40020i197505-197811

81856RIM, INDICATOR LAMP

main81856-40020i197505-197811

81857SHADE, INDICATOR LAMP

main81857-40010i197505-197811

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-40015i196711-198209

9351014010

main93510-14010

9352054012

main93520-54012

9353013010

main93530-13010

11 parts on this diagram · 1 diagram in section

INDICATOR for Toyota CENTURY

This section contains 11 genuine Toyota parts for the INDICATOR system of the Toyota CENTURY. Key components include: LAMP ASSY, UPPER BEAM INDICATOR, BULB, UPPER BEAM INDICATOR LAMP, LAMP ASSY, INDICATOR, BULB, INDICATOR LAMP, SOCKET & WIRE, INDICATOR LAMP.
