Toyota CENTURY — HEV CONTROL COMPUTER

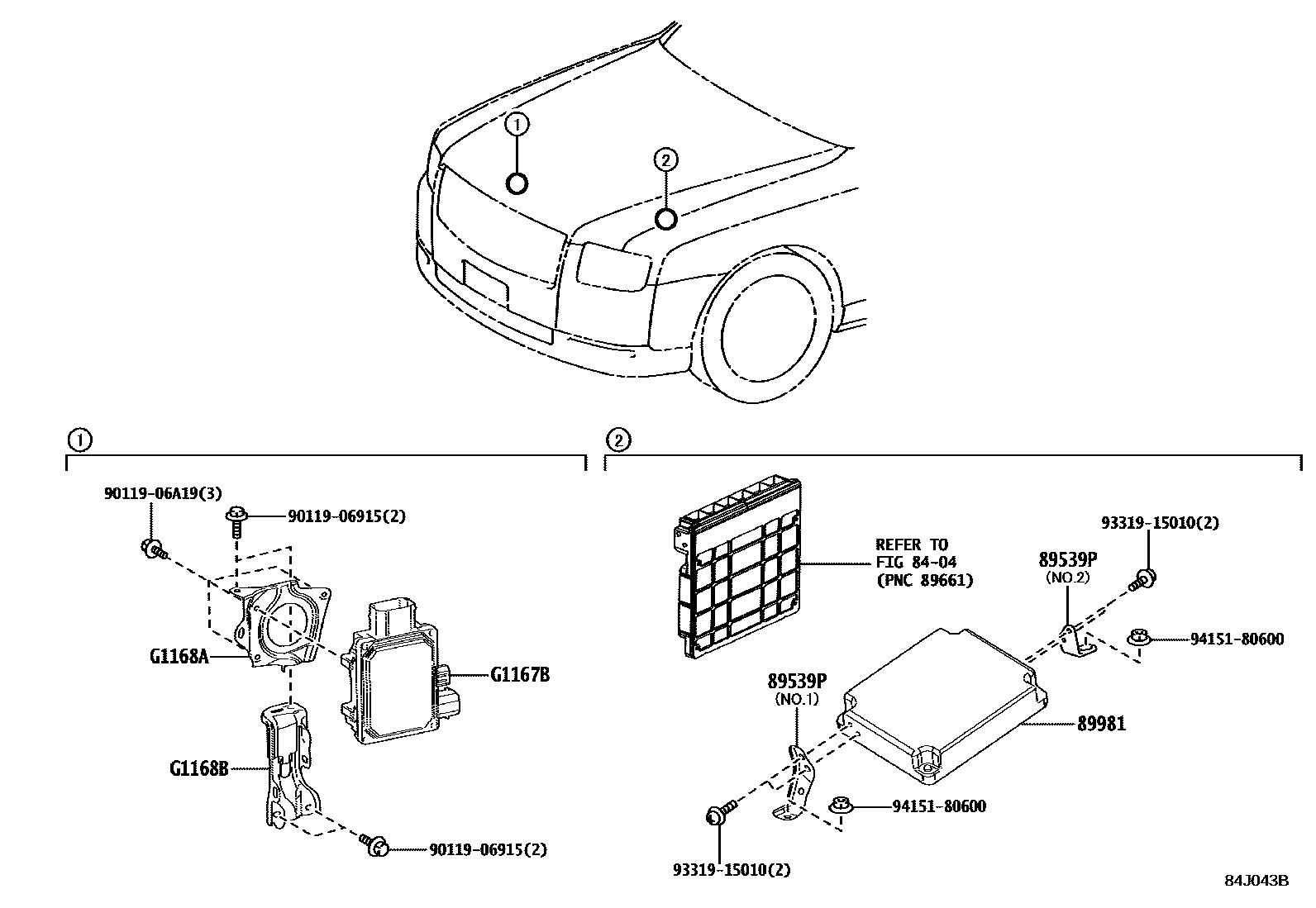

Parts diagram

8404

89539PBRACKET, COMPUTER

main89539-50040i201806

main89539-50050i201806

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-40010i201806-201910

main89981-40020i201910-202105

main89981-40050i202105

G1167BCONTROLLER, OIL PUMP MOTOR

mainG116750011i201806

G1168ABRACKET, OIL PUMP MOTOR CONTROLLER

mainG116850020i201806

G1168BBRACKET, OIL PUMP MOTOR CONTROLLER, NO.2

mainG116850010i201806

9011906915

main90119-06915

9011906A19

main90119-06A19

9331915010

main93319-15010

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
