Toyota CENTURY — FRONT SPRING & SHOCK ABSORBER

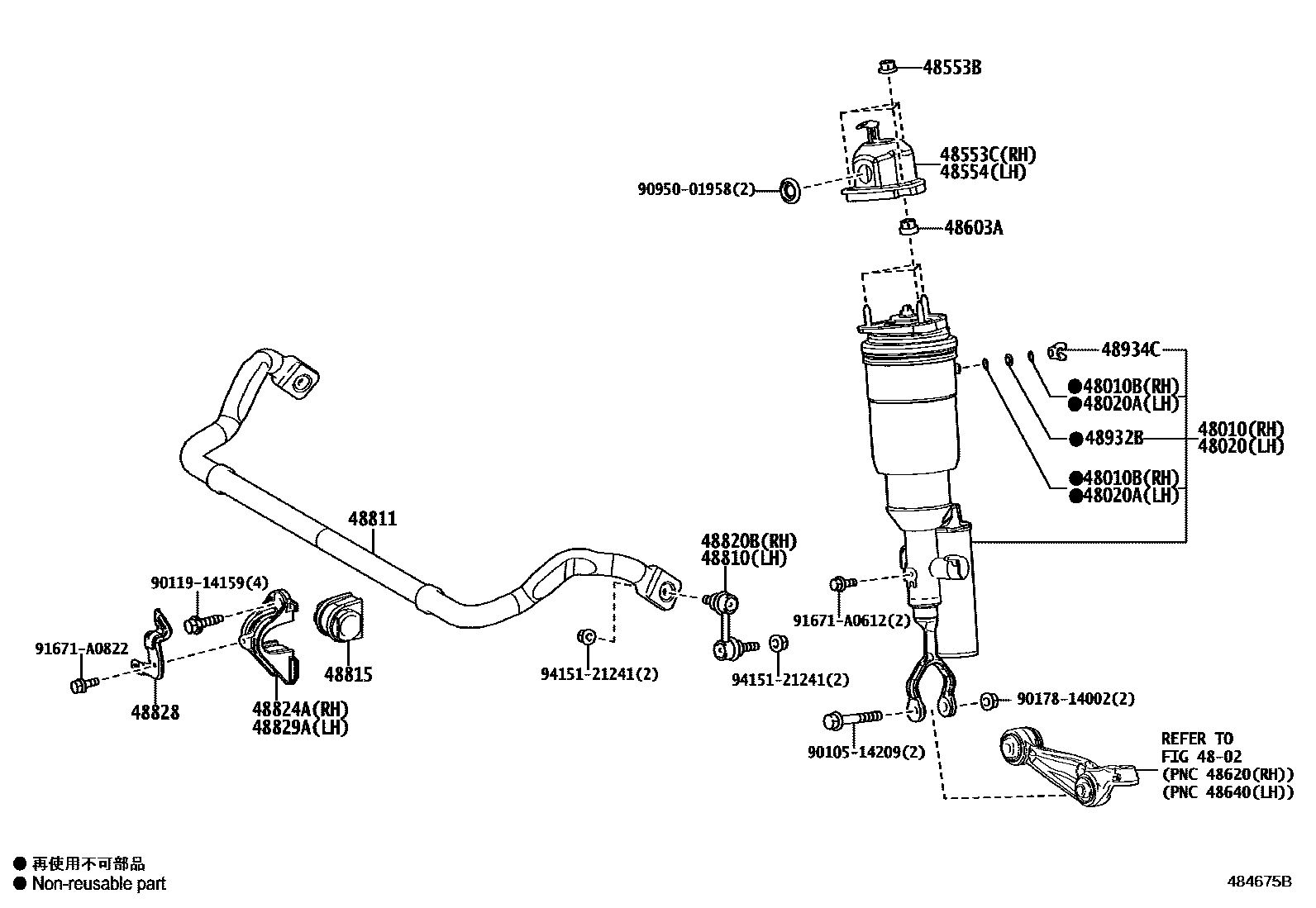

Parts diagram

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-40090i201806

48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)

main90301-04011×2i201806

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48020-40090i201806

48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)

main90301-04011×2i201806

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174×6i201806

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-50120i201806

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-50120i201806

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6i201806

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50020i201806

48811BAR, STABILIZER, FRONT

main48811-50150i201806

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-40080×2i201806

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50030i201806

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-40040i201806

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48827-50010i201806

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-40010i201806

48932BPLATE, HEIGHT CONTROL TUBE

main48932-30010×2i201806

48934CCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2i201806

9010514209

main90105-14209

9011914159

main90119-14159

9017814002

main90178-14002

9095001958

main90950-01958

91671A0612

main91671-A0612

91671A0822

main91671-A0822

9415121241

main94151-21241

25 parts on this diagram · 1 diagram in section

FRONT SPRING & SHOCK ABSORBER for Toyota CENTURY

This section contains 25 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota CENTURY. Key components include: CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER, RING, O(FOR FRONT PNEUMATIC CYLINDER RH), FRONT AXLE ARM & STEERING KNUCKLE, CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER, RING, O(FOR FRONT PNEUMATIC CYLINDER LH).
