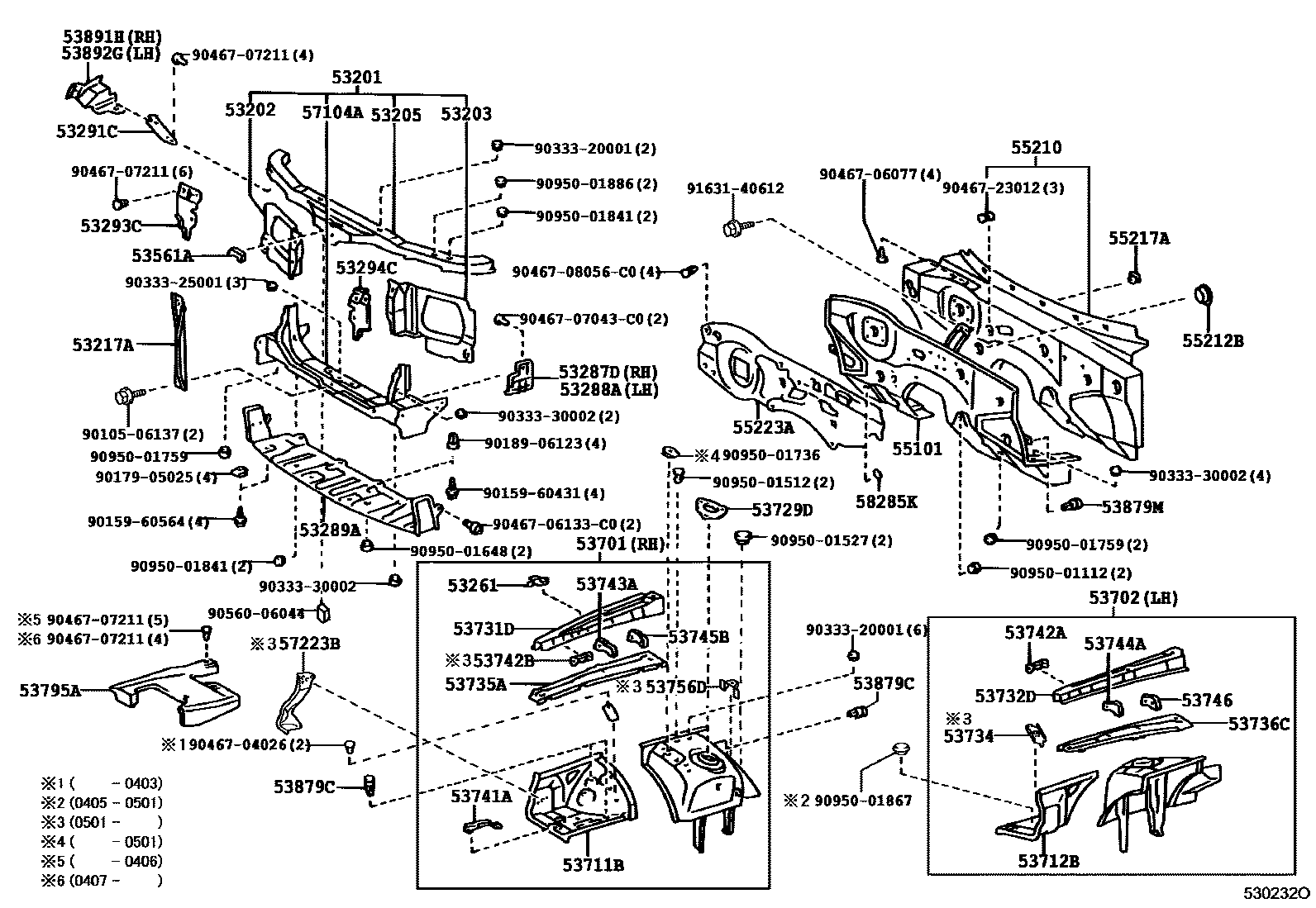

Toyota CENTURY — FRONT FENDER APRON & DASH PANEL

Parts diagram

53201SUPPORT SUB-ASSY, RADIATOR

main53201-40010i199704-200501

main53201-40030i200301-200404

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-40010i199704-200501

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-40010i199704-200501

main53203-40020i200301-200404

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-40010i199704-200501

main53205-40030i200301-200404

53217ABRACE, HOOD LOCK SUPPORT

main53217-40010i200501

53261BRACKET, RADIATOR RESERVE TANK MOUNTING

main53261-40010i199704-200501

53287DDUCT, COOL AIR INTAKE

main53287-40010i199704-200501

53288ADUCT, COOL AIR INTAKE

main53288-40010i199704-200501

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-40010i199704-200501

main53289-40020i200501-200712

main53289-40021i200801

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-40010×2i199704-200501

main53291-40011×2i200501

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-40010i199704-200501

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-40010i199704-200501

53561AGUIDE, HOOD AUXILIARY CATCH HOOK

main53561-30010i199704-200501

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-40050i199704-200501

main53701-40070i200301-200501

main53701-40080i200501-201008

main53701-40081i201008

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-40020i199704-200501

main53702-40040i200301-200501

main53702-40050i200501-201008

main53702-40051i201008

53711BAPRON, FRONT FENDER, FRONT RH

main53711-40020i199704-200501

main53711-40040i200501

53712BAPRON, FRONT FENDER, FRONT LH

main53712-40010i199704-200501

main53712-40040i200301-200501

53729DREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-40020×2i199704-199810

main53729-40021×2i200501

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-40020i199704-200501

main53731-40040i200501-201008

main53731-40041i201008

main53731-40050i200301-200501

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-40020i199704-200501

main53732-40021i201008

53734PATCH, FRONT FENDER APRON, NO.4

main53734-40030i200501

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-40020i199704-200501

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-40020i199704-200501

53741APLATE, FENDER APRON REINFORCE, RH

main53741-50020i199704-200501

53742APLATE, FRONT FENDER APRON REINFORCEMENT

main53742-40010i199704-200501

53742BPLATE, FENDER APRON REINFORCE, LH

main53742-40010i200501

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-40010i199704-200501

53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-40010i199704-200501

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-40010i199704-200501

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-40010i199704-200501

53756DBRACKET, BRAKE ACTUATOR MOUNTING

main53756-40010i200501

53795ACOVER, ENGINE ROOM, SIDE

main53795-40010i199704-200406

main53795-40030i200407-200501

main53795-40040i200501

53879CRETAINER, FRONT FENDER LINER

main53879-50010×6i199704-200501

53879MRETAINER, FRONT FENDER LINER

main53879-50010×2i199704-200501

53891HSEAL, FRONT FENDER SPLASH SHIELD, FRONT RH

main53891-40020i199704-200501

53892GSEAL, FRONT FENDER SPLASH SHIELD, FRONT LH

main53892-40020i200501

55101PANEL SUB-ASSY, DASH

main55101-40020i200501-201701

main55101-40030i199704-200501

main55101-40050i200301-200501

main55101-40070i200301-200501

55210INSULATOR ASSY, DASH PANEL

main55210-40010i199704-200501

55212BCOVER, DASH PANEL INSULATOR, NO.2

main55212-40010i200501

main55212-40020i200501

55217ARETAINER, DASH PANEL SILENCER

main55217-50020×5i199704-200501

55223AINSULATOR, DASH PANEL, OUTER

main55223-40010i200501

main55223-40040i200301-200501

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-40010i199704-200501

57223BBRACKET, FRONT MOUNTING

main57223-40010i200501

58285KCOVER, DASH PANEL HOLE

main58285-50010i199704-200501

9010506137

main90105-06137

9015960431

main90159-60431

9015960564

main90159-60564

9017905025

main90179-05025

9018906123

main90189-06123

9033320001

main90333-20001

9033325001

main90333-25001

9033330002

main90333-30002

9046704026

main90467-04026

9046706077

main90467-06077

9046706133C0

main90467-06133C0

9046707043C0

main90467-07043C0

9046707211

main90467-07211

9046708056C0

main90467-08056C0

9046723012

main90467-23012

9056006044

main90560-06044

9095001112

main90950-01112

9095001512

main90950-01512

9095001527

main90950-01527

9095001648

main90950-01648

9095001736

main90950-01736

9095001759

main90950-01759

9095001841

main90950-01841

9095001867

main90950-01867

9095001886

main90950-01886

9163140612

main91631-40612

70 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota CENTURY

This section contains 70 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CENTURY. Key components include: SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, BRACE, HOOD LOCK SUPPORT.
